Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 5 bolts to the battery tray.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Install the battery.

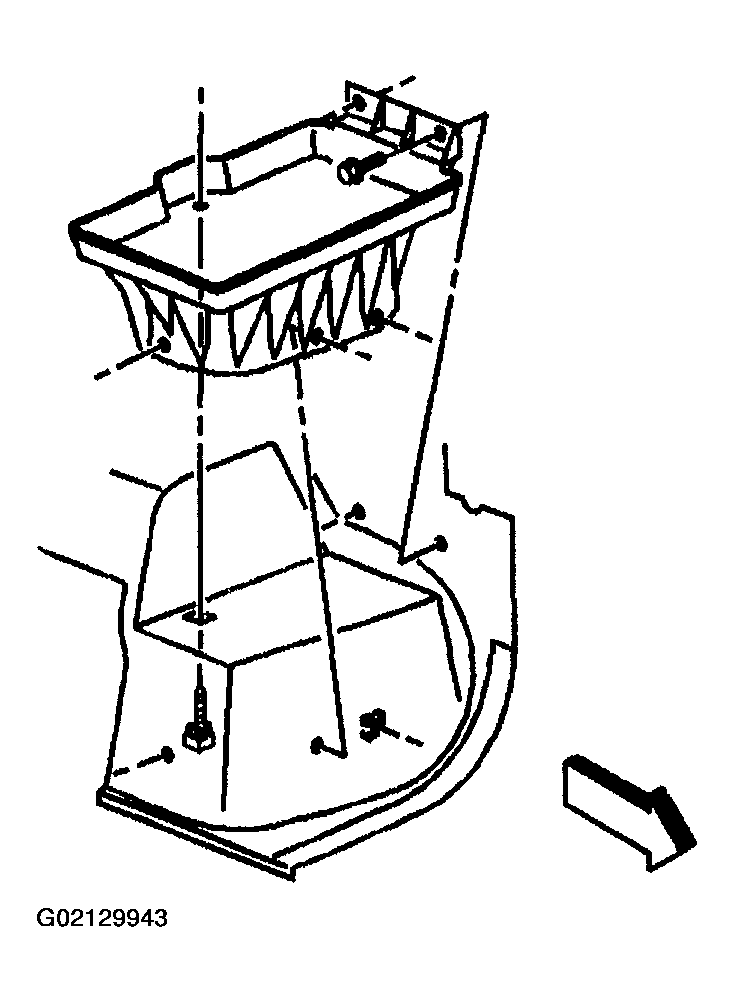

    Fig 1: Installing Battery Tray
    G02129943Courtesy of GENERAL MOTORS CORP.
