Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

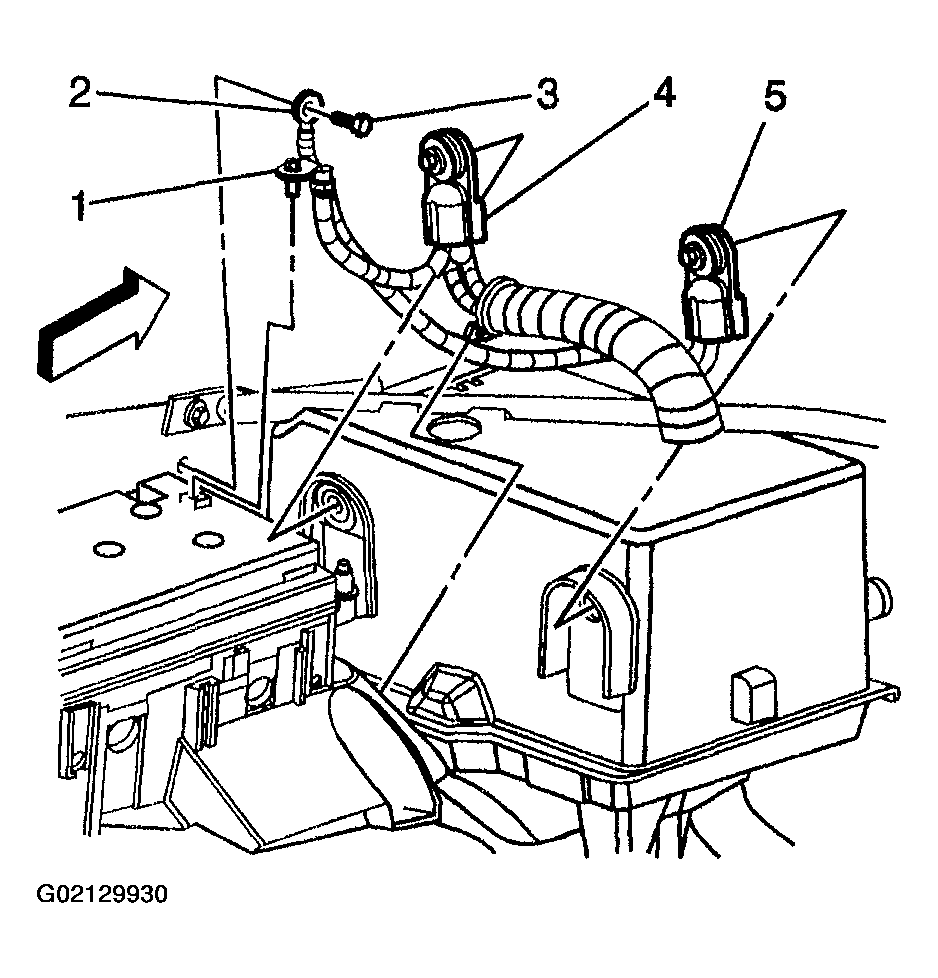

Disconnect the negative battery cable (4). Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Loosen the positive battery cable bolt.
Remove the positive battery cable (5) from the battery.

Fig 1: Removing Positive Battery Cable From Battery
Courtesy of GENERAL MOTORS CORP.

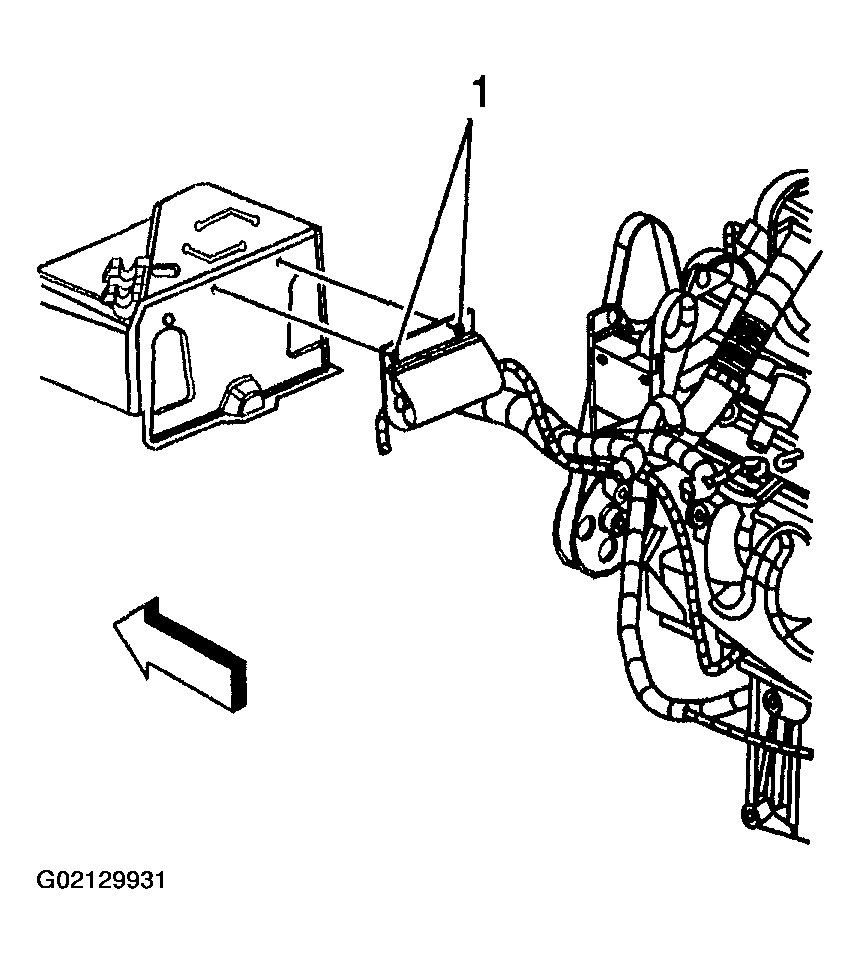

Remove the coolant heater cord retainers (1) from the battery cover, if equipped.

Fig 2: Removing Coolant Heater Cord Retainers From Battery Cover
Courtesy of GENERAL MOTORS CORP.

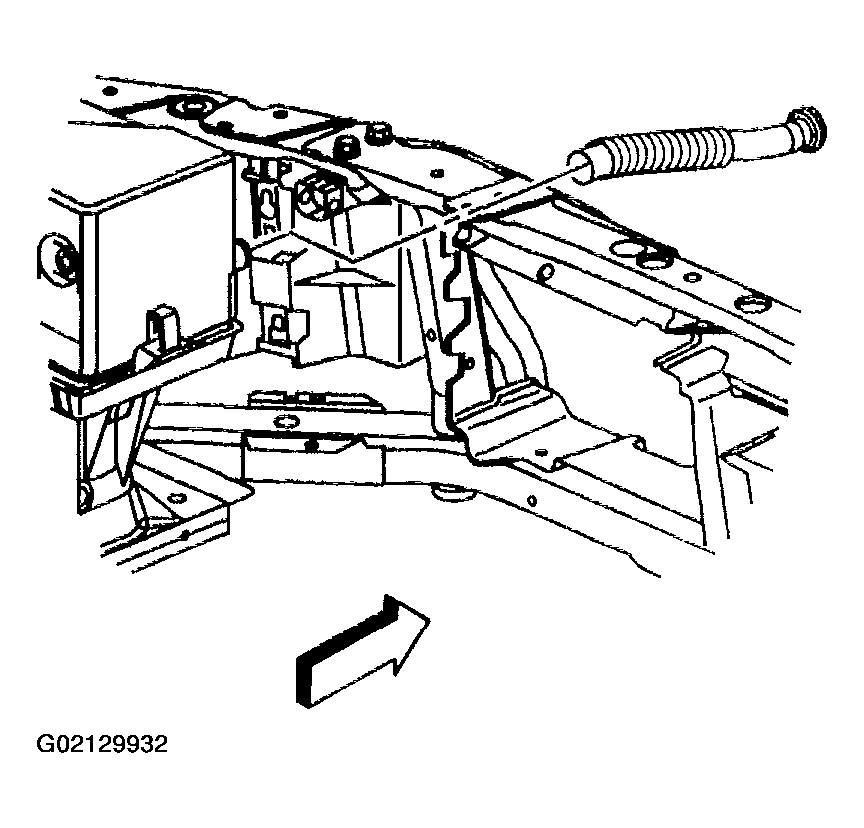

Remove the battery air duct from the battery cover.

Fig 3: Removing Battery Air Duct From Battery Cover
Courtesy of GENERAL MOTORS CORP.

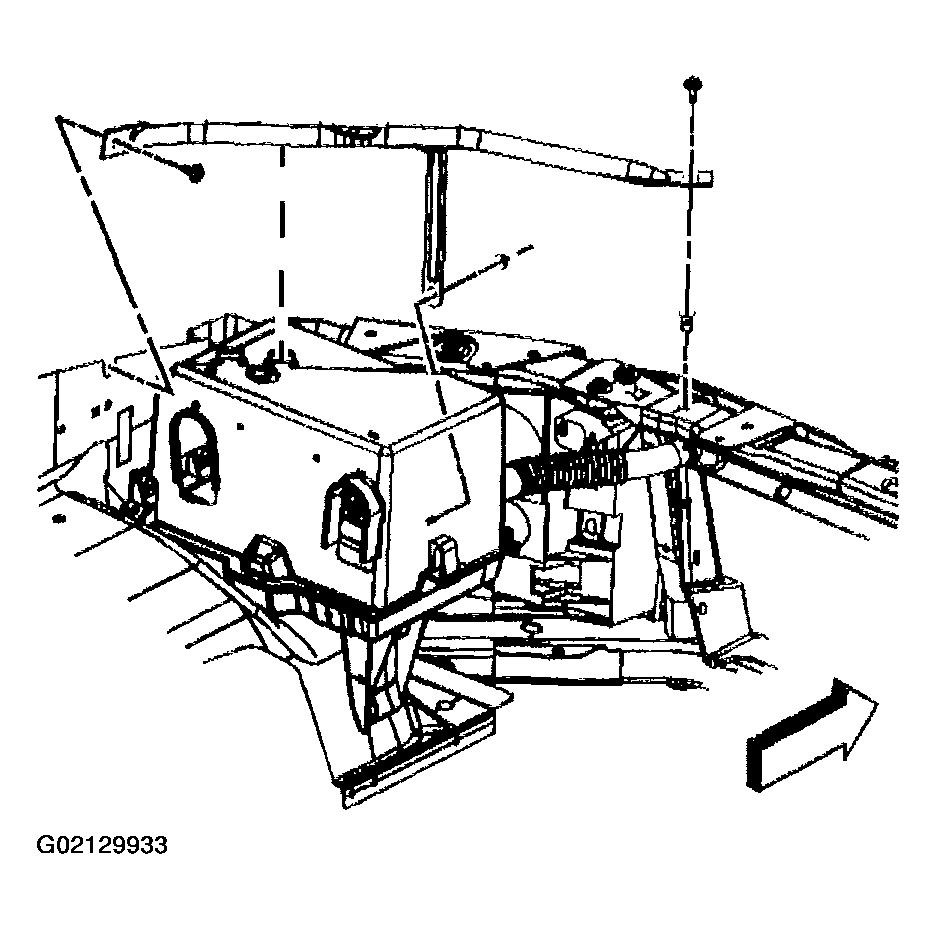

Remove the battery tray brace bolts/nut.

Fig 4: Removing Battery Tray Brace Bolts/Nut
Courtesy of GENERAL MOTORS CORP.

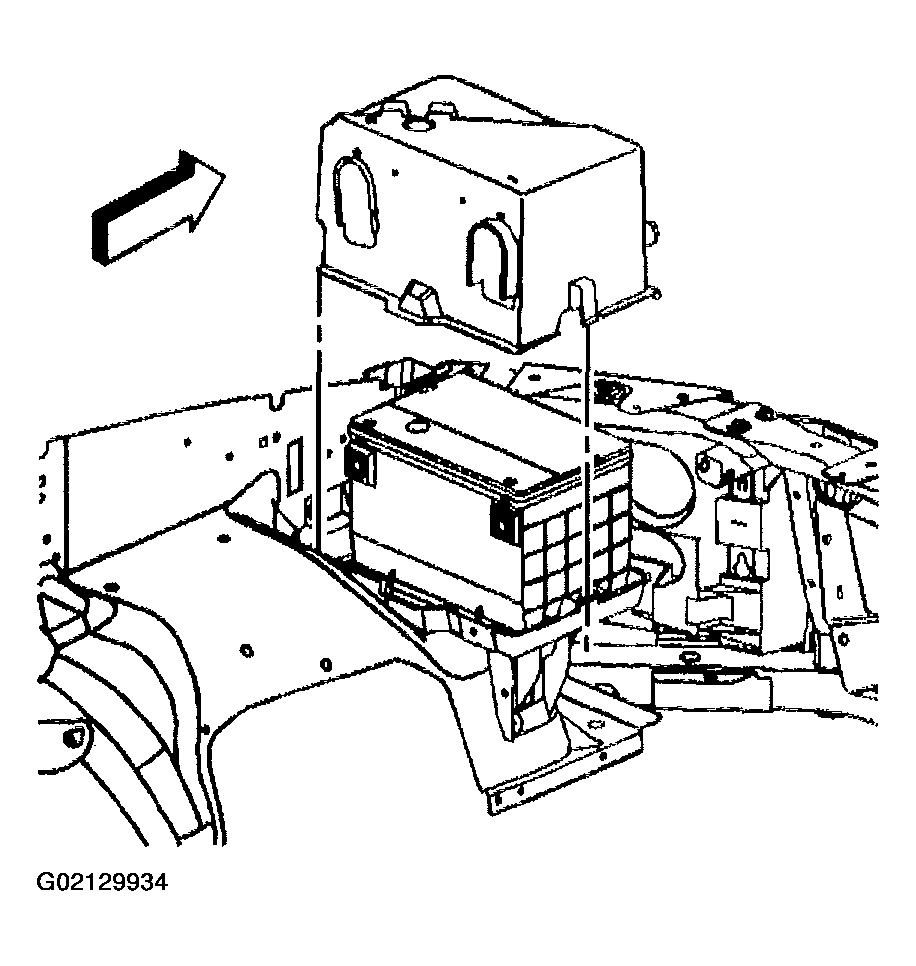

Remove the battery cover.

Fig 5: Removing Battery Cover
Courtesy of GENERAL MOTORS CORP.

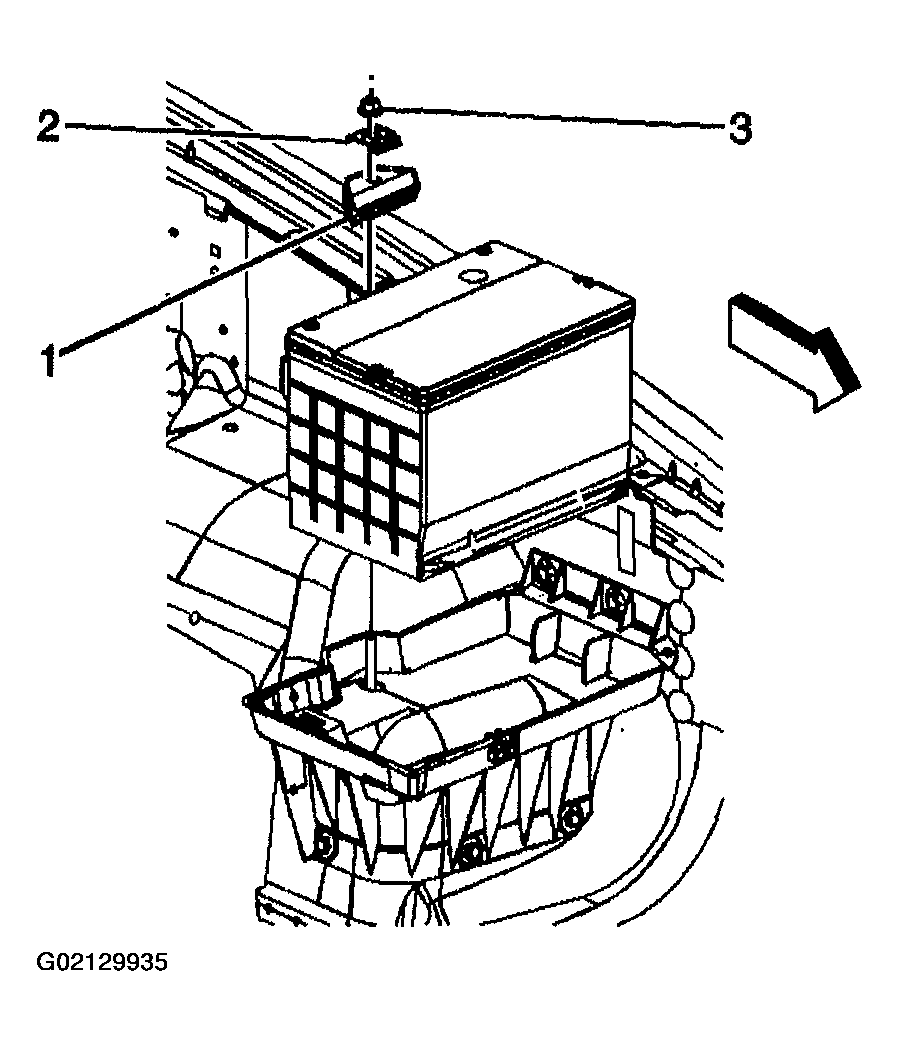

Remove the battery hold down nut (3), retainer (1), and washer.
Remove the battery.

Fig 6: Removing Battery
Courtesy of GENERAL MOTORS CORP.
