Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable (5). Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE   .
  2. Disconnect the positive battery cable (4).
  3. Loosen the positive terminal bolt (1) that secures the harness to the junction block.

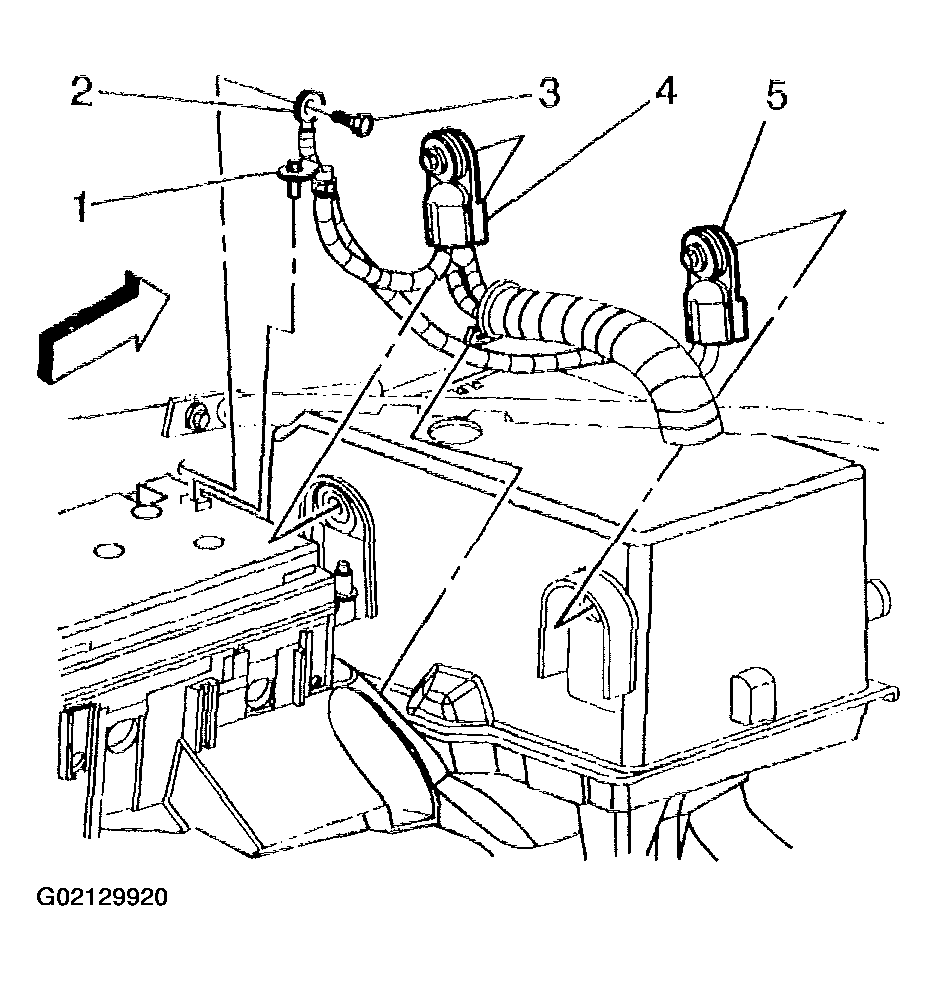

    Fig 1: Disconnecting Positive Battery Cable
    G02129920Courtesy of GENERAL MOTORS CORP.
  4. Reposition the generator cable boot (1).
  5. Remove the generator cable nut (2)
  6. Remove the generator cable lead (3).
  7. Open the clips on the retaining brackets.

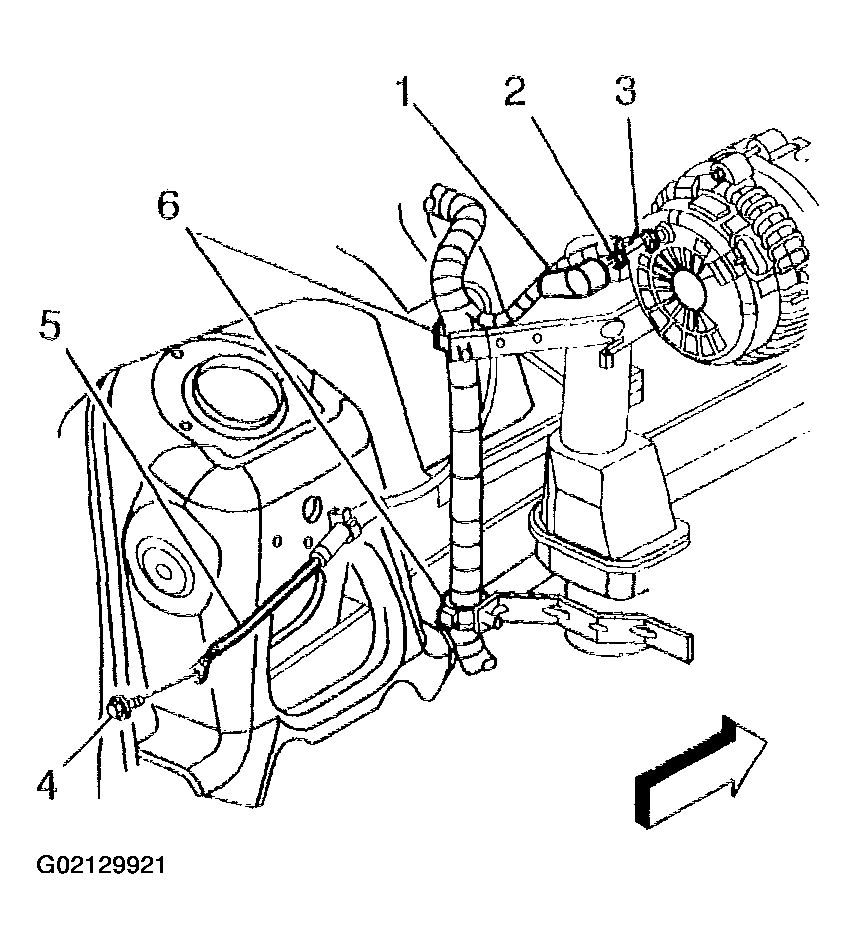

    Fig 2: Removing Generator Cable Lead, Nut & Boot
    G02129921Courtesy of GENERAL MOTORS CORP.
  8. Remove the battery cable channel bolt.
  9. Remove the battery cable channel.
  10. Remove the battery cable from the channel.

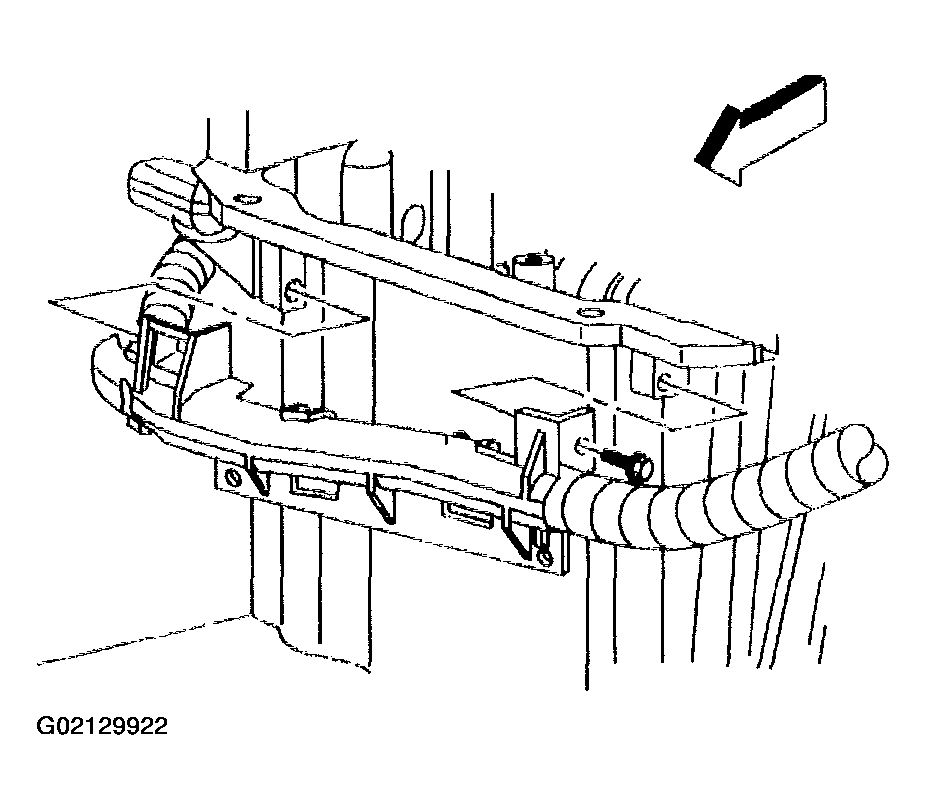

    Fig 3: Removing Battery Cable From Channel
    G02129922Courtesy of GENERAL MOTORS CORP.
  11. Remove the positive cable lead nut (2) from the starter.
  12. Remove the positive cable lead (1).
  13. Remove the cable clip (3) from the bracket.

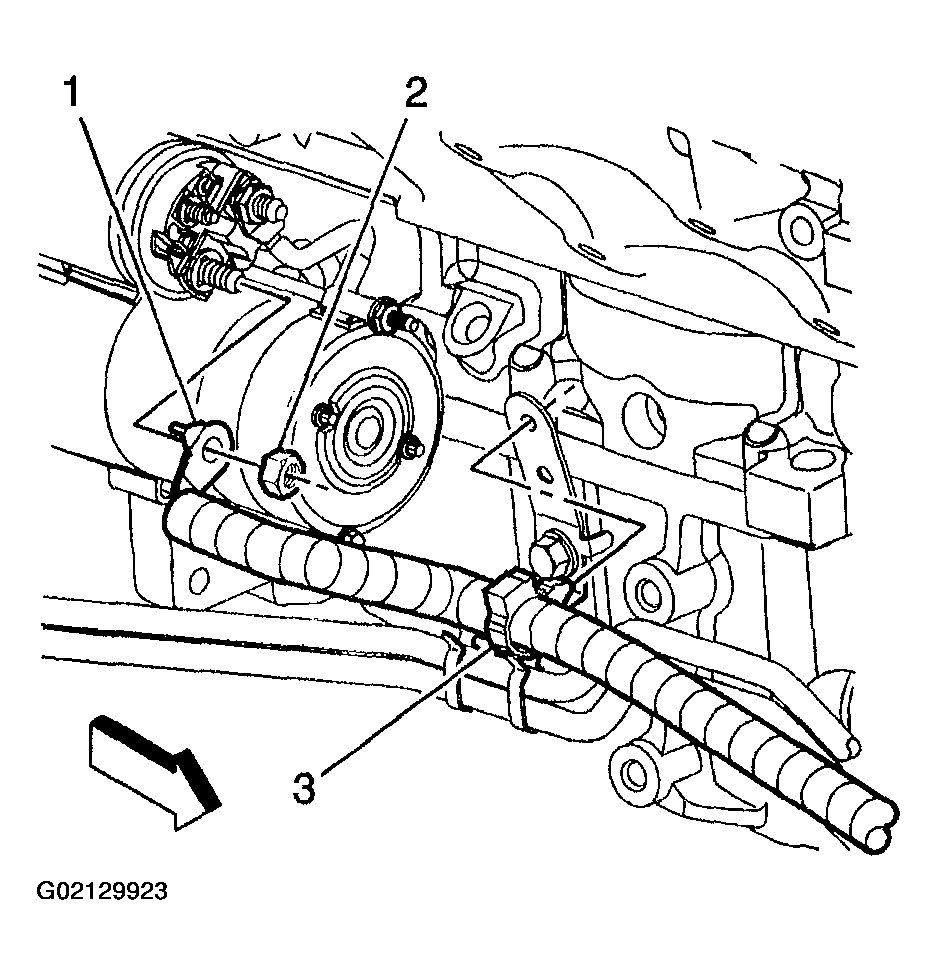

    Fig 4: Removing Cable Clip From Bracket
    G02129923Courtesy of GENERAL MOTORS CORP.
  14. Remove the starter solenoid lead nut (2)
  15. Remove the starter solenoid lead (1) from the starter.
  16. Remove the battery cable from the conduit.

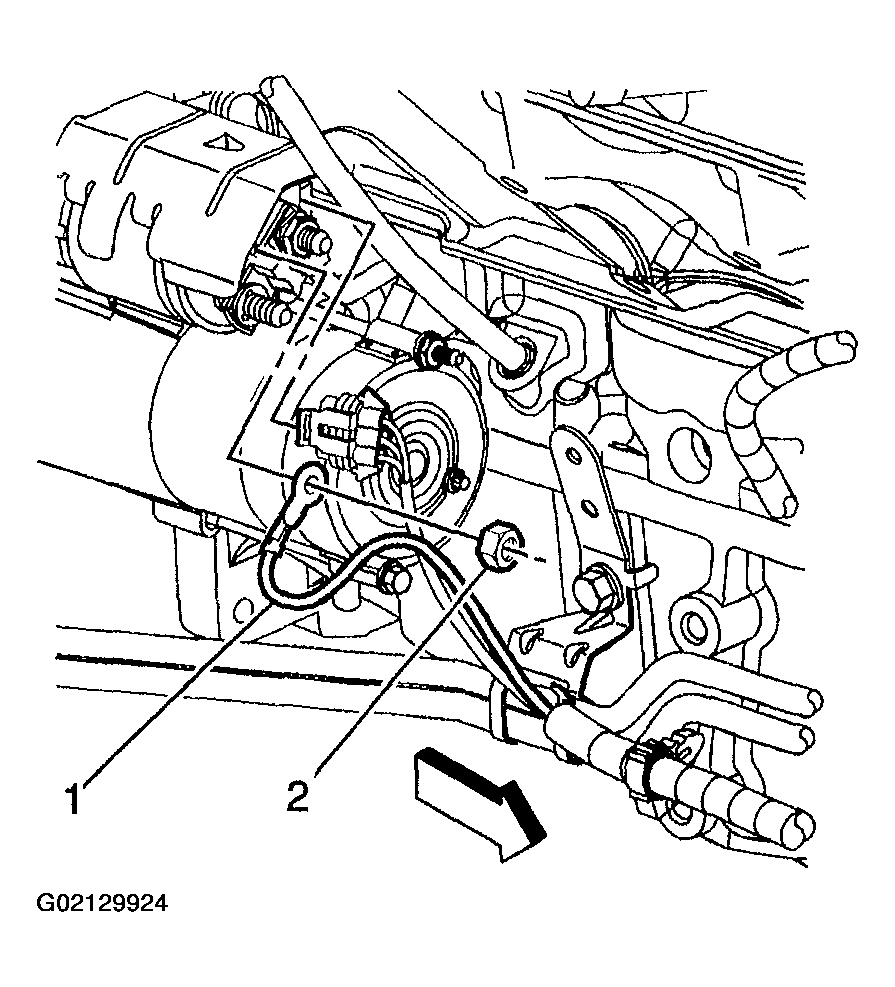

    Fig 5: Removing Starter Solenoid Lead From Starter
    G02129924Courtesy of GENERAL MOTORS CORP.
