Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Disconnect the battery positive cable from the battery.

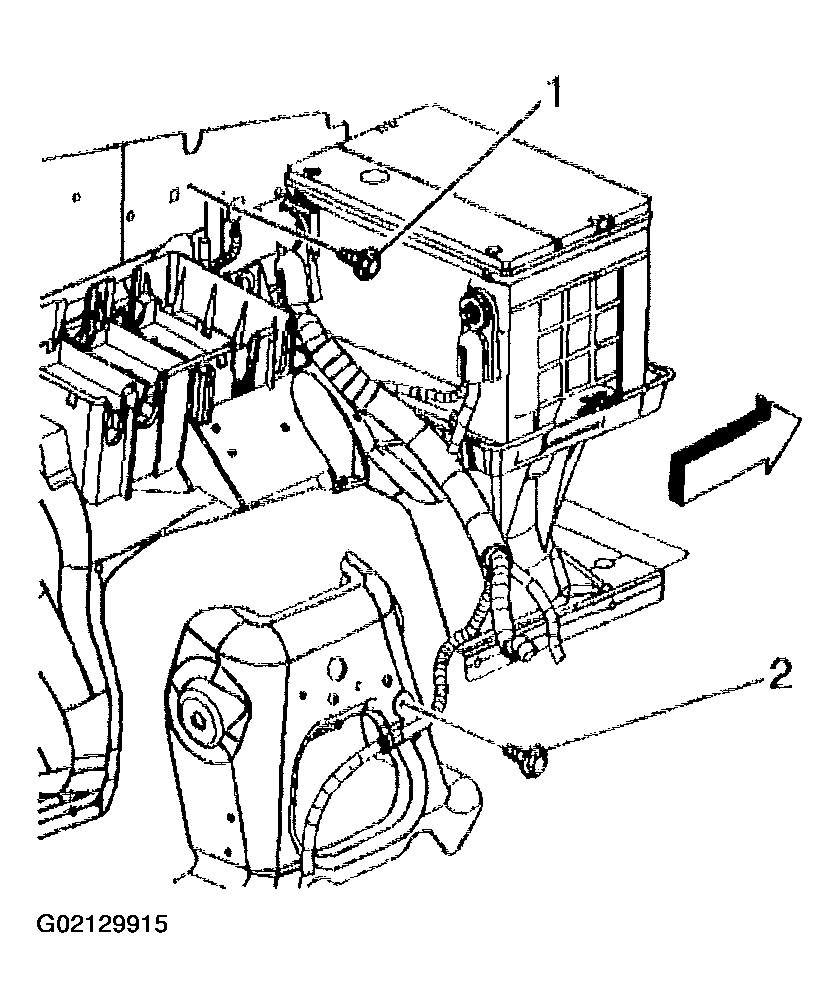

Disconnect the harness from the engine harness bracket (2).

Fig 1: Disconnecting Harness From Engine Harness Bracket
Courtesy of GENERAL MOTORS CORP.

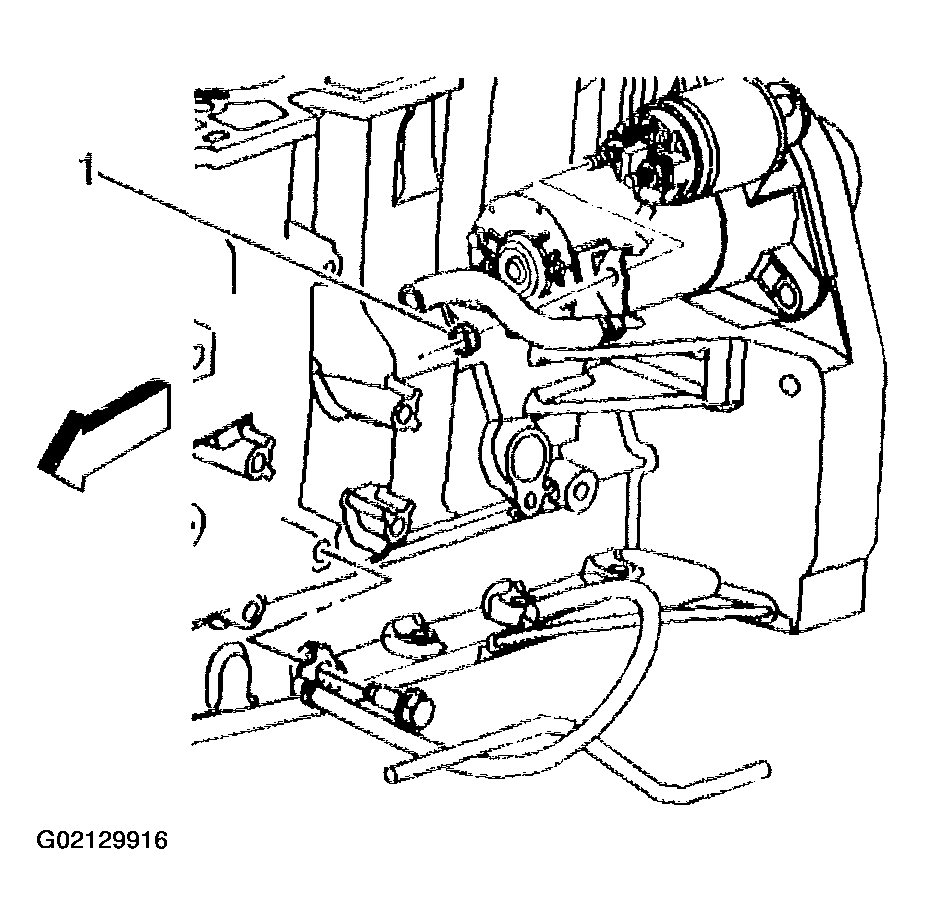

Disconnect the positive cable lead from the starter (1).

Fig 2: Disconnecting Positive Cable Lead From Starter
Courtesy of GENERAL MOTORS CORP.

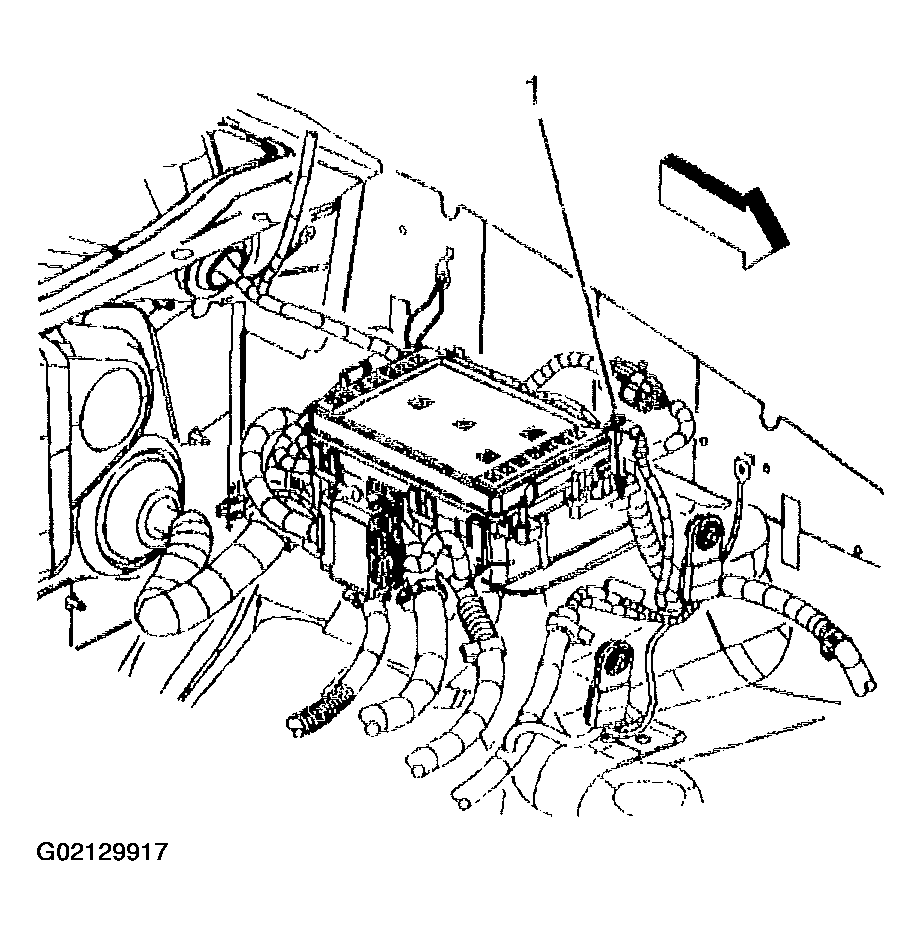

Disconnect the positive cable lead from the junction block (1).

Fig 3: Disconnecting Positive Cable Lead From Junction Block
Courtesy of GENERAL MOTORS CORP.

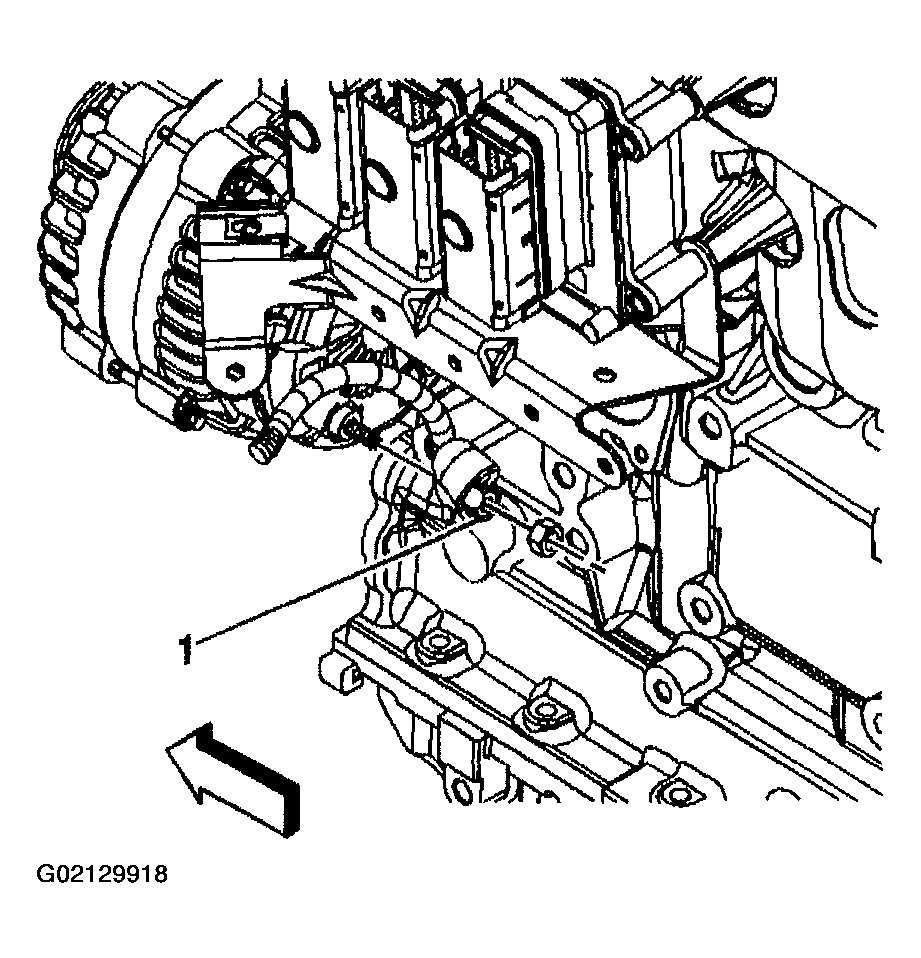

Disconnect the positive cable lead from the generator (1).

Fig 4: Disconnecting Positive Cable Lead From Generator
Courtesy of GENERAL MOTORS CORP.
