Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the new positive cable to the generator and secure the positive cable with the nut (1).

    Tighten

    Tighten the positive cable bolt to 9 N.m (80 lb in).

  2. Connect the positive cable to the junction block and secure the positive cable with the bolt.

    Tighten

    Tighten the positive cable nut to 10 N.m (89 lb in).

  3. Connect the positive cable to the starter and secure the positive cable with the nut.

    Tighten

    Tighten the nut 9 N.m (80 lb in).

  4. Connect the harness to the engine harness bracket.

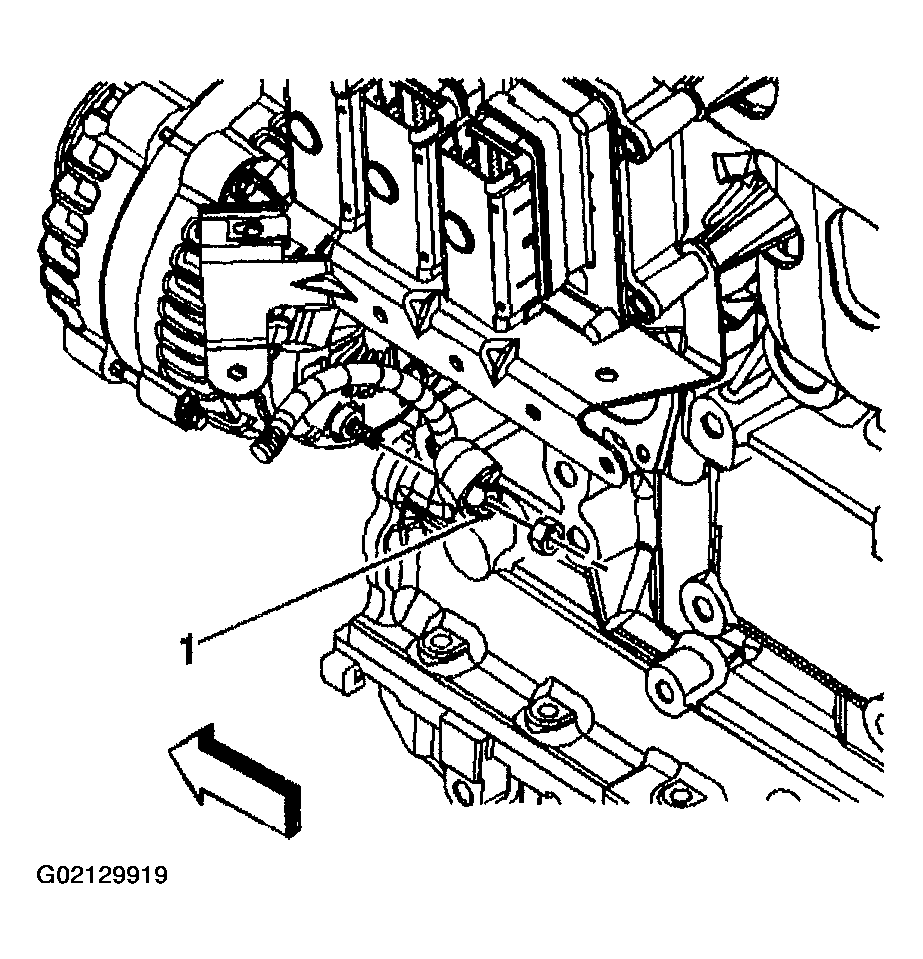

    Fig 1: Installing Positive Cable To Generator
    G02129919Courtesy of GENERAL MOTORS CORP.
  5. Connect the cable to the positive battery post.

    Tighten

    Tighten the battery positive bolt to 15 N.m (11 lb ft).

  6. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE   .
