Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable (5). Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE   .
  2. Remove the ground terminal bolt (3) that secures the harness to the front fender.

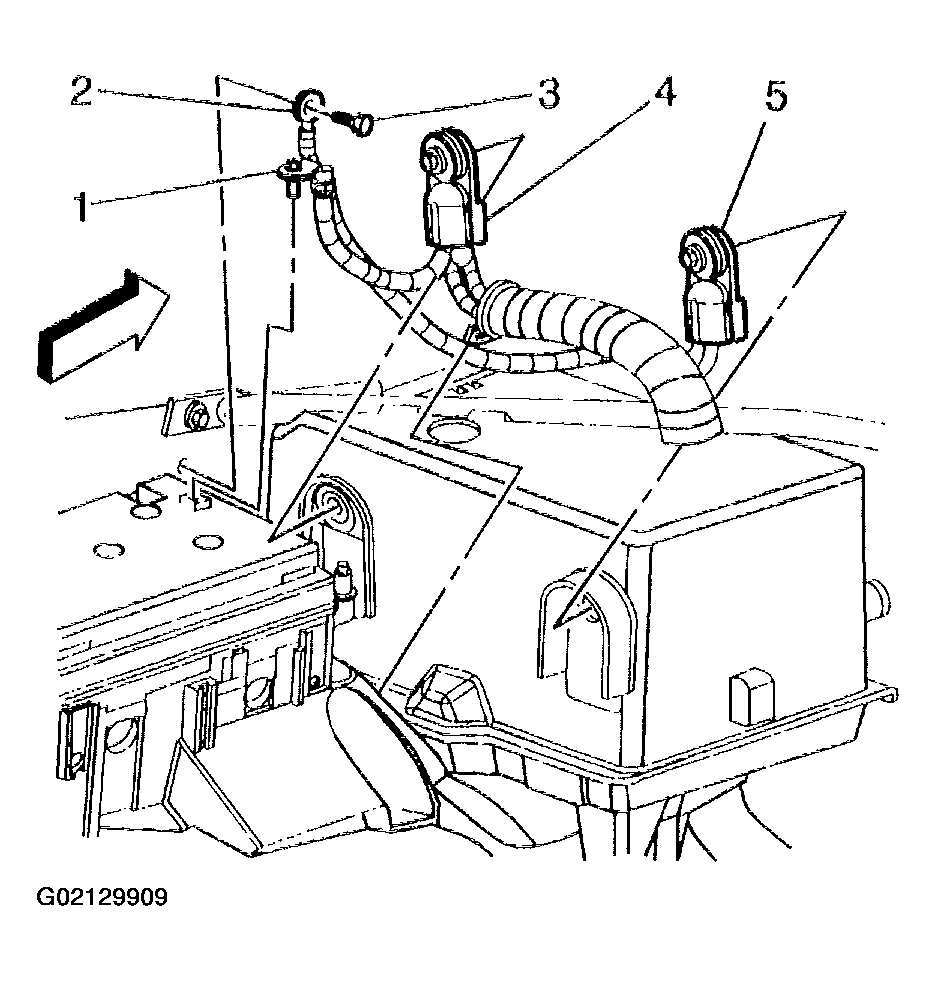

    Fig 1: Removing Ground Terminal Bolt
    G02129909Courtesy of GENERAL MOTORS CORP.
  3. Remove the ground cable bolt (4) that secures the harness to the shock tower.
  4. Remove the ground cable clip from the shock tower.
    Fig 2: Removing Ground Cable Clip From Shock Tower
    G02129910Courtesy of GENERAL MOTORS CORP.
  5. Remove the ground terminal bolt from the engine block.
  6. Remove the cable from the engine harness conduit.

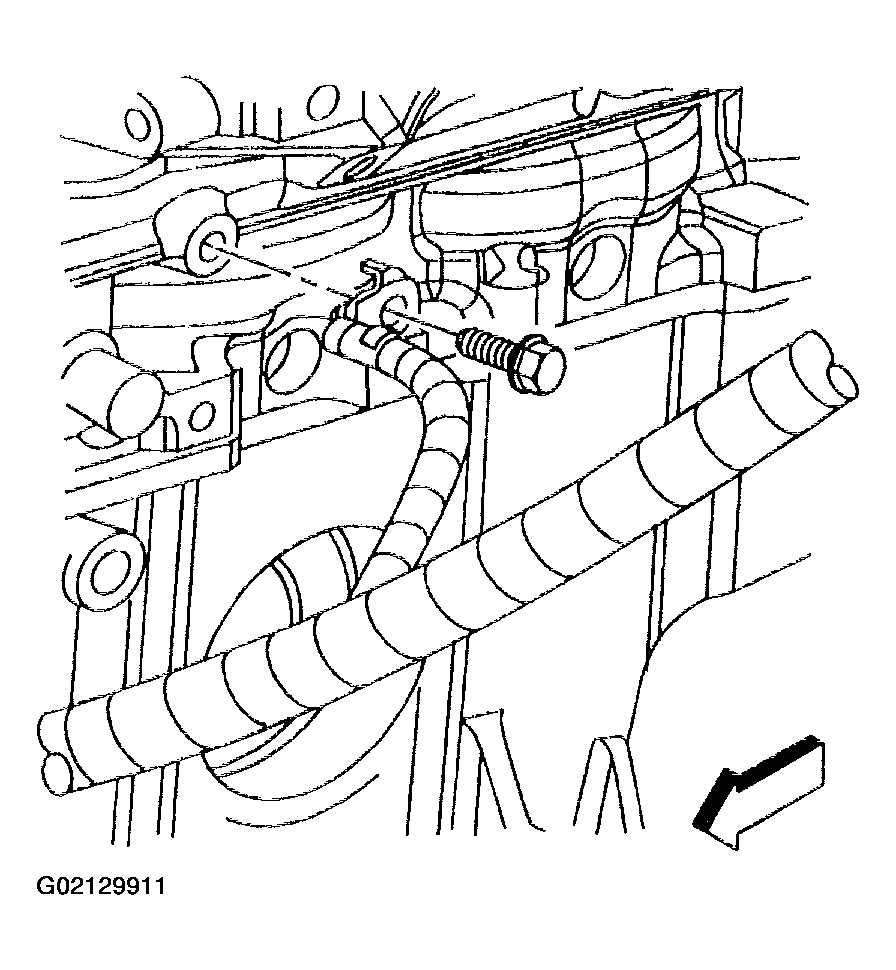

    Fig 3: Removing Ground Terminal Bolt From Engine Block
    G02129911Courtesy of GENERAL MOTORS CORP.
