Connecting Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Verify that all electrical components are off such as interior lights, all doors are closed, the underhood lamp, etc.
Clean any corrosion from the negative battery cable using a wire brush.
Position the negative battery cable (4) to the battery.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Tighten negative battery cable bolt.
Tighten

Tighten the bolt to 15 N.m (11 lb ft).

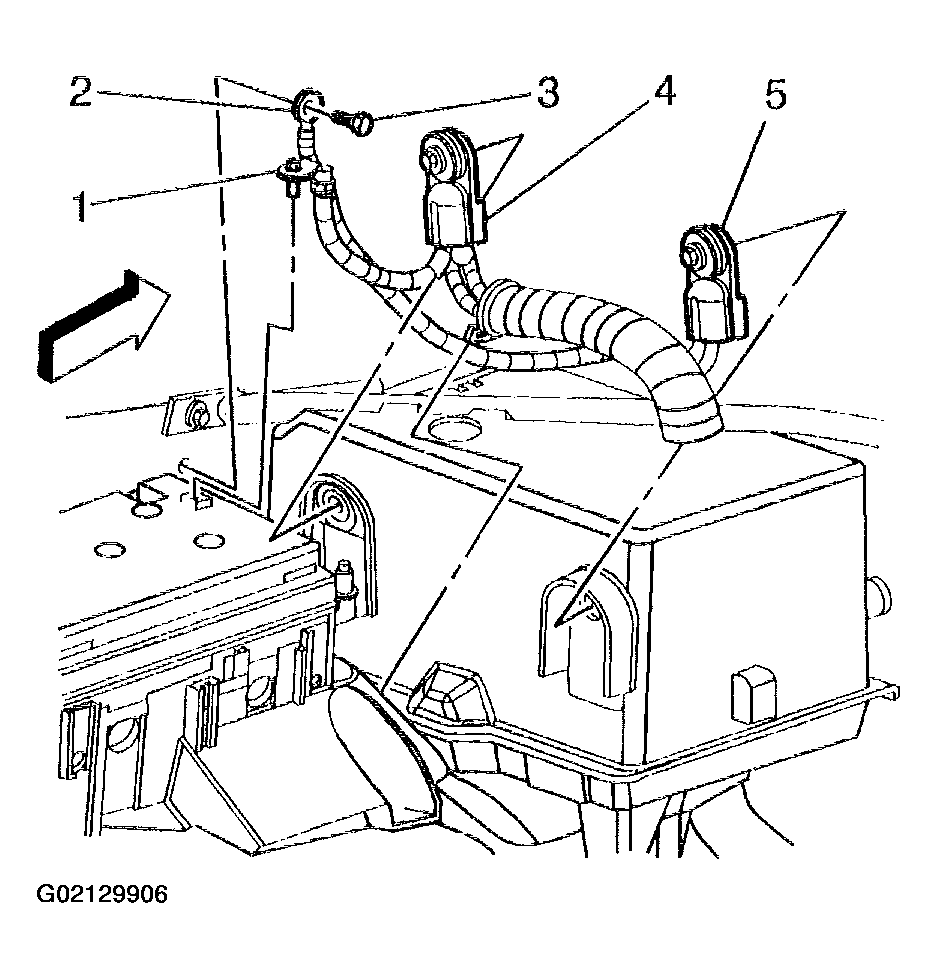

Fig 1: Connecting Negative Battery Cable To Battery
Courtesy of GENERAL MOTORS CORP.
