Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the outlet radiator hose from the water outlet housing. Refer to RADIATOR HOSE REPLACEMENT - OUTLET (BODY VIN CODE 3)   or  RADIATOR HOSE REPLACEMENT - OUTLET (BODY VIN CODE 6 LM4)   or RADIATOR HOSE REPLACEMENT - OUTLET (BODY VIN CODE 6 LL8)   .
  2. Remove the power steering pump bracket. Refer to POWER STEERING PUMP BRACKET REPLACEMENT  in Power Steering System.
  3. Remove the water outlet bolts.
  4. Remove the water outlet.

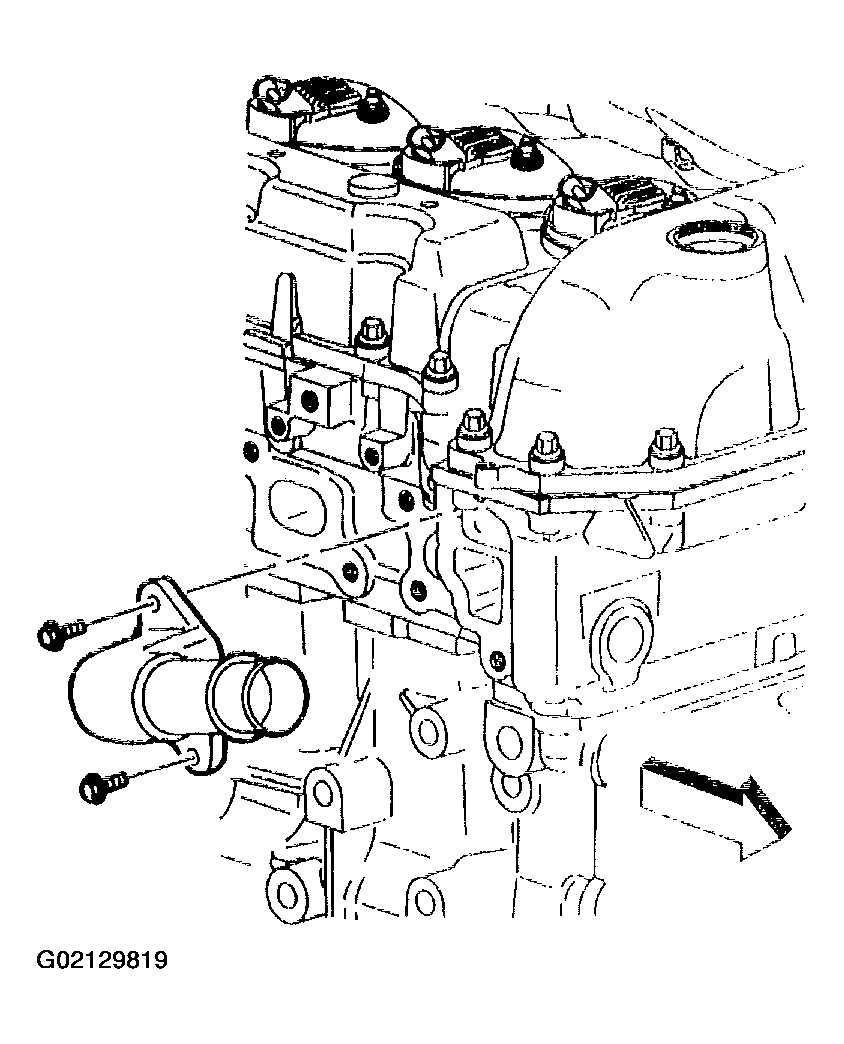

    Fig 1: Removing Water Outlet & Bolts
    G02129819Courtesy of GENERAL MOTORS CORP.
