Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 6) or DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 3) .
Remove the air intake resonator. Refer to AIR CLEANER RESONATOR OUTLET DUCT .
Reposition the outlet hose clamp from the water pump.
Remove the outlet hose from the water pump.

Fig 1: Removing Outlet Hose From Water Pump (Body Vin Code 6 LM4)
Courtesy of GENERAL MOTORS CORP.
Reposition the outlet hose clamp from the radiator.
Remove the outlet hose from the radiator.

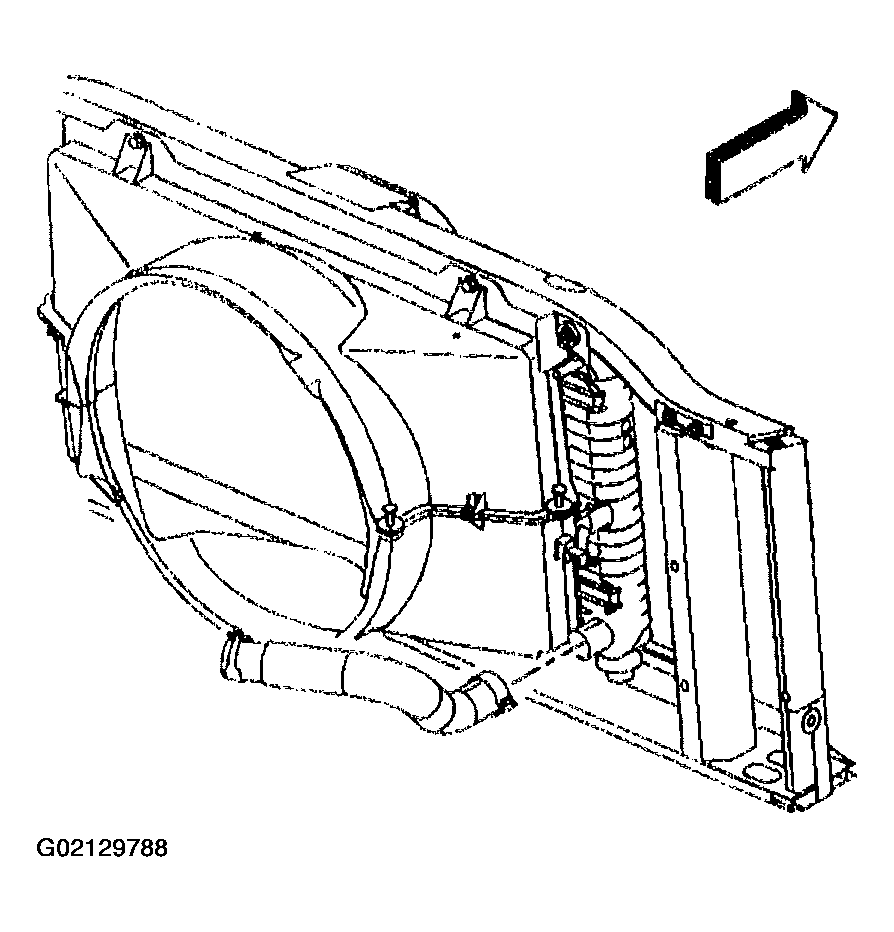

Fig 2: Removing Outlet Hose From Radiator (Body Vin Code 6 LM4)
Courtesy of GENERAL MOTORS CORP.
