Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the outlet hose to the radiator.
Reposition the outlet hose clamp to the radiator.

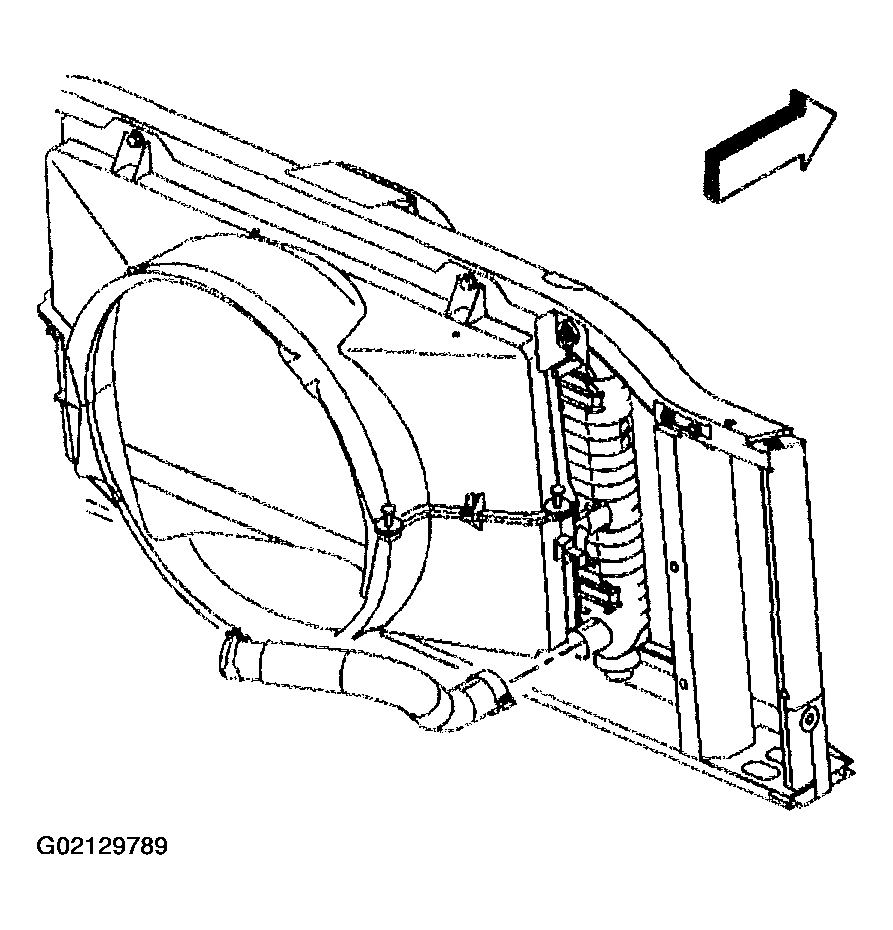

Fig 1: Installing Outlet Hose To Radiator (Body Vin Code 6 LM4)
Courtesy of GENERAL MOTORS CORP.
Install the outlet hose to the water pump.
Reposition the outlet hose clamp to the water pump.
Install the air intake resonator. Refer to AIR CLEANER RESONATOR OUTLET DUCT .
Install the radiator inlet hose clip to the outlet duct.
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 6) or DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 3) .

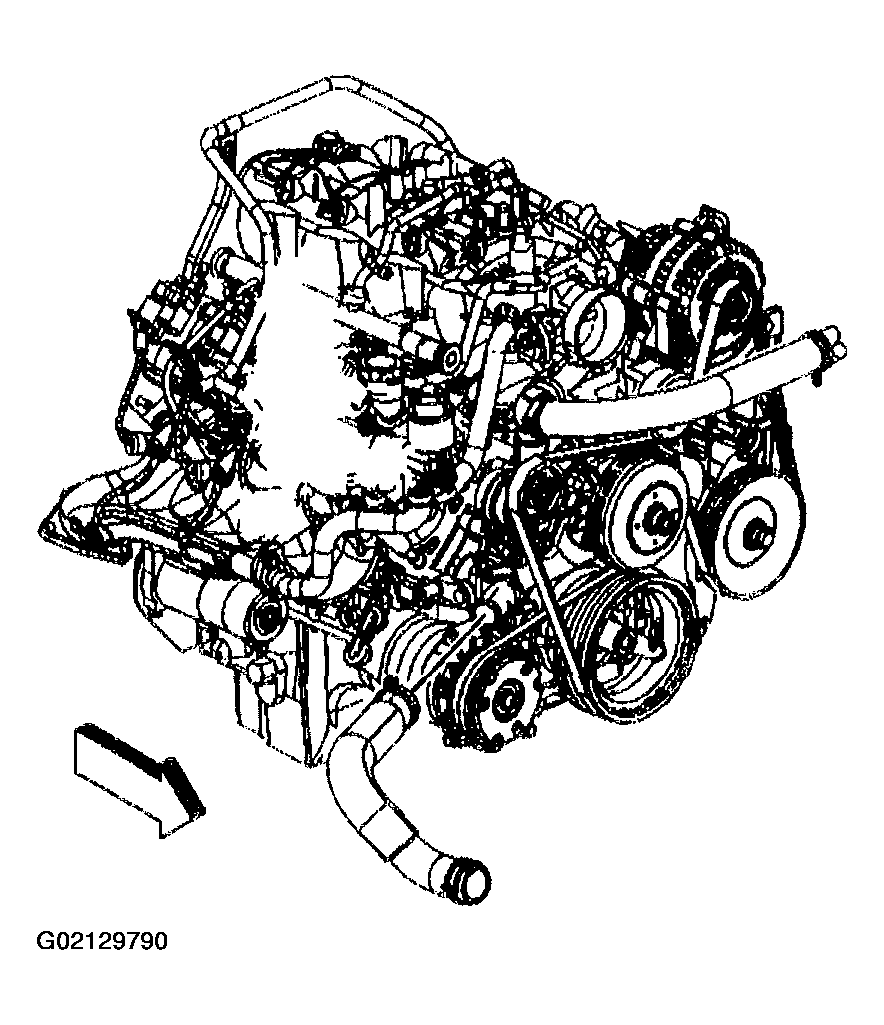

Fig 2: Installing Outlet Hose To Water Pump (Body Vin Code 6 LM4)
Courtesy of GENERAL MOTORS CORP.
