Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 6) or DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 3) .
Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Reposition the inlet radiator hose clamp (3) using J 38185 .
Remove the inlet radiator hose (2) from the radiator (1).

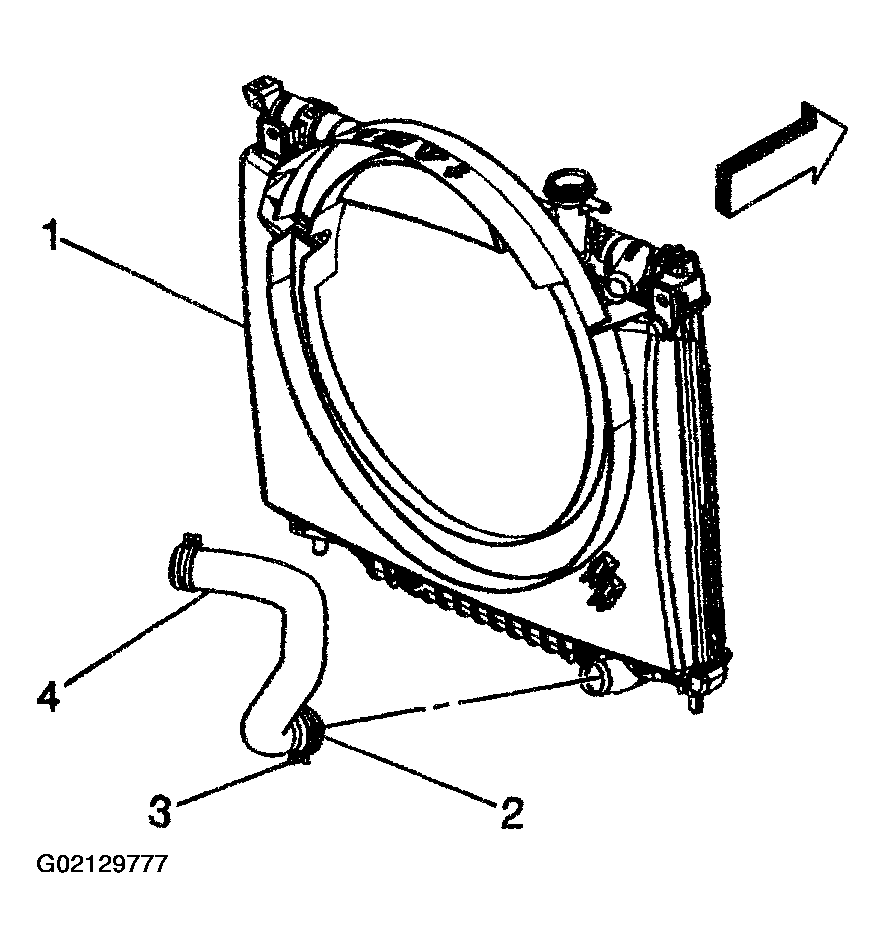

Fig 1: Removing Inlet Radiator Hose From Radiator (Body Vin Code 6 LM4)
Courtesy of GENERAL MOTORS CORP.
Reposition the inlet radiator hose clamp (3) using J 38185 .
Remove the radiator inlet hose from the engine (5).
Remove the radiator inlet hose.

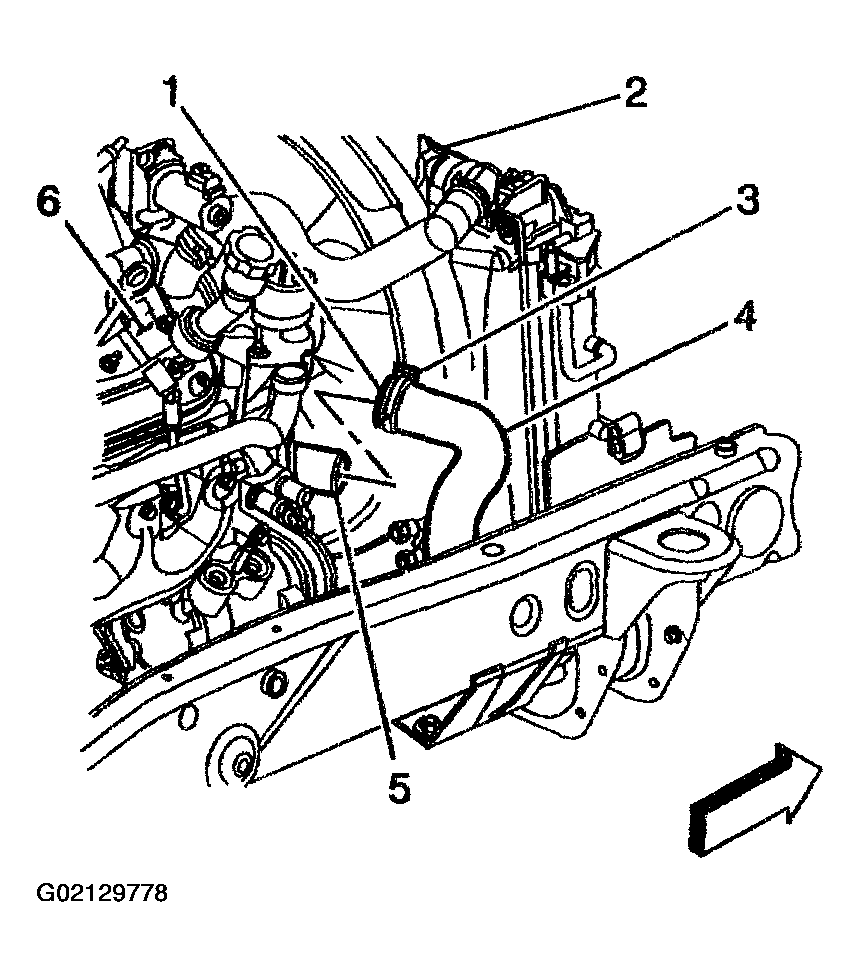

Fig 2: Removing Radiator Inlet Hose From Engine (Body Vin Code 6 LM4)
Courtesy of GENERAL MOTORS CORP.
