Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the inlet radiator hose clamps to the radiator hose (1).
Install the inlet radiator hose (1) to the radiator.
Reposition the inlet radiator hose clamp using J 38185 .

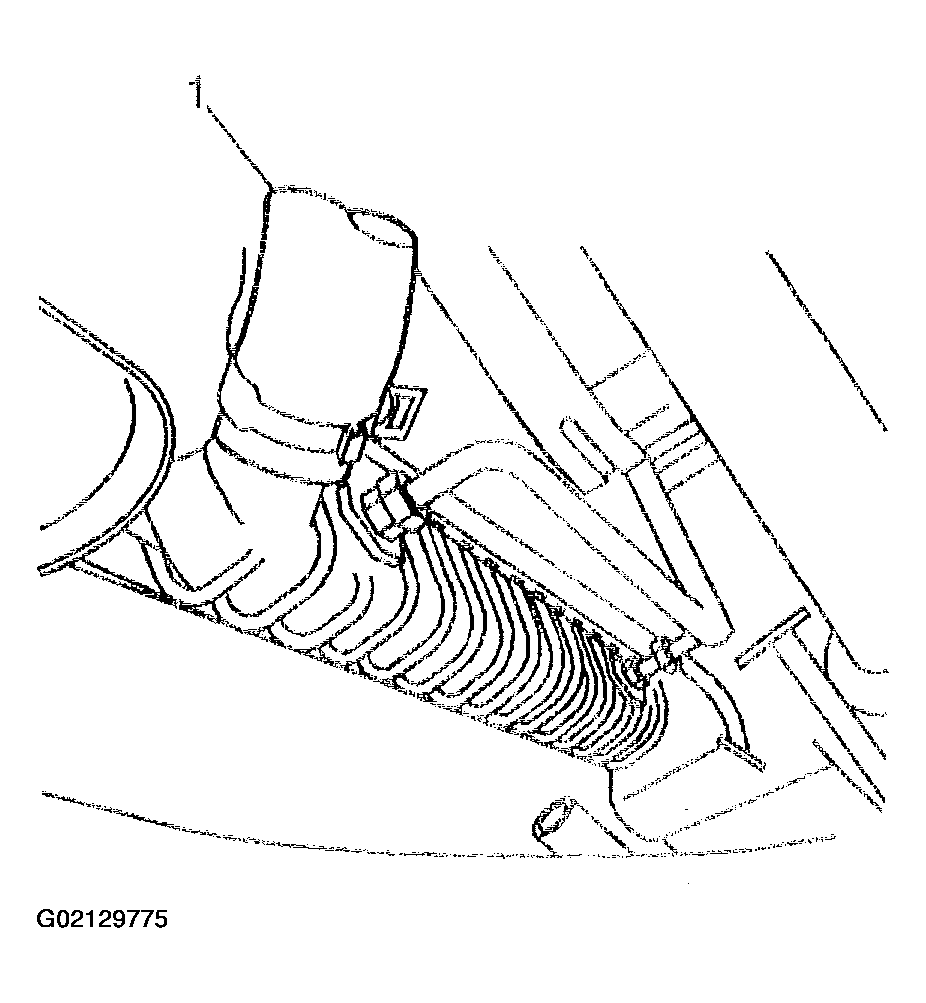

Fig 1: Installing Inlet Radiator Hose To Radiator (Body Vin Code 3)
Courtesy of GENERAL MOTORS CORP.
Install the lower radiator support shield, if equipped.
Lower the vehicle.
Install the inlet radiator hose to the thermostat (1).
Reposition the inlet radiator hose using J 38185 .
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 6) or DRAINING AND FILLING COOLING SYSTEM (BODY VIN CODE 3) .

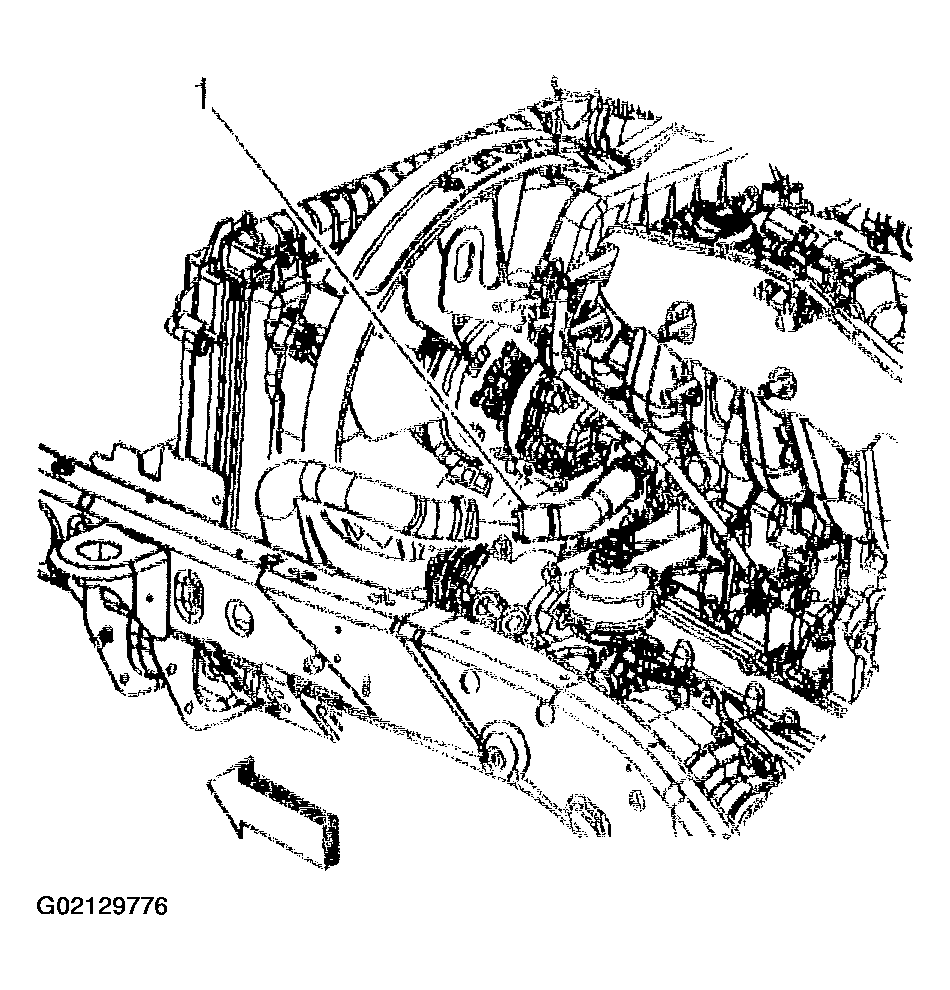

Fig 2: Installing Inlet Radiator Hose To Thermostat (Body Vin Code 3)
Courtesy of GENERAL MOTORS CORP.
