Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Installation of the proper relay is critical. If an enhanced relay - equipped with a diode - is installed into a position requiring a standard relay - equipped without a diode - excessive current will damage any components associated with the relay or its associated circuits.
  1. Install the cooling fan relay (3).
  2. Install the underhood electrical center cover.

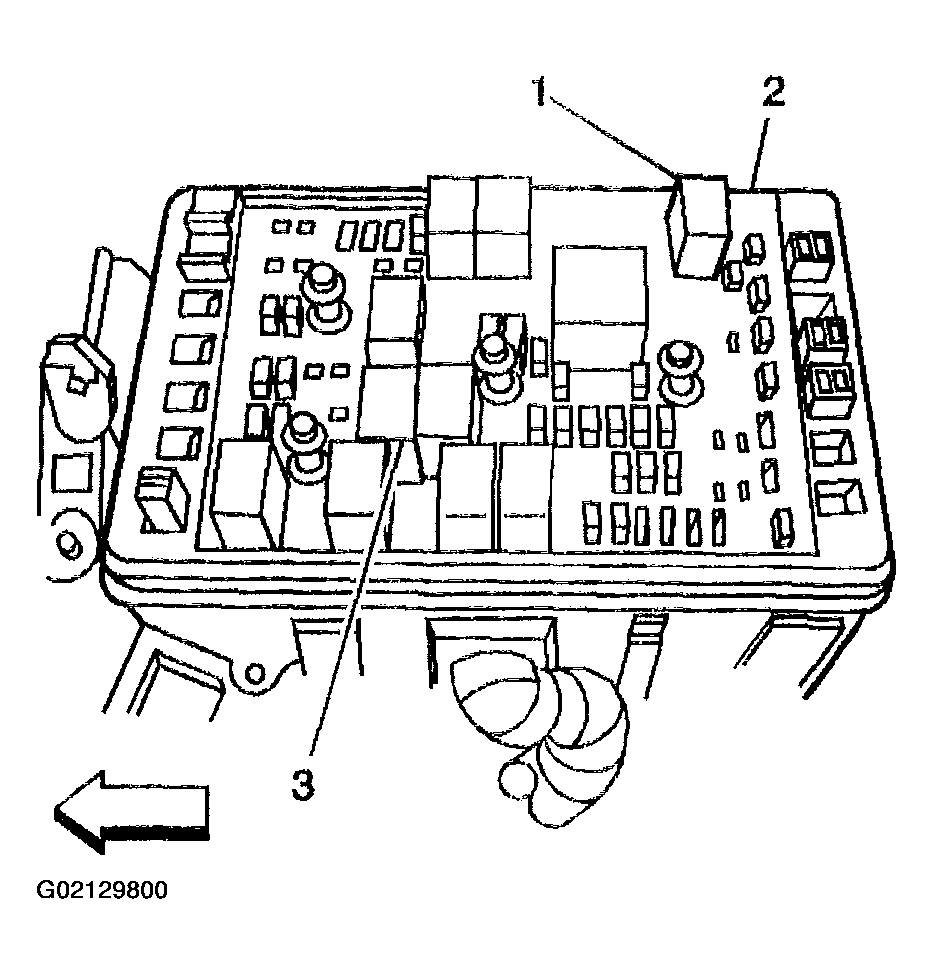

    Fig 1: Installing Cooling Fan Relay
    G02129800Courtesy of GENERAL MOTORS CORP.
