Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY .
  2. Remove the bracket bolt securing the accumulator to the coolant recovery reservoir (1).
  3. Move the accumulator out of the way.
  4. Remove the coolant hoses from the coolant recovery reservoir and plug the hoses and the coolant recovery reservoir outlets with suitable plugs (2).
  5. Remove the nut and bolt securing the coolant recovery reservoir.
  6. Remove the coolant recovery reservoir.

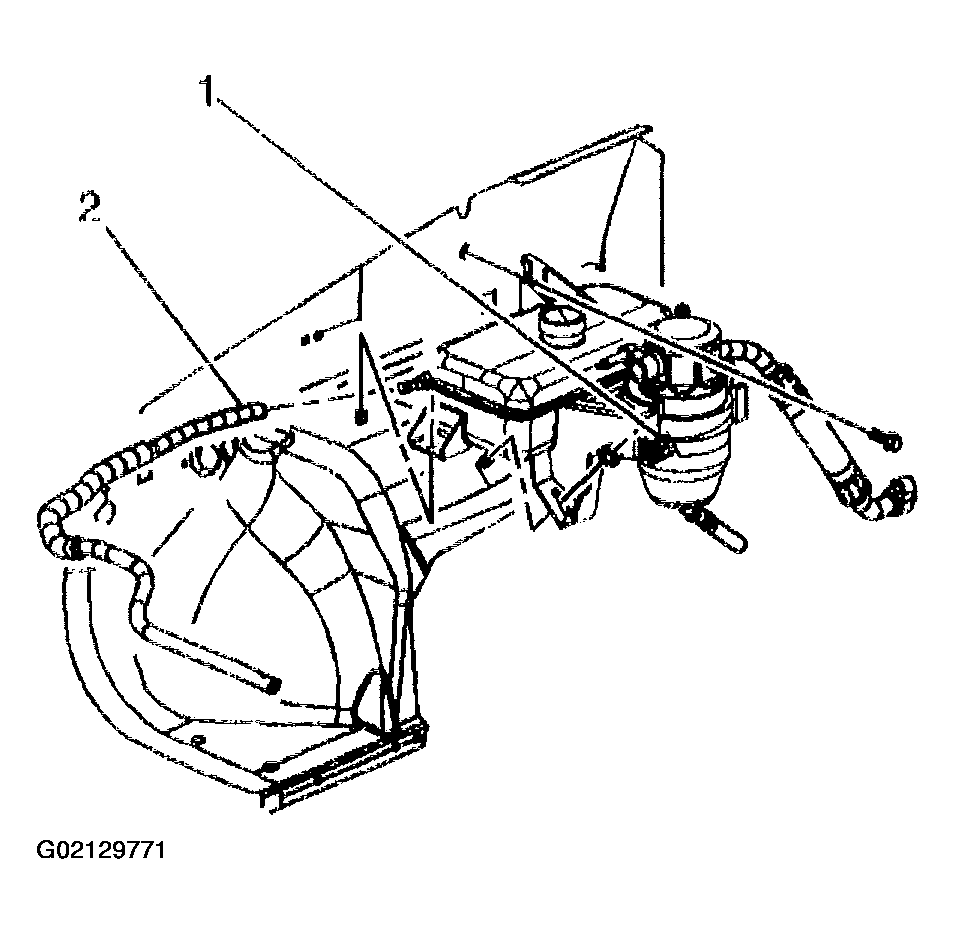

    Fig 1: Removing Bracket Bolt Securing Accumulator To Coolant Recovery Reservoir
    G02129771Courtesy of GENERAL MOTORS CORP.
