Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coolant recovery reservoir.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining bolt to the front wheel house panel.

    Tighten

    Tighten the bolt to 12 N.m (106 lb in).

  3. Secure the coolant recovery reservoir to the wheel house panel with the nut.

    Tighten

    Tighten the nut to 10 N.m (88 lb in).

  4. Install the coolant hose to the coolant recovery reservoir (2).
  5. Install the accumulator to the coolant recovery reservoir and secure the accumulator with the bracket and the bolt (1).
  6. Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY .

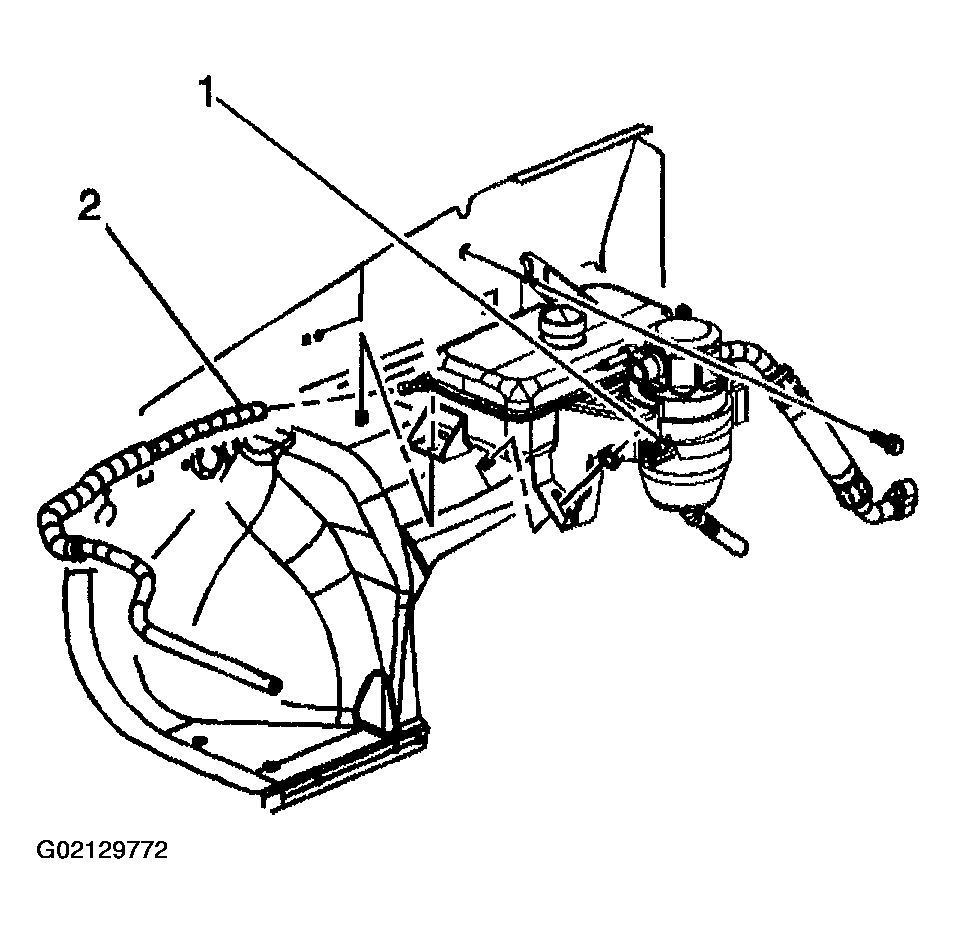

    Fig 1: Installing Bracket Bolt Securing Accumulator To Coolant Recovery Reservoir
    G02129772Courtesy of GENERAL MOTORS CORP.
