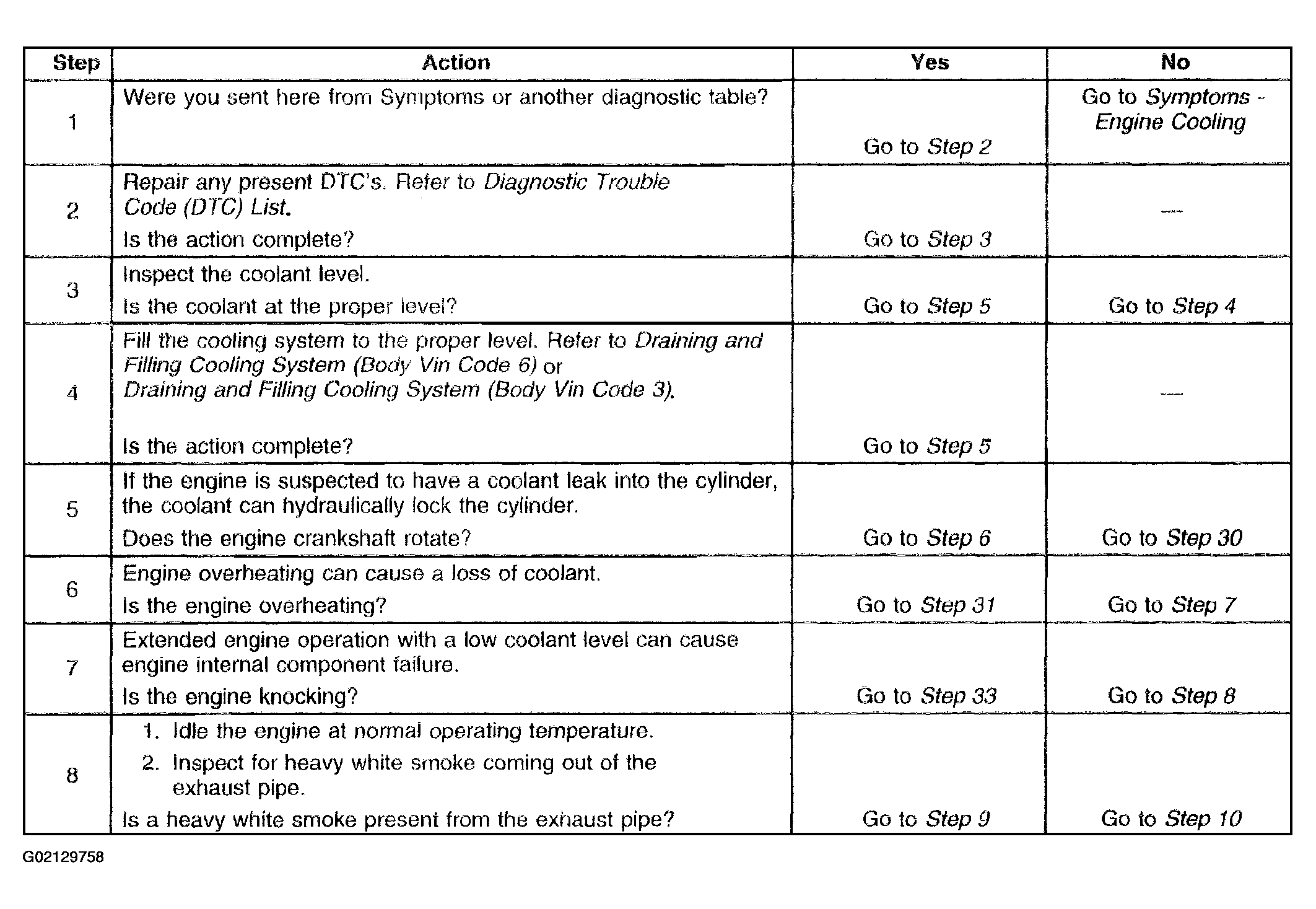

Fig 1: Diagnostic System Check - Loss of Coolant (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

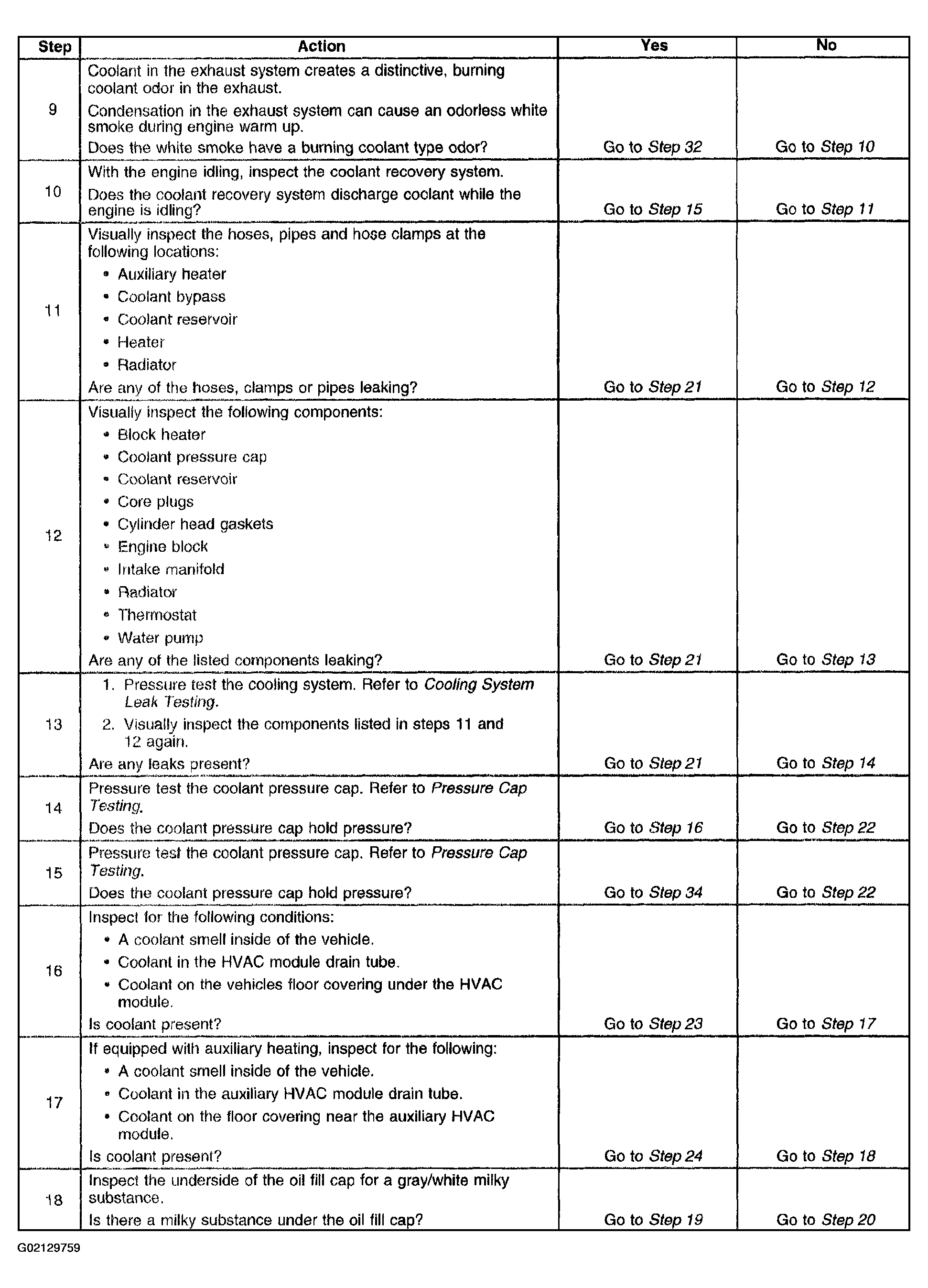

Fig 2: Diagnostic System Check - Loss of Coolant (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

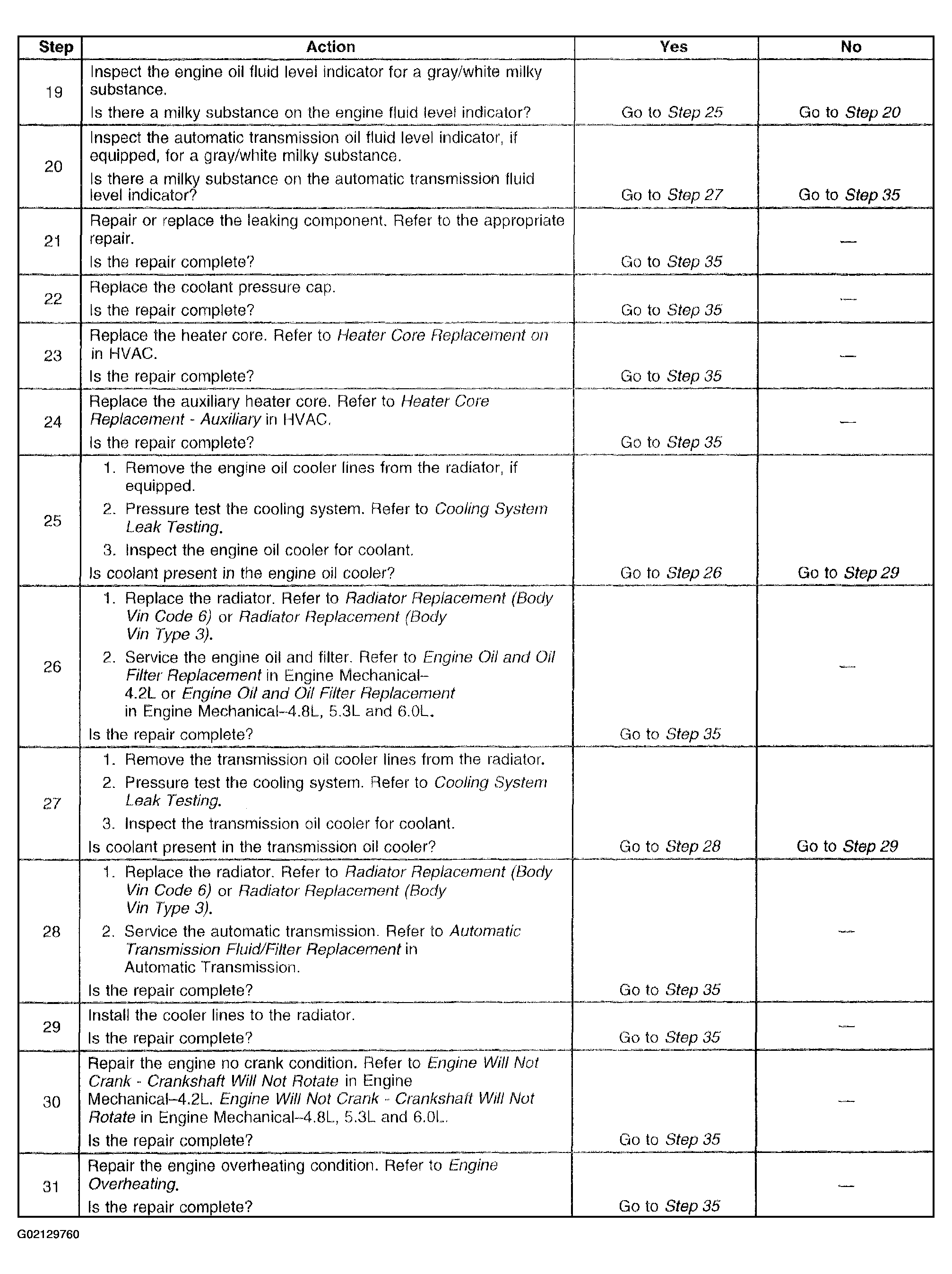

Fig 3: Diagnostic System Check - Loss of Coolant (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

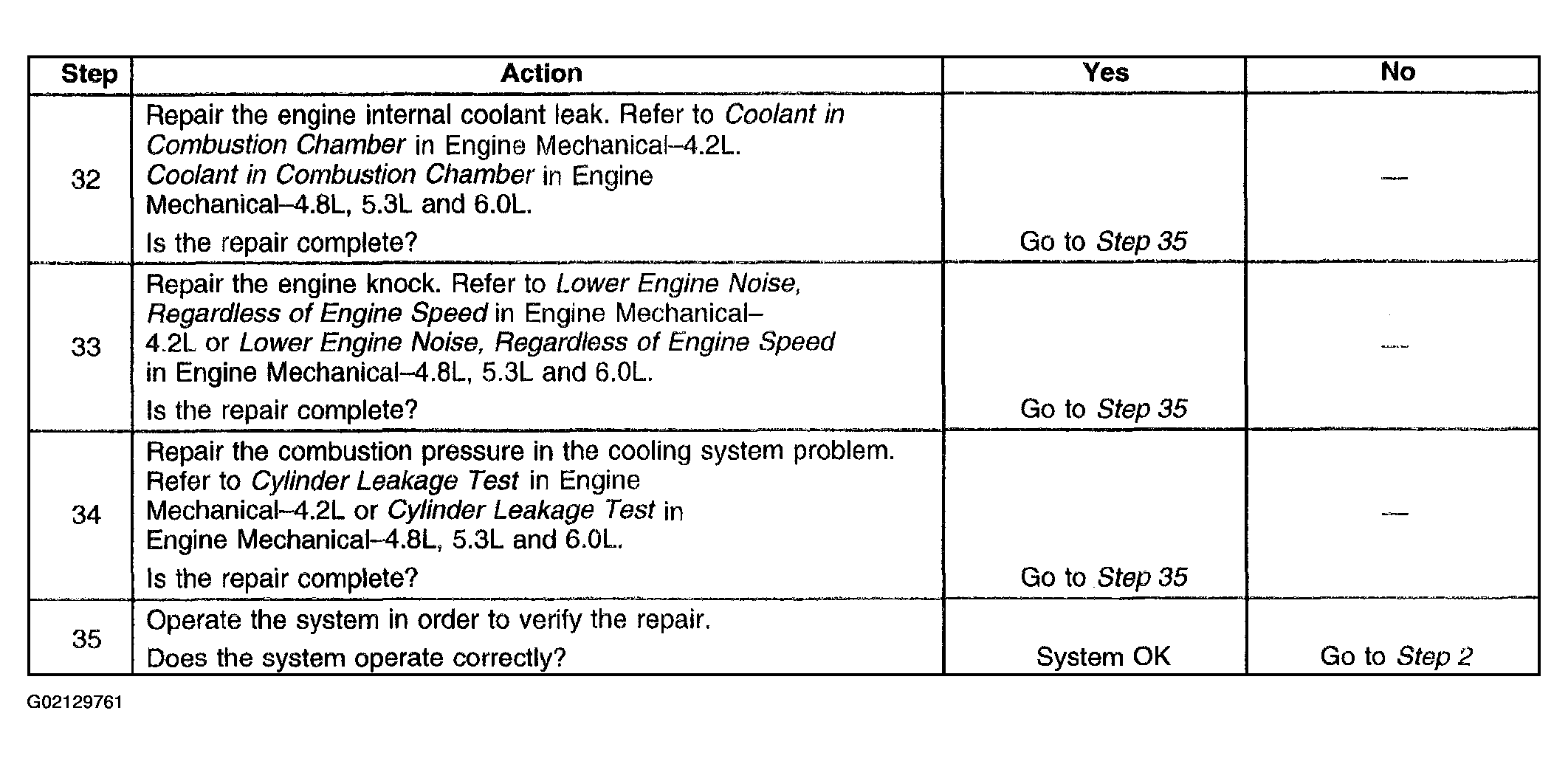

Fig 4: Diagnostic System Check - Loss of Coolant (4 Of 4)
