Engine Fails To Reach Normal Operating Temperature

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

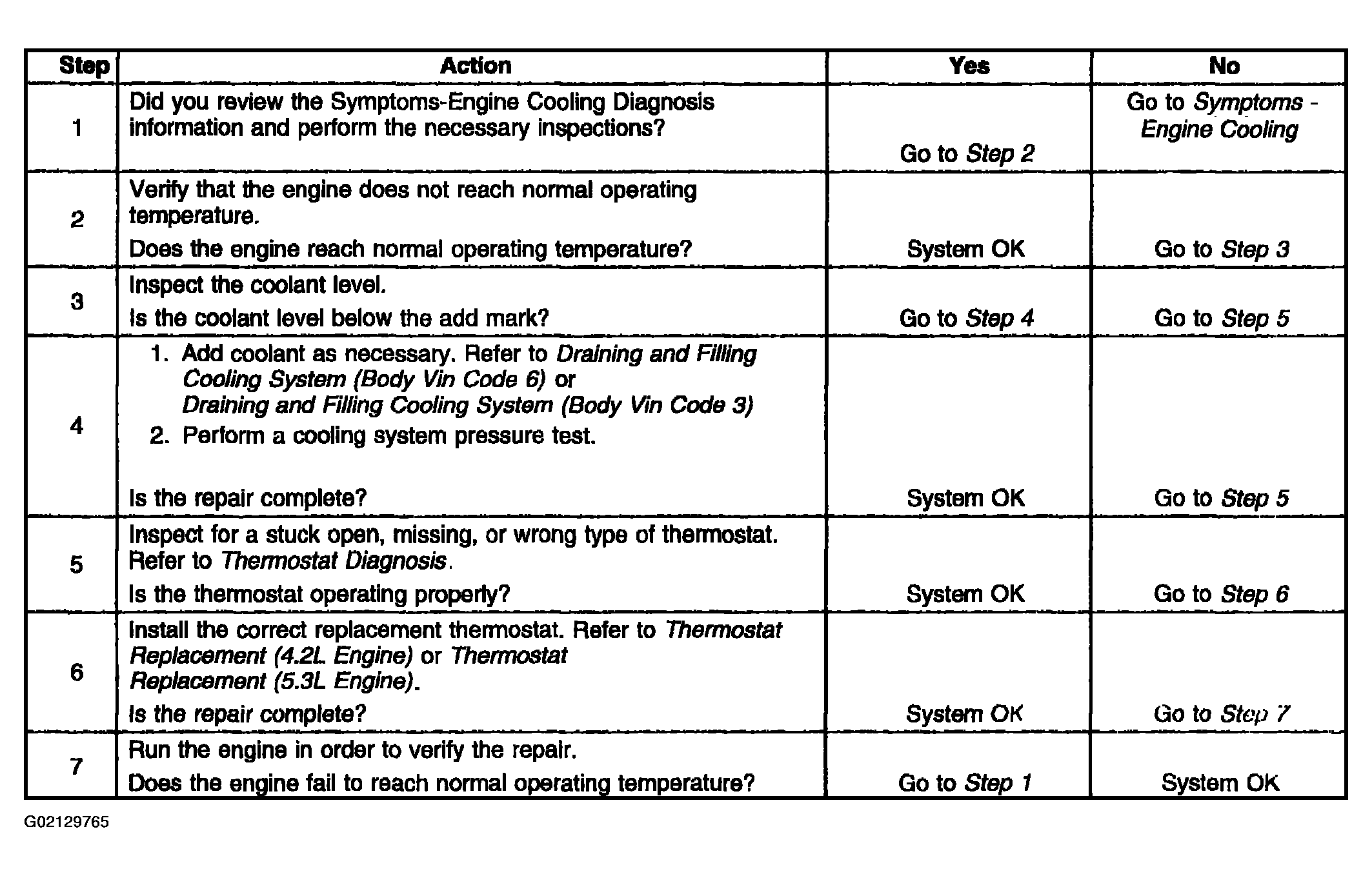

Fig 1: Diagnostic System Check - Engine Fails To Reach Normal Operating Temperature
G02129765Courtesy of GENERAL MOTORS CORP.
