Test Description
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

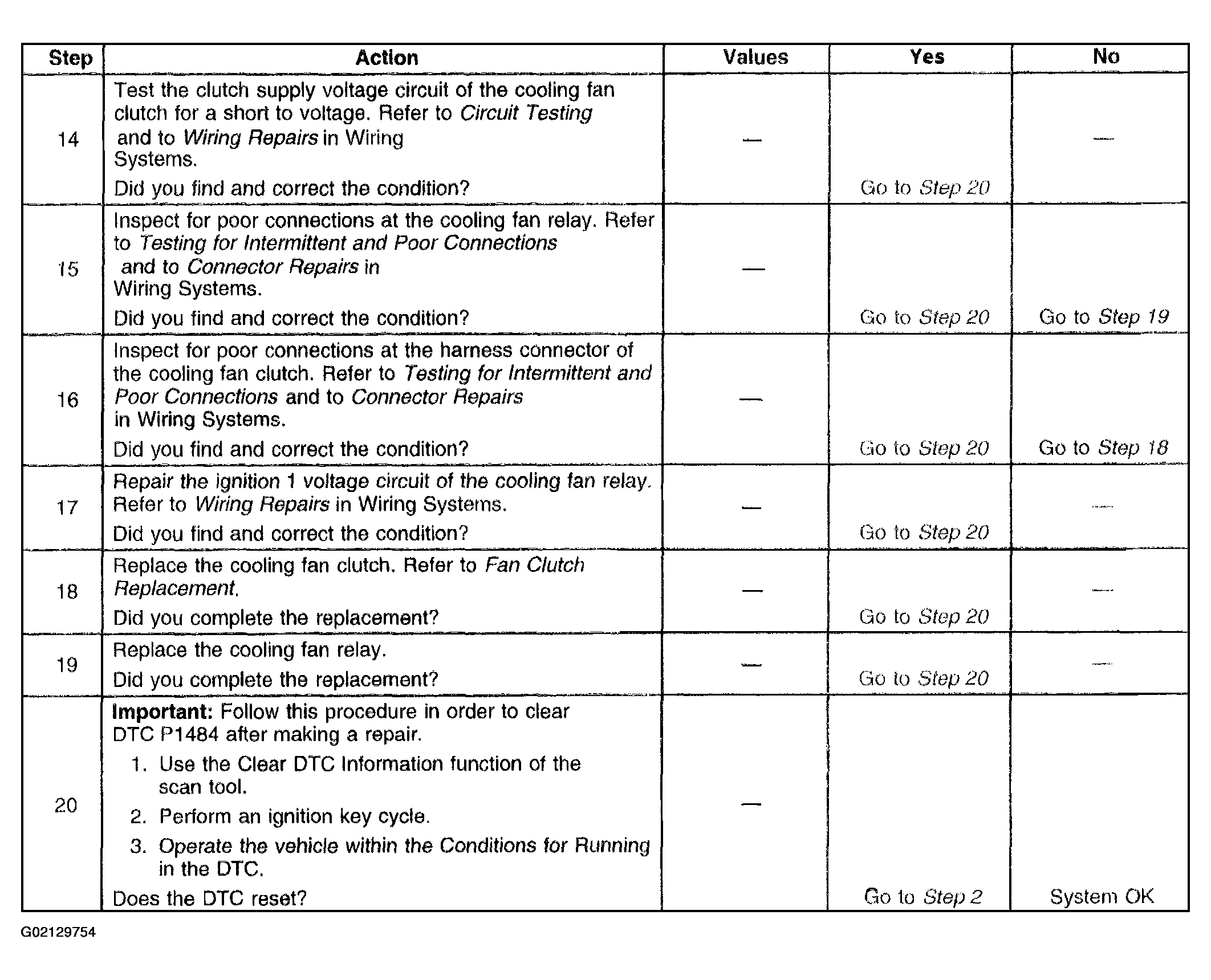

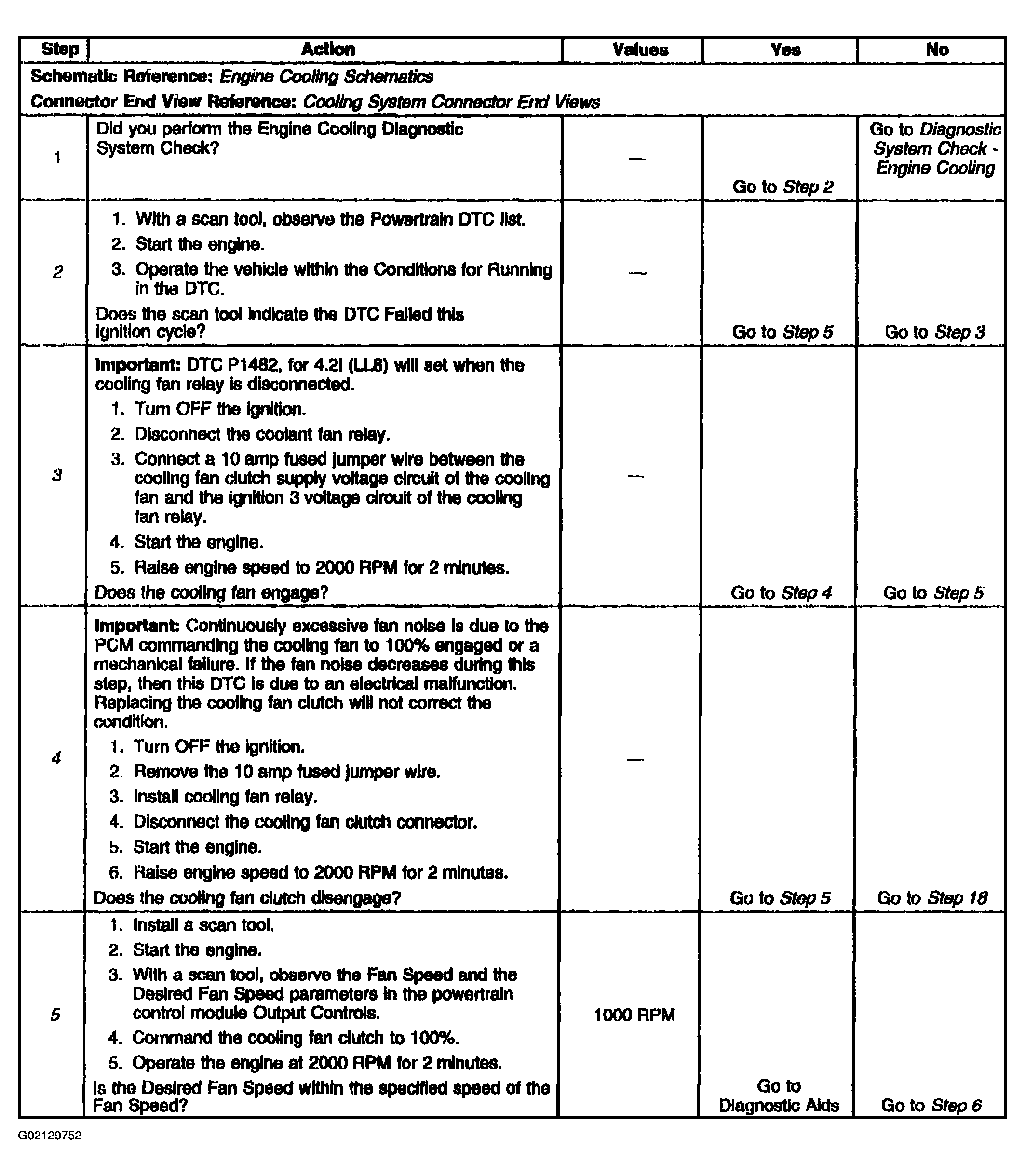

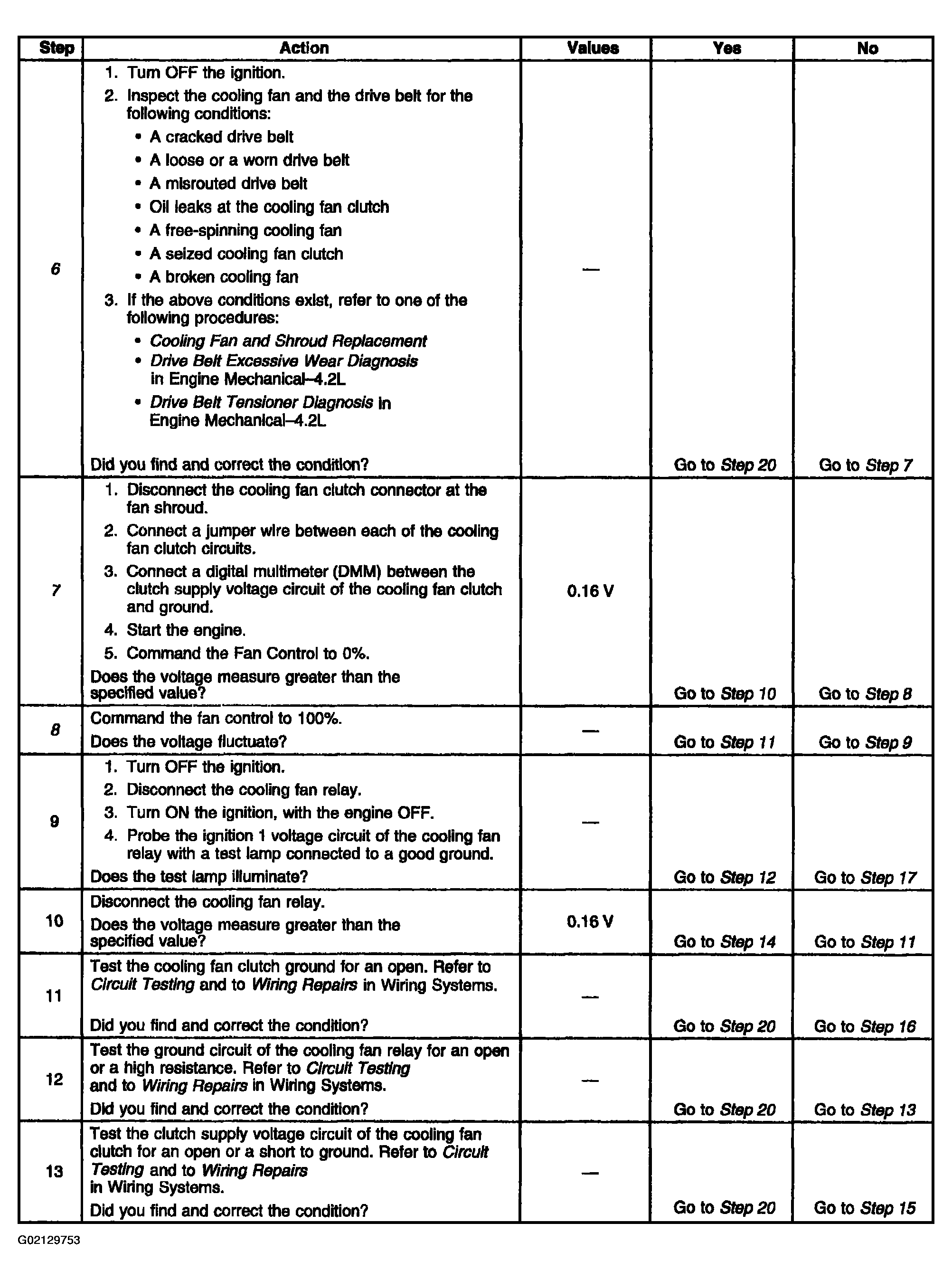

The numbers below refer to the step numbers on the diagnostic table.
- 2. This step ensures that the DTC has failed this ignition cycle. If the scan tool displays Passed, then the answer is No.
- 3. The cooling fan noise should increase as the cooling fan clutch engages. It can take up to 2 minutes for full cooling fan clutch engagement. If cooling fan clutch is previously fully engaged, then there will not be a Noticeable change in cooling fan noise. Compare noise to a known good vehicle. If fan noise is louder than the known good vehicle, then answer Yes.
- 4. In the previous step the cooling fan clutch was fully engaged. This step tests to ensure that the cooling fan clutch will disengage. A Noticeable noise difference should be heard between a fully engaged cooling fan clutch and a disengaged cooling fan clutch. The cooling fan clutch is completely disengaged when the excessive fan noise is not heard.
- 5. Tests the PCM's ability to control the cooling fan. If answer to question is Yes, ensure to refer to all Diagnostic Aids.
- 6. Inspect for a mechanical condition which causes the DTC to set.
- 7. Tests for voltage on the cooling fan clutch supply voltage circuit of the cooling fan clutch. The cooling fan clutch connector is a seal connector. You must use jumper wires for testing or damage to wiring or connector could happen.
- 8. Tests the cooling fan relay for a PWM signal on the cooling fan clutch supply voltage circuit of the cooling fan clutch.
