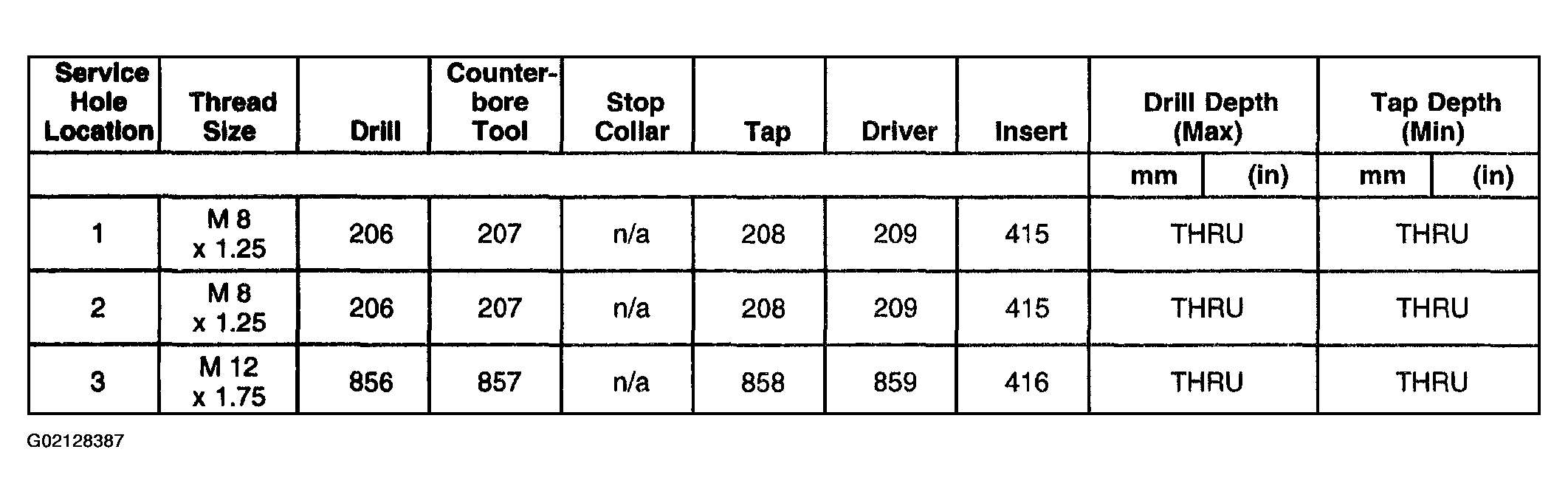

Fig 1: Thread Repair Specifications - Oil Pan - Top View
Courtesy of GENERAL MOTORS CORP.

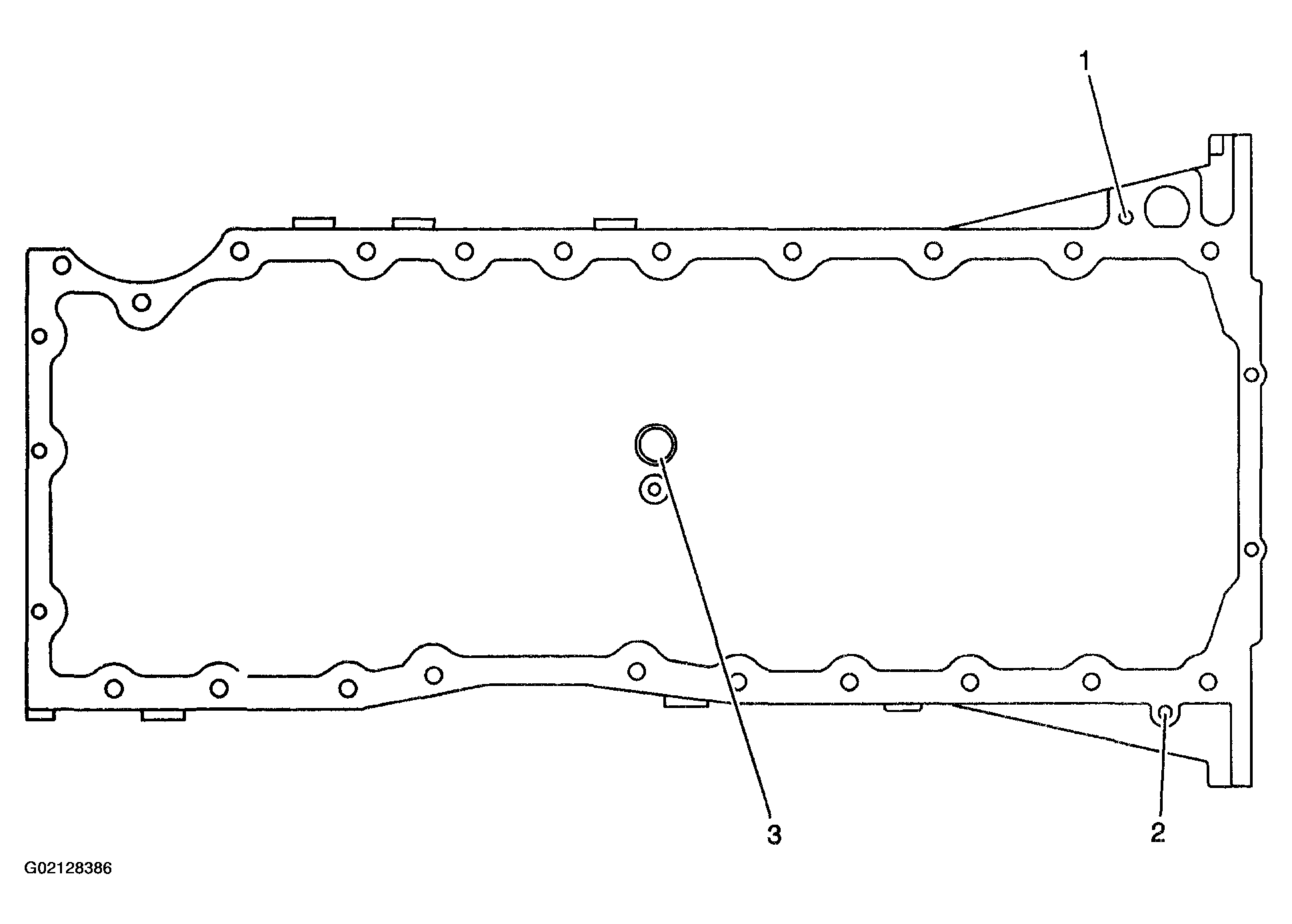

Fig 2: Thread Repair Specifications - Oil Pan - Top View Callouts
