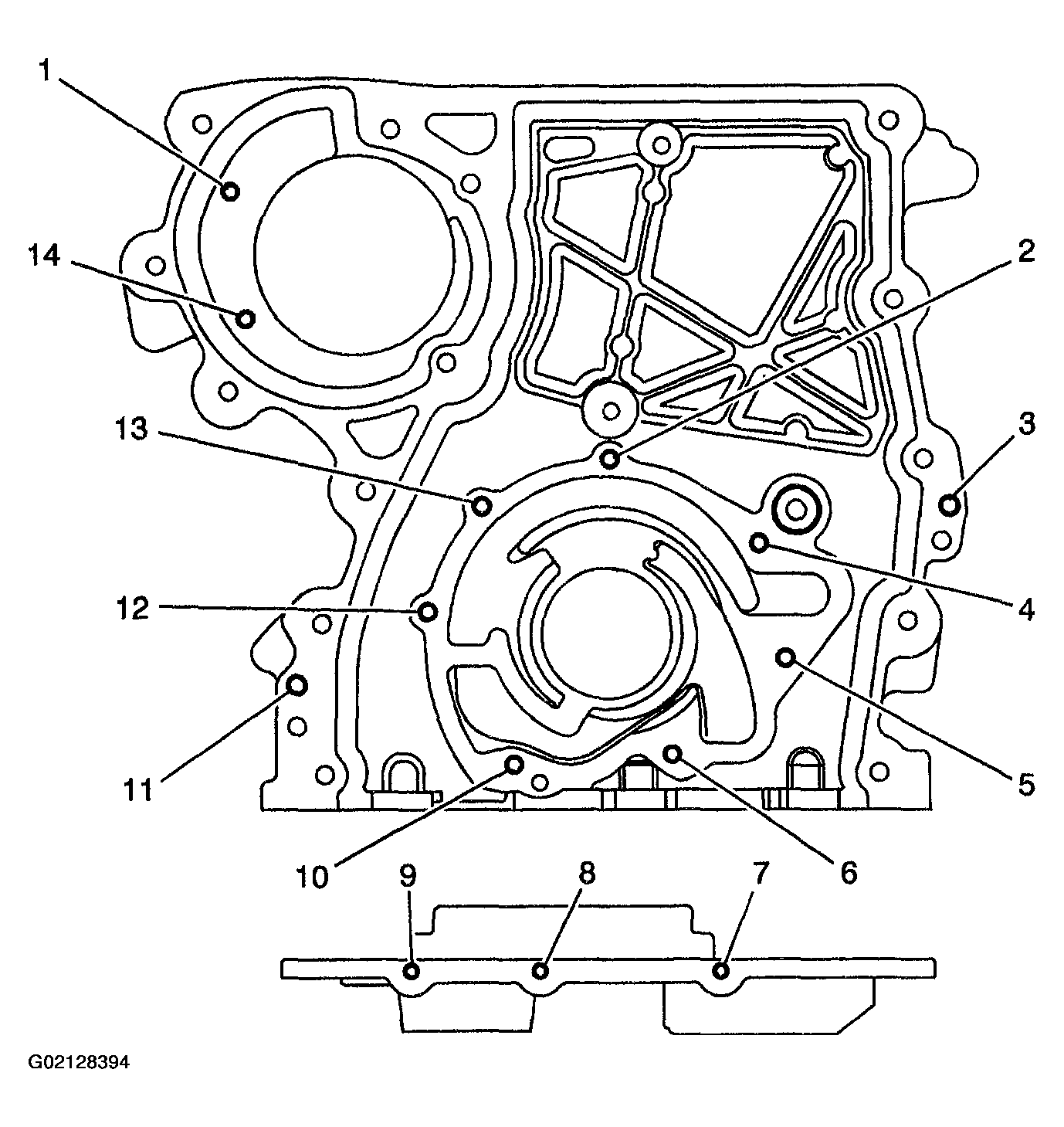

Fig 1: Thread Repair Specifications - Engine Front Cover
Courtesy of GENERAL MOTORS CORP.

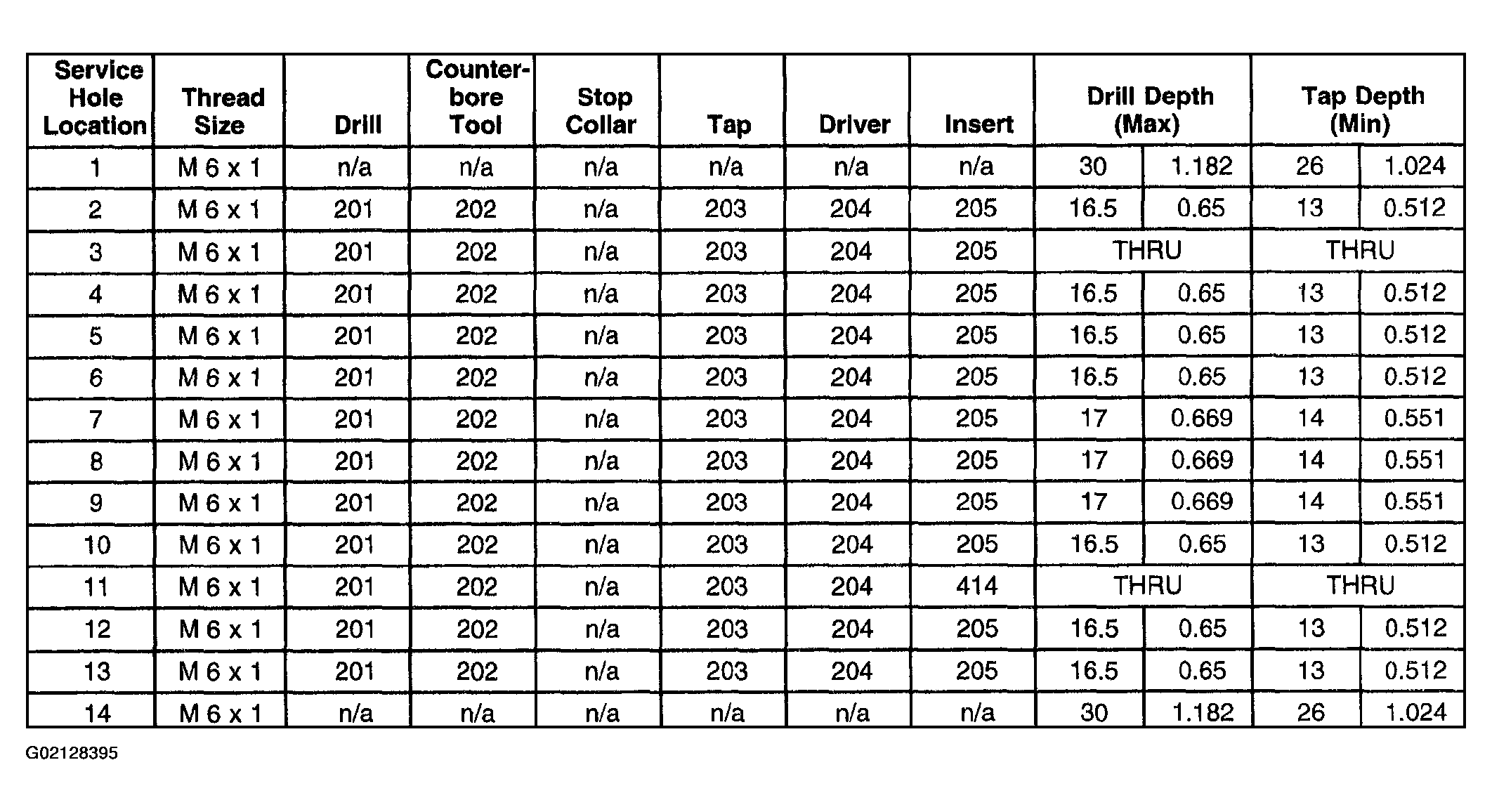

Fig 2: Thread Repair Specifications - Engine Front Cover Callouts
