Cylinder Head - Intake Manifold Deck View

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

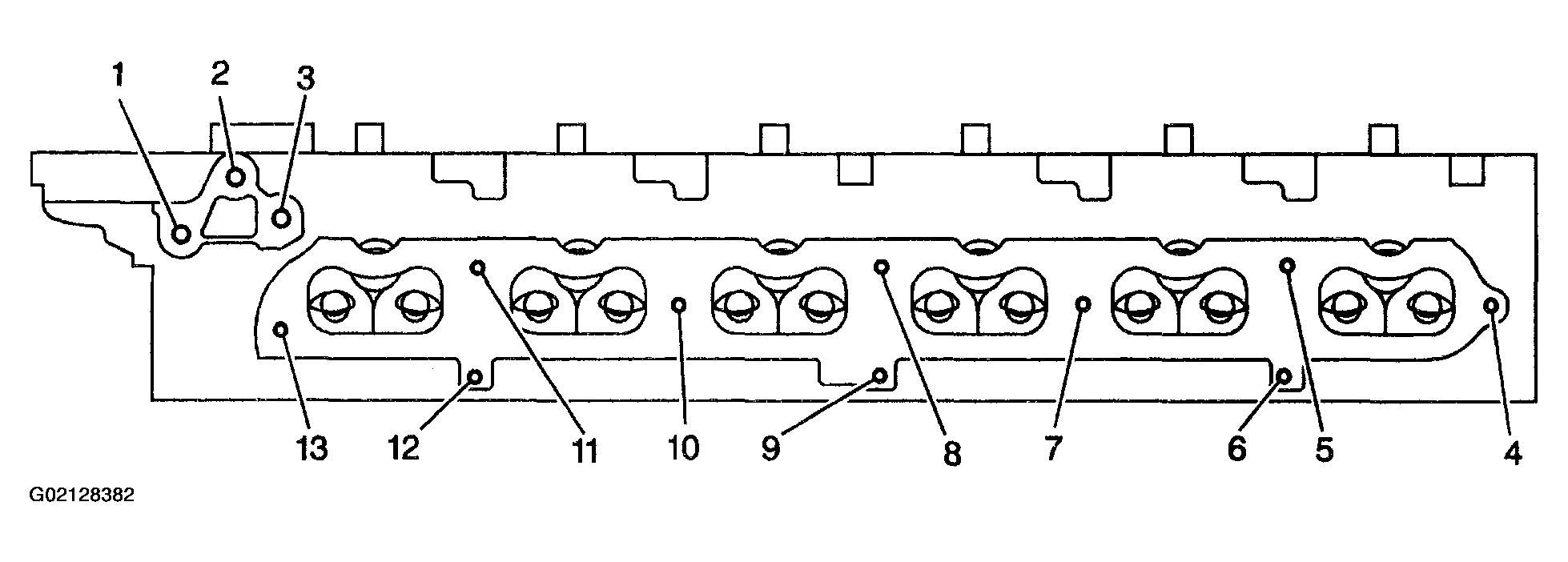

Fig 1: Thread Repair Specifications - Cylinder Head - Intake Manifold Deck View

Courtesy of GENERAL MOTORS CORP.

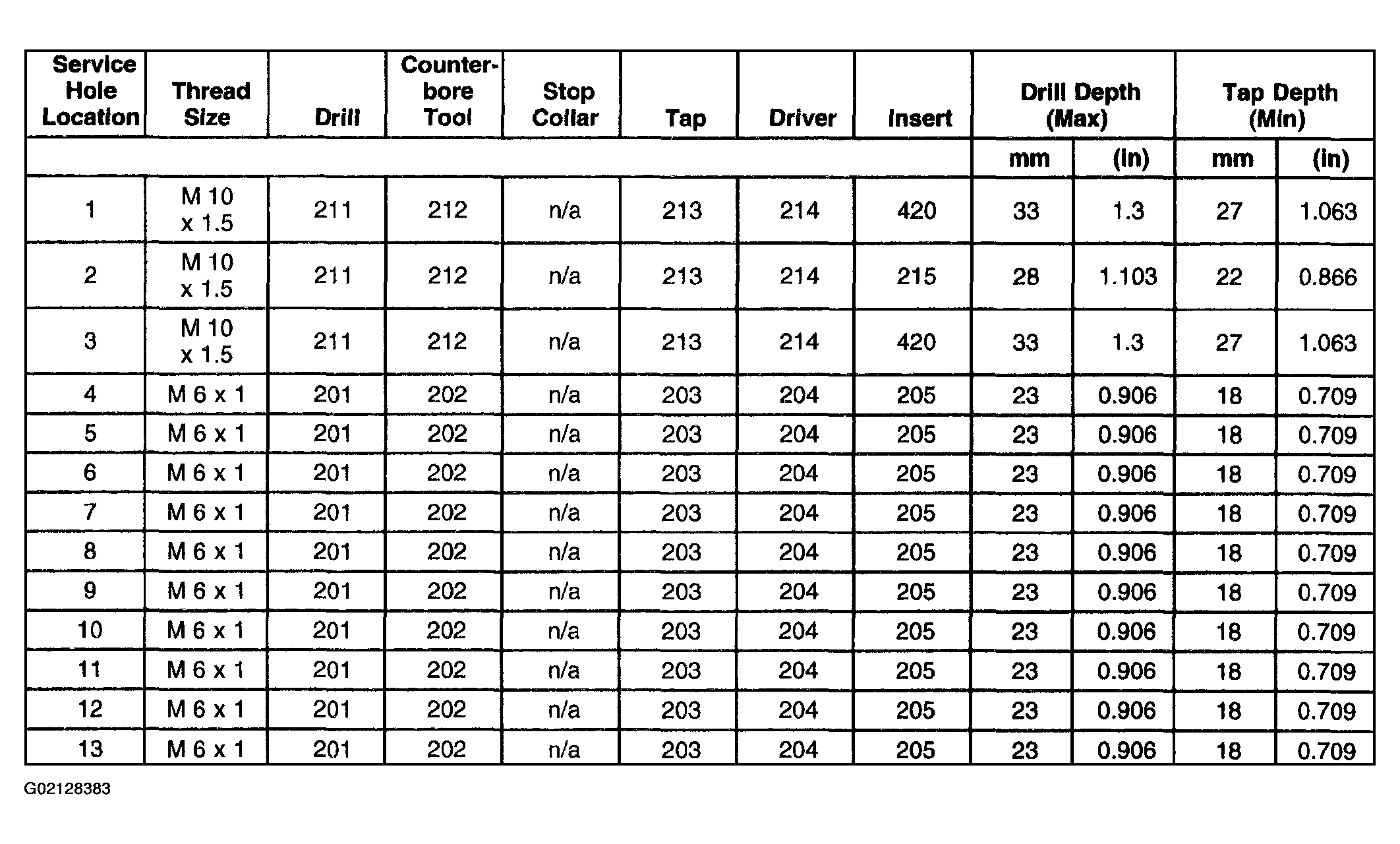

Fig 2: Thread Repair Specifications - Cylinder Head - Intake Manifold Deck View Callouts

Courtesy of GENERAL MOTORS CORP.
