Cylinder Head - End View (Rear)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

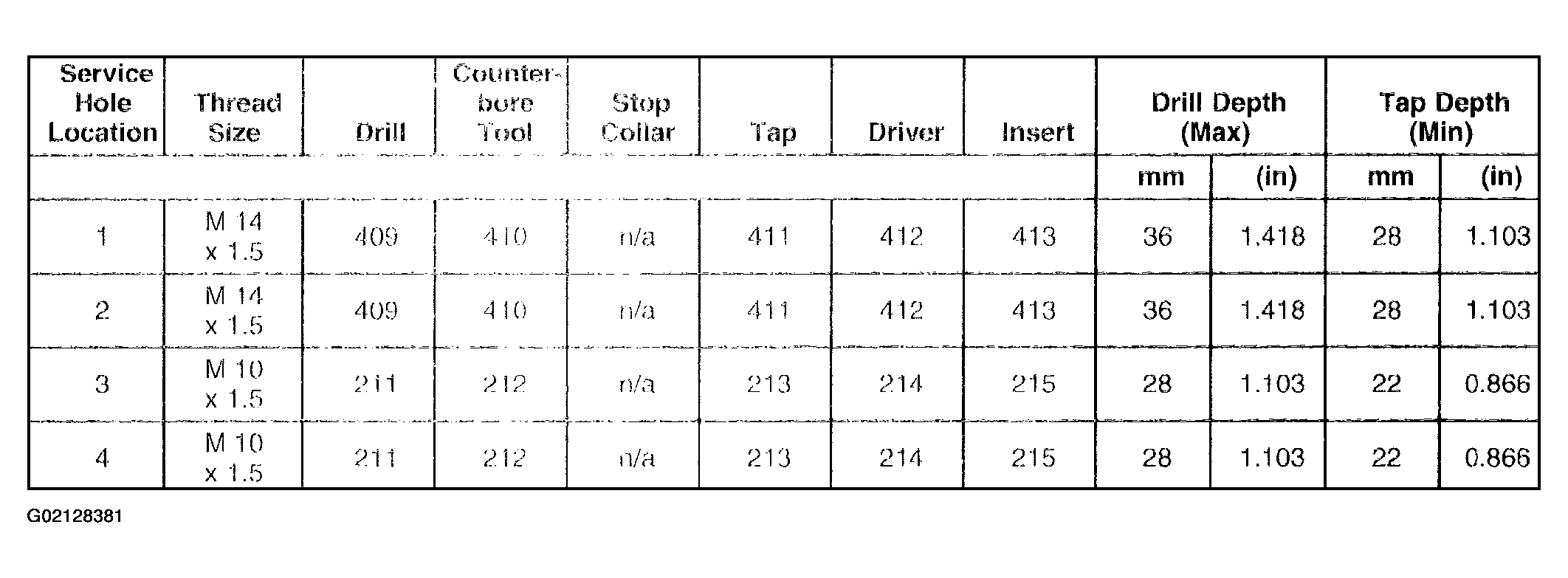

Fig 1: Thread Repair Specifications - Cylinder Head - End View (Rear)

Courtesy of GENERAL MOTORS CORP.

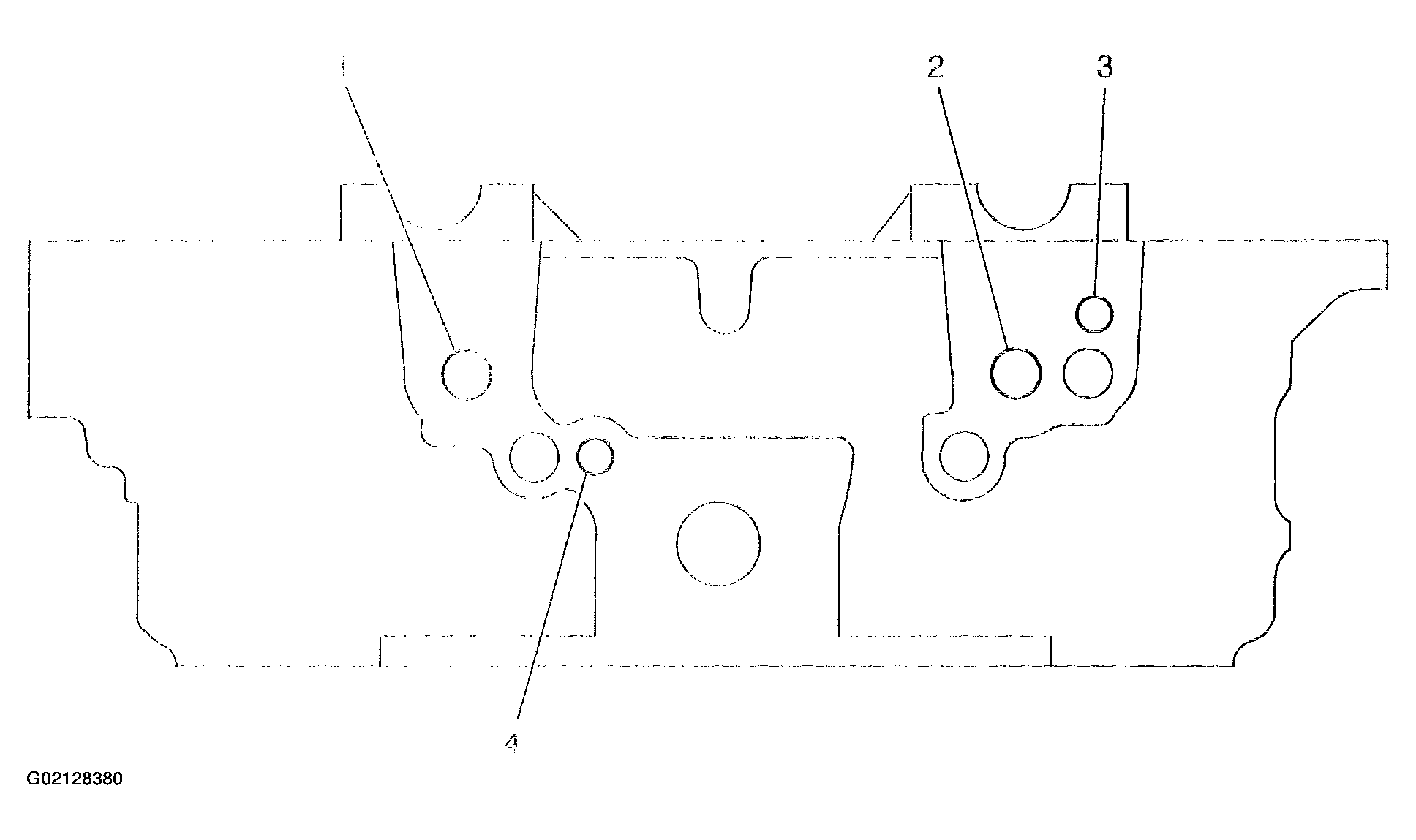

Fig 2: Thread Repair Specifications - Cylinder Head - End View Callouts (Rear)

Courtesy of GENERAL MOTORS CORP.
