Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT   .
  2. Remove the oil pump cover bolts.
  3. Remove the oil pump cover.
  4. Mark the inner and the outer gears in relation to the oil pump housing.
  5. Remove the inner and the outer oil pump gears.
  6. Remove the oil pump pressure relief valve plug.
  7. Remove the oil pump pressure relief valve and the spring.

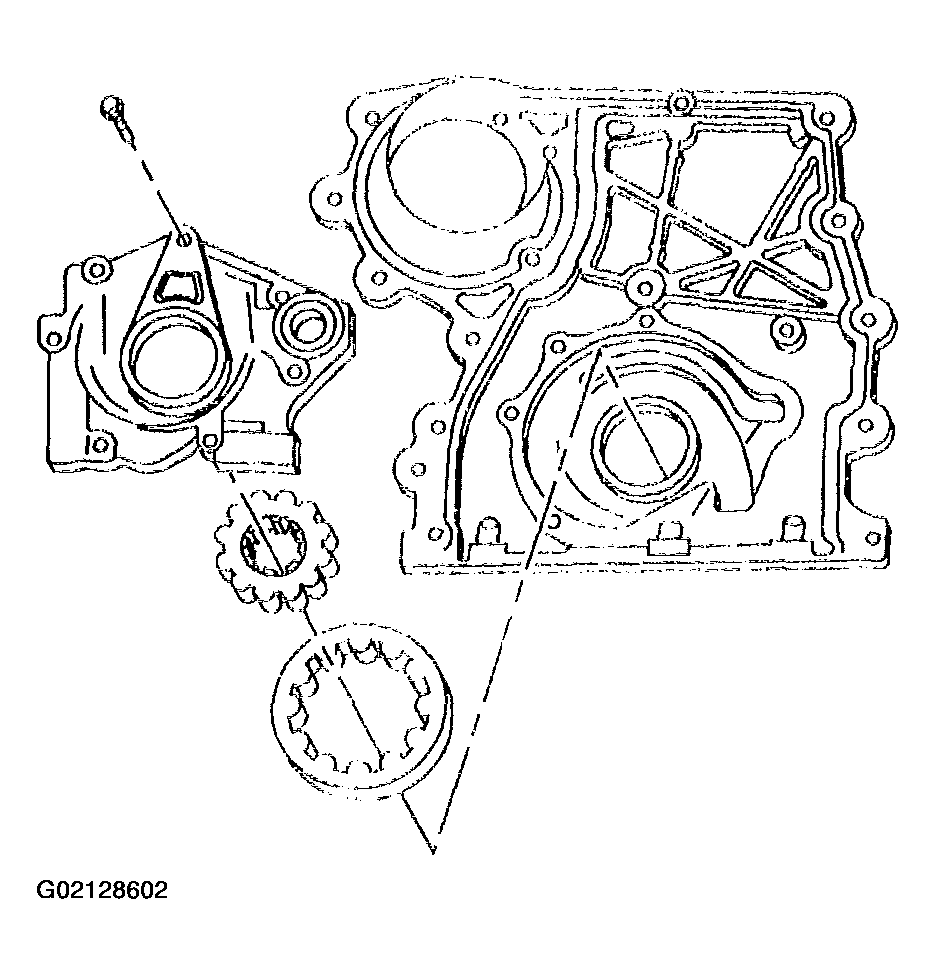

    Fig 1: Removing Oil Pump Cover, Oil Pump Gears And Pressure Relief Valve
    G02128602Courtesy of GENERAL MOTORS CORP.
