Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pump pressure relief valve and the spring.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the oil pump pressure relief valve plug.

    Tighten

    Tighten the oil pump pressure relief valve to 14 N.m (124 lb in).

  3. Install the oil pump outer and inner gears as removed.
  4. Install the oil pump cover.
  5. Install the oil pump cover bolts.

    Tighten

    Tighten the oil pump cover bolts to 10 N.m (89 lb in).

  6. Install the front cover. Refer to ENGINE FRONT COVER REPLACEMENT   .

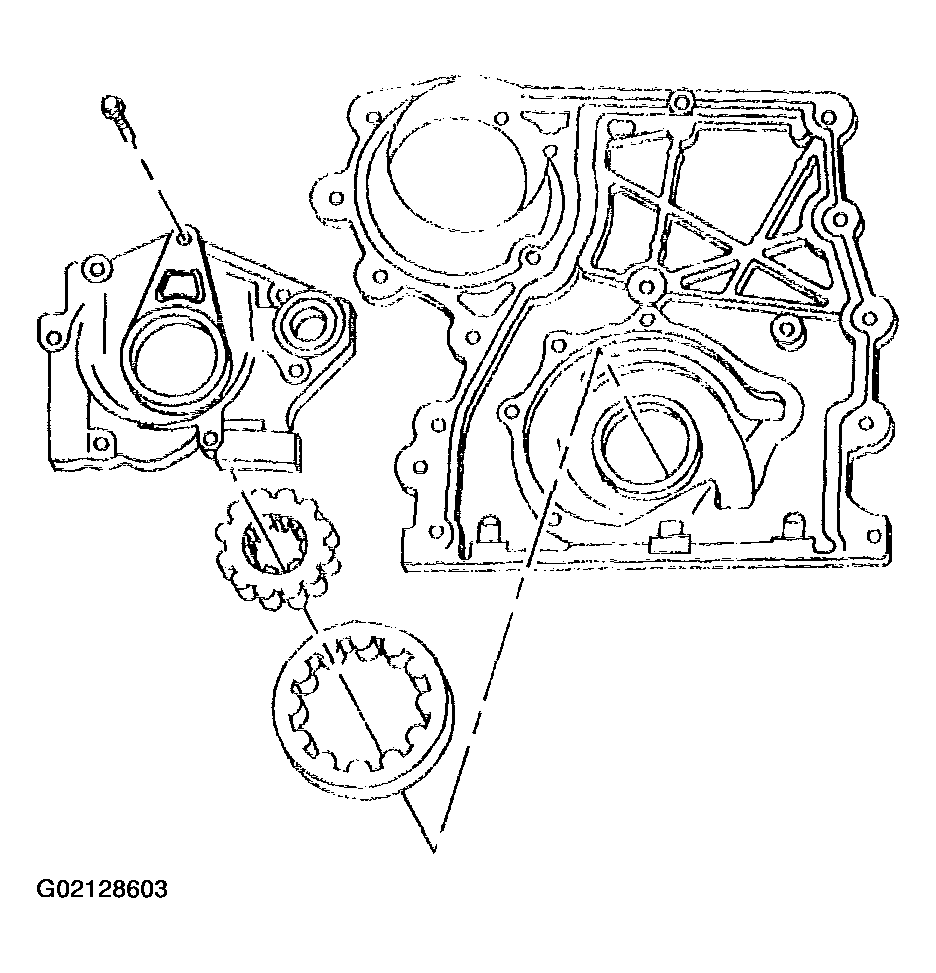

    Fig 1: Installing Oil Pump Cover, Oil Pump Gears And Pressure Relief Valve
    G02128603Courtesy of GENERAL MOTORS CORP.
