Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Graphic shows left, right is similar.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the right frame engine mount bracket, if removed.
  2. Install the right frame engine mount bracket bolts, if removed.

    Tighten

    Tighten the mount bracket bolts to 110 N.m (81 lb ft).

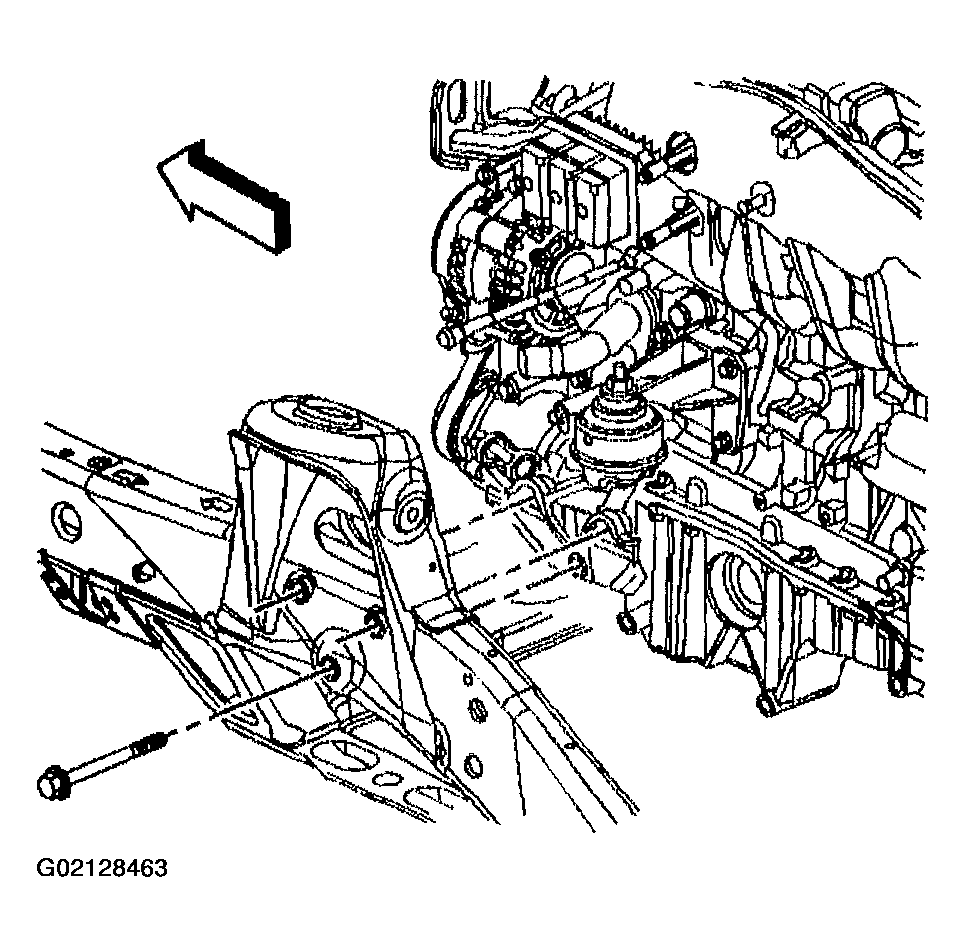

    Fig 1: Installing Right Frame Engine Mount Bracket
    G02128463Courtesy of GENERAL MOTORS CORP.
    3. NOTE: Graphic shows left, right is similar.

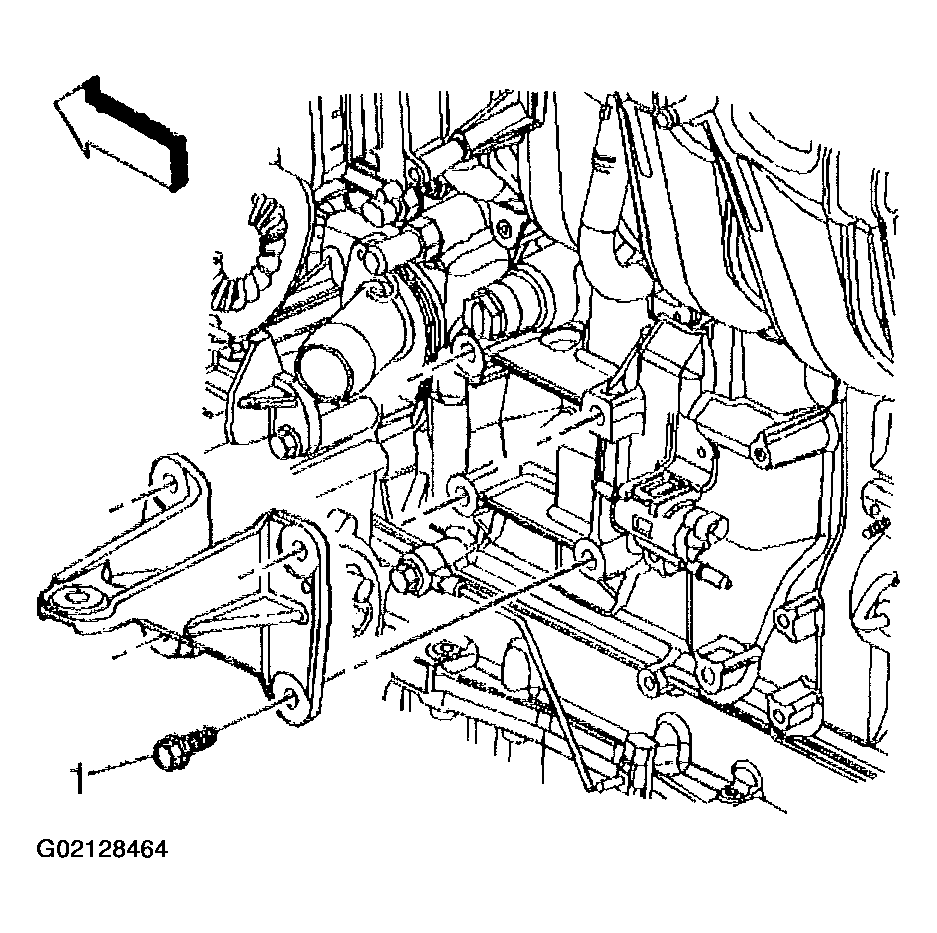

    Fig 2: Installing Right Engine Mount Bracket
    G02128464Courtesy of GENERAL MOTORS CORP.
  3. Install the right engine mount bracket and secure with the bolts (1).

    Tighten

    Tighten the engine mount bracket bolts to 50 N.m (37 lb ft).

  4. Install the right engine mount.
  5. Lower the engine onto the engine mounts.

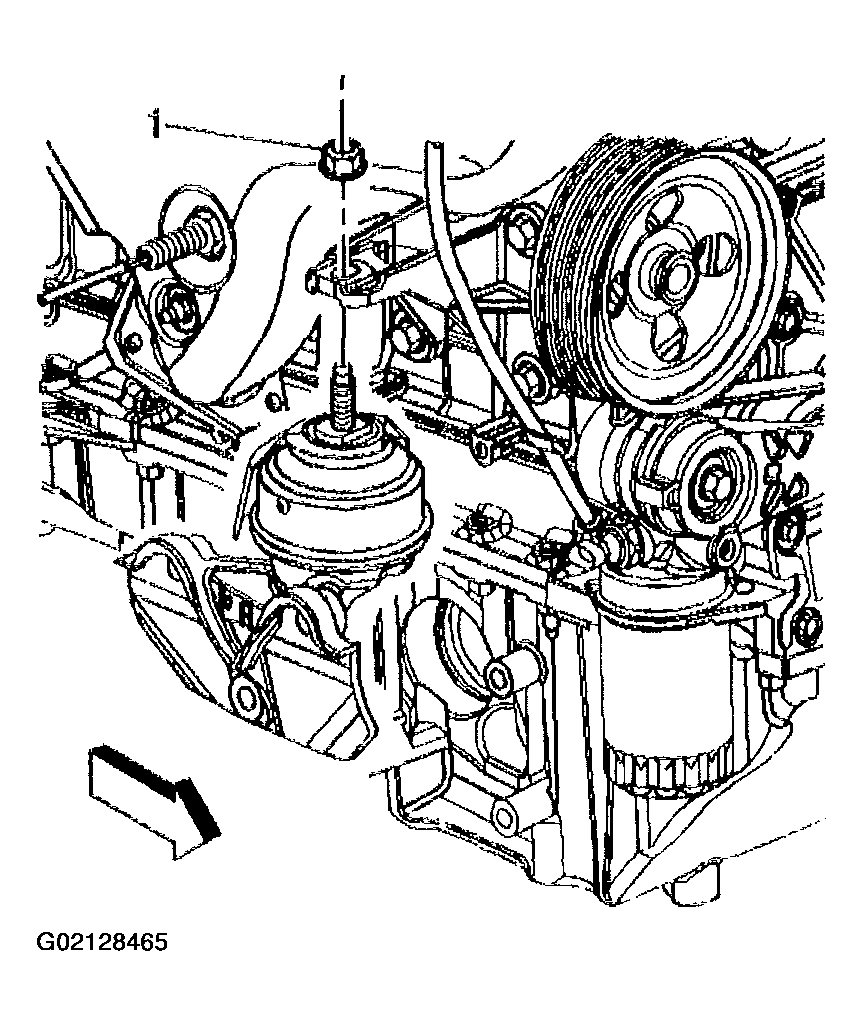

    Fig 3: Installing Right Engine Mount
    G02128465Courtesy of GENERAL MOTORS CORP.
  6. Install the right and the left upper engine mount nuts.

    Tighten

    Tighten the upper engine mount nuts to 70 N.m (52 lb ft).

  7. Raise the vehicle and remove the floor jack from under the vehicle.

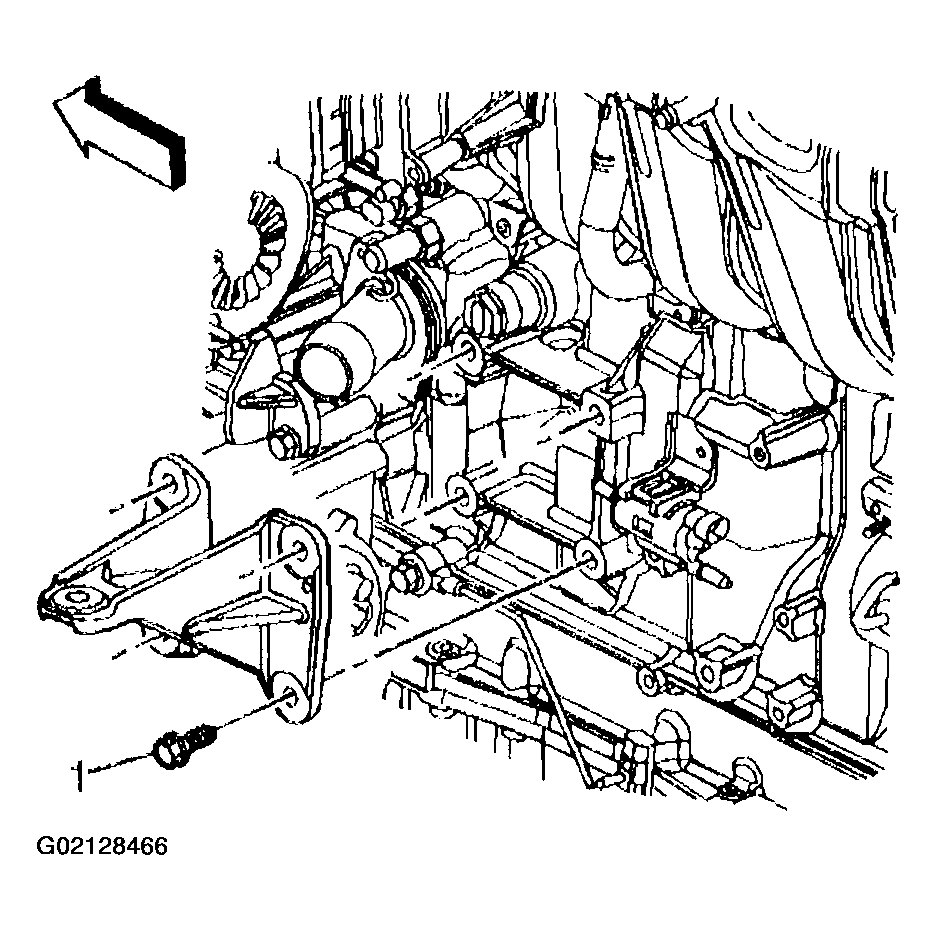

    Fig 4: Installing Engine Mount Nuts
    G02128466Courtesy of GENERAL MOTORS CORP.
  8. Install the engine protection shield and secure with the bolts.

    Tighten

    Tighten the engine protection shield bolts to 25 N.m (18 lb ft).

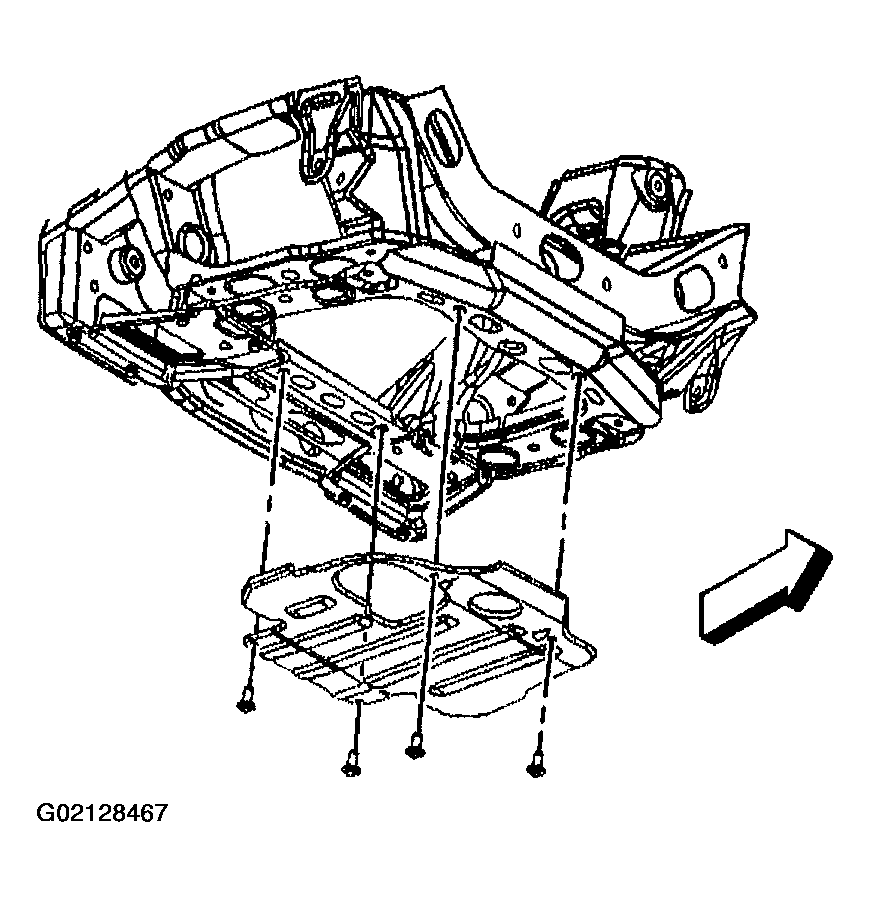

    Fig 5: Installing Engine Protection Shield
    G02128467Courtesy of GENERAL MOTORS CORP.
  9. Install the right and the left lower engine mount nuts.

    Tighten

    Tighten the lower engine mount nuts to 70 N.m (52 lb ft).

  10. Lower the vehicle.
  11. Install the right shock module. Refer to SHOCK MODULE REPLACEMENT  in Front Suspension.

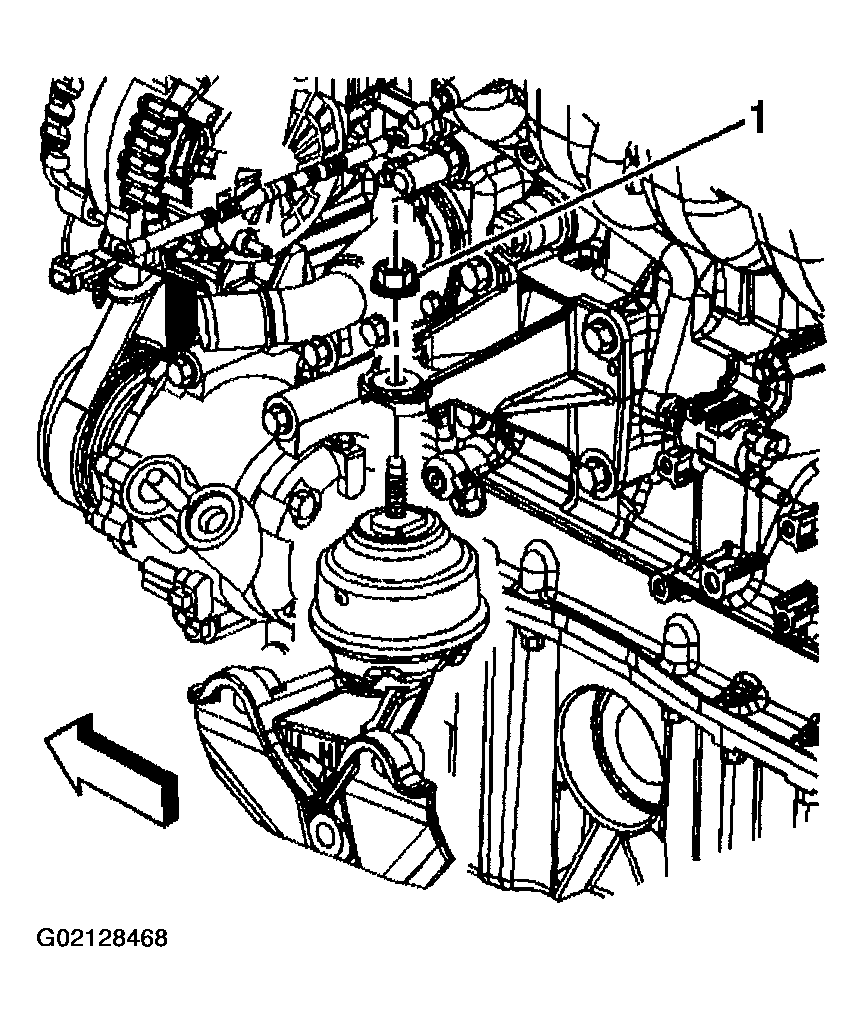

    Fig 6: Installing Lower Engine Mount Nuts
    G02128468Courtesy of GENERAL MOTORS CORP.
  12. Install the MAP sensor (2).
  13. Install the MAP sensor retainer (1) and the electrical connector.

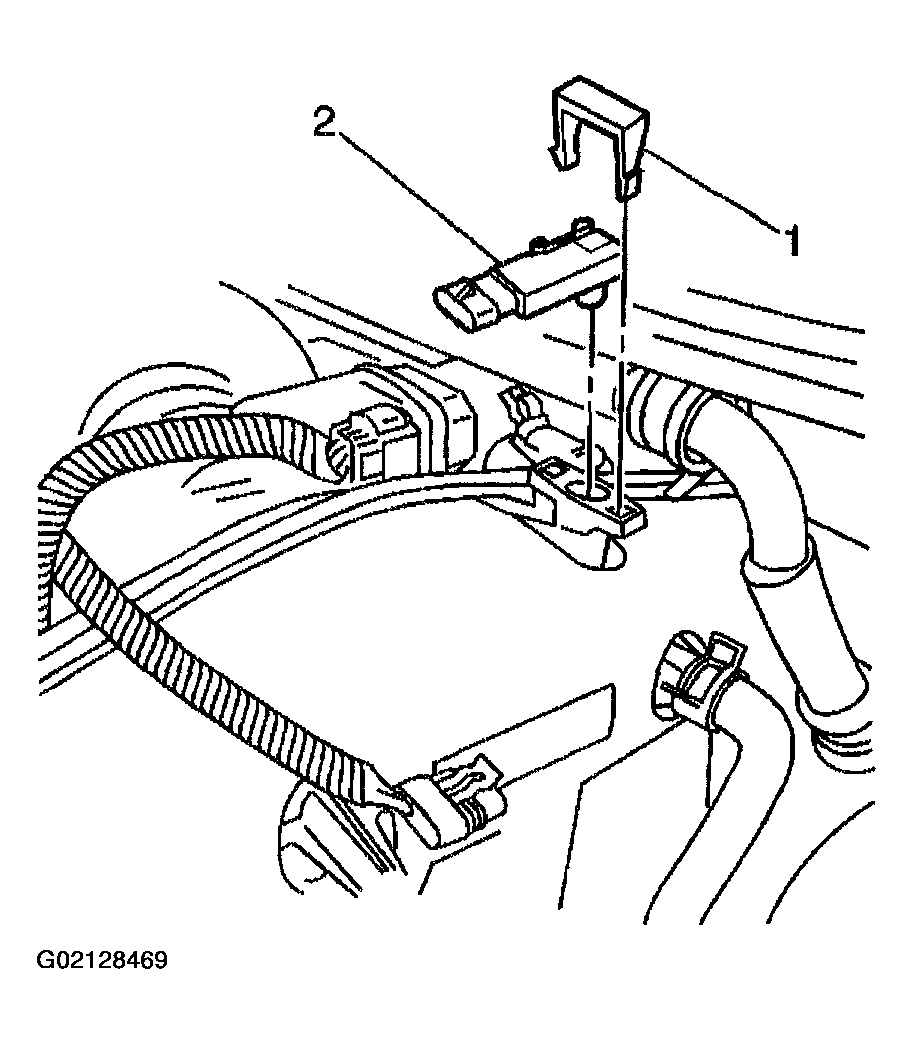

    Fig 7: Install the MAP Sensor, MAP Sensor Retainer And Electrical Connector
    G02128469Courtesy of GENERAL MOTORS CORP.

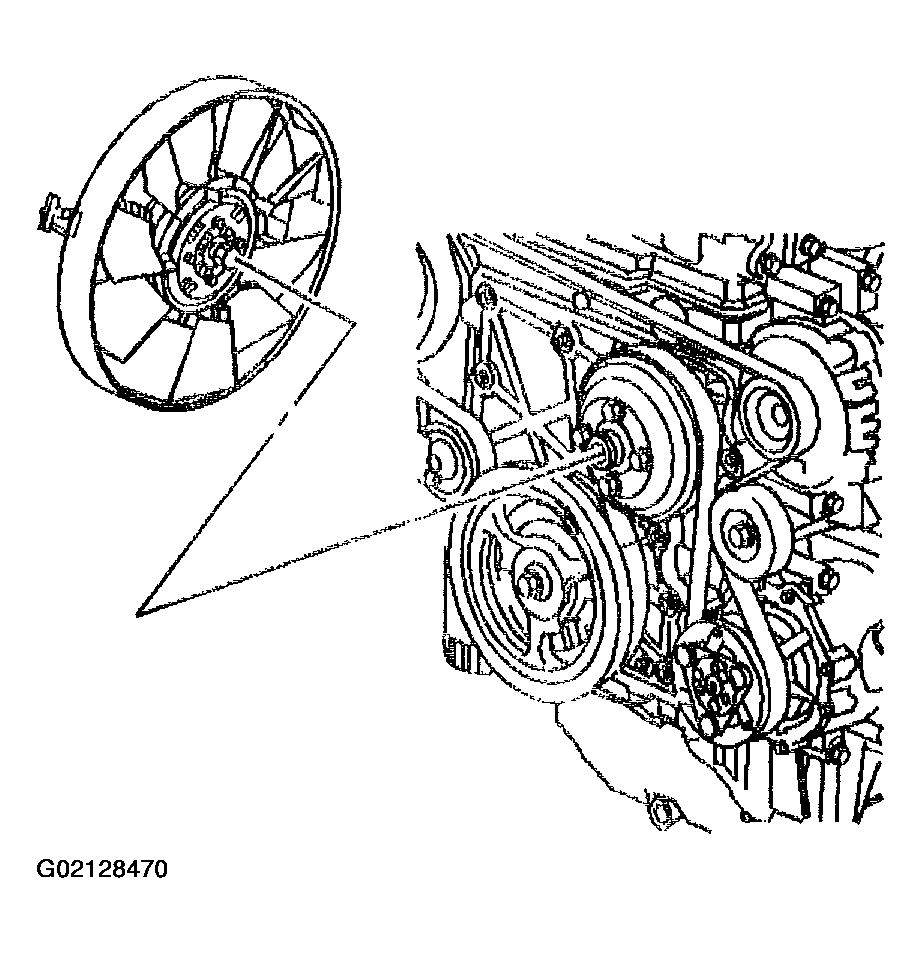

    14. Fig 8: Installing Cooling Fan
    G02128470Courtesy of GENERAL MOTORS CORP.
  14. Connect the cooling fan hub nut to the water pump shaft.Using J 46406, install the fan clutch to the water pump pulley
  15. Connect the fan clutch electrical connector
  16. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Engine Electrical.
