Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to TRANSMISSION .
    IMPORTANT: Note the position and the direction of the engine flywheel before removal.
  2. Remove the flywheel bolts.
  3. Remove the flywheel.
  4. Clean and Inspect the flywheel. Refer to ENGINE FLYWHEEL CLEANING AND INSPECTION   .

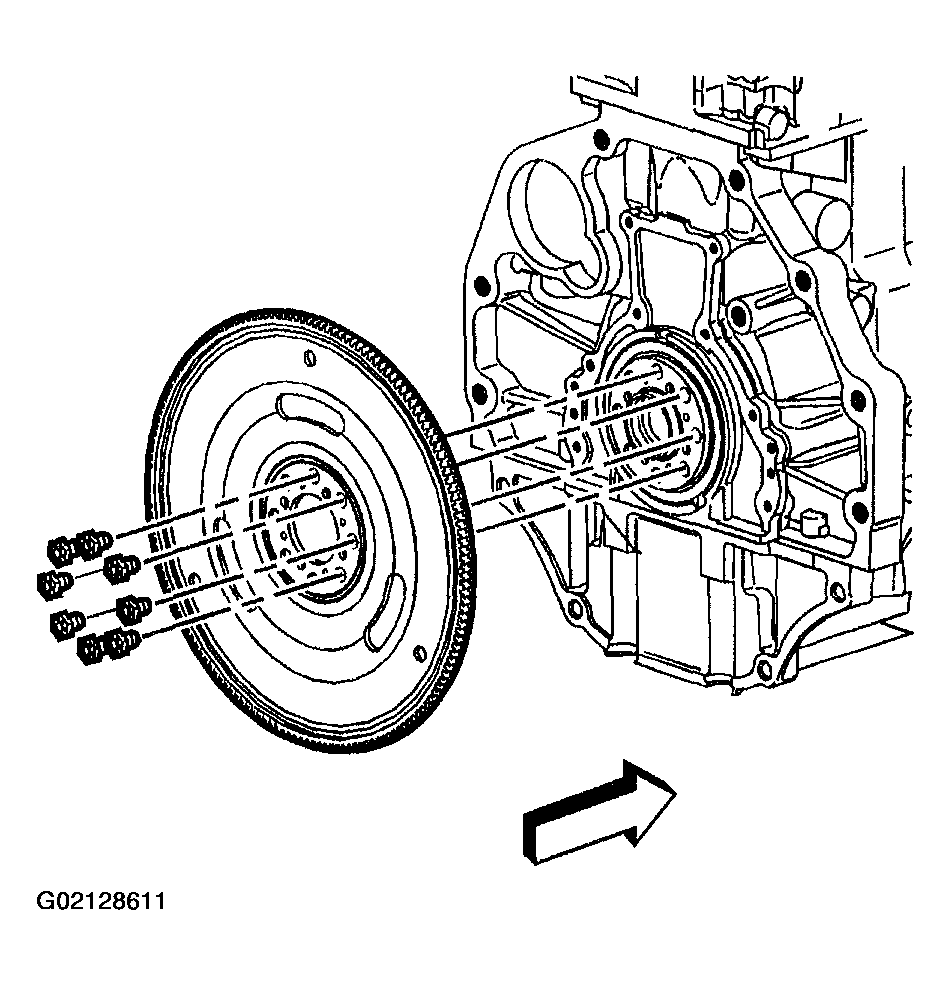

    Fig 1: Removing Flywheel
    G02128611Courtesy of GENERAL MOTORS CORP.
