Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drivebelt. Refer to DRIVE BELT REPLACEMENT   .
  2. Inspect the drivebelt. Change the drivebelt as necessary.
  3. Using a wrench loosen and remove the drivebelt tensioner bolt.
  4. Remove the drivebelt tensioner.

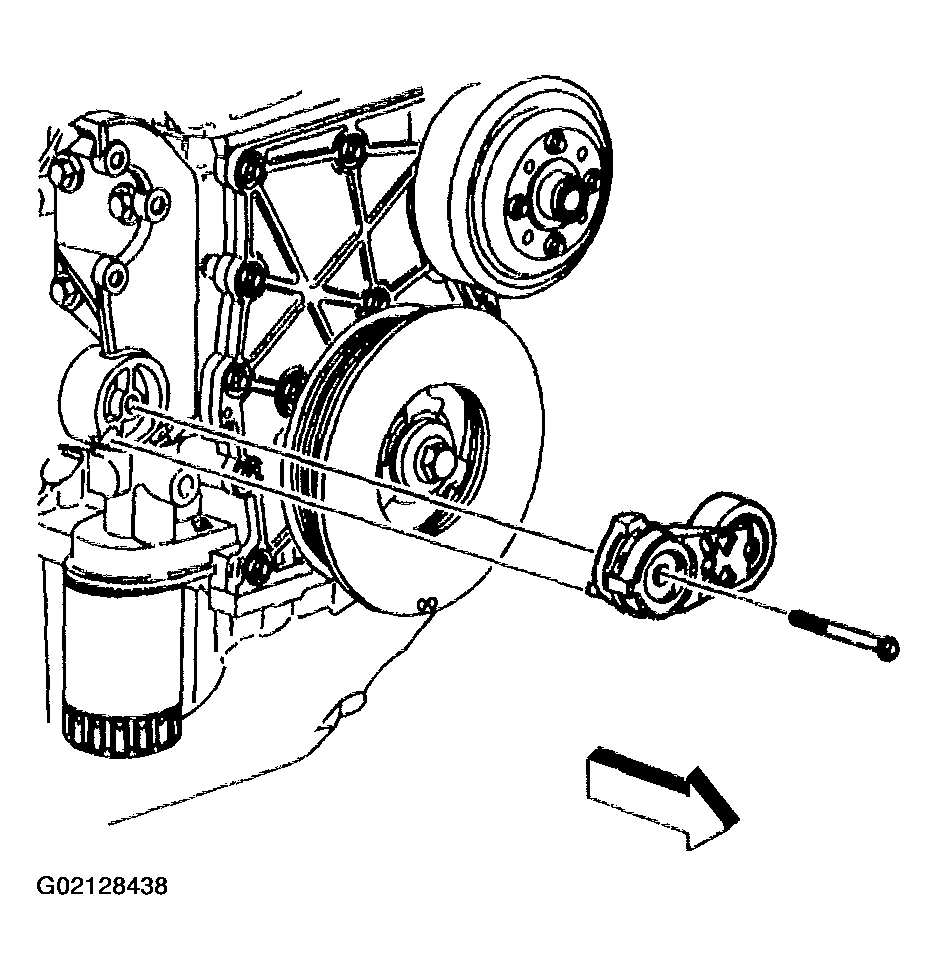

    Fig 1: Removing Drivebelt Tensioner
    G02128438Courtesy of GENERAL MOTORS CORP.
