Water Outlet Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water outlet
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the water outlet bolts.

    Tighten

    Tighten the water outlet bolts to 10 N.m (89 lb in).

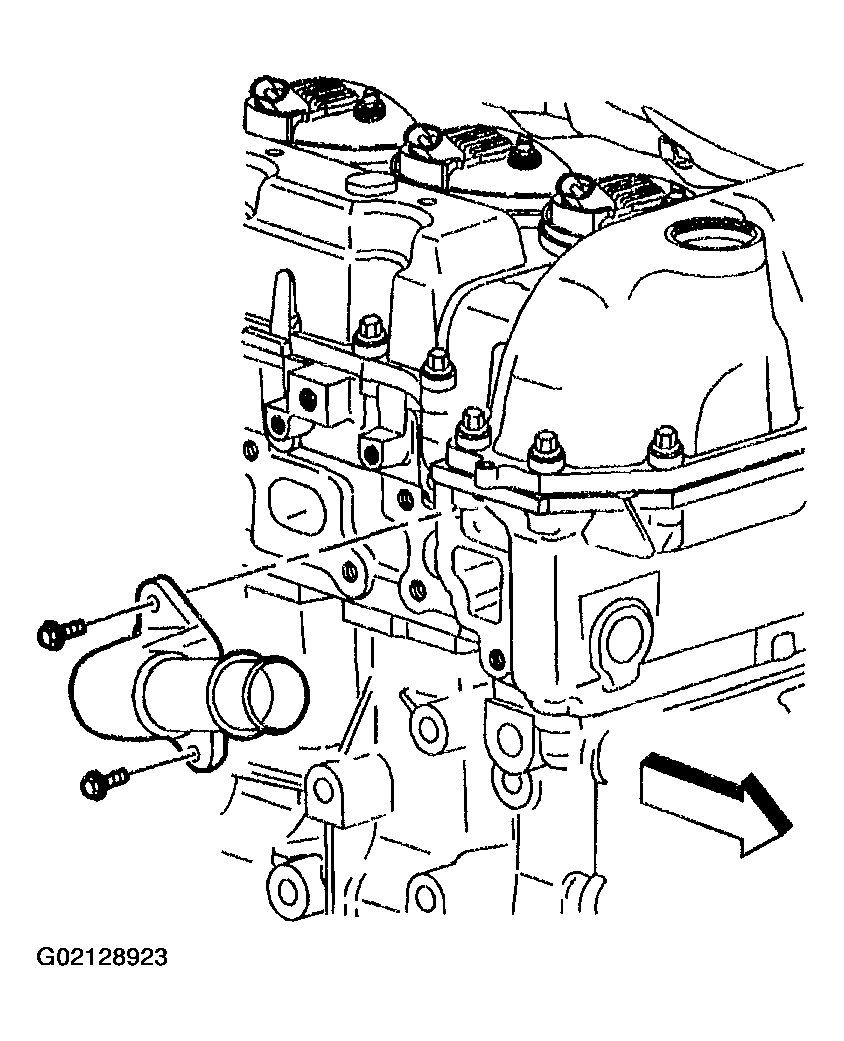

    Fig 1: Installing Water Outlet And Bolts
    G02128923Courtesy of GENERAL MOTORS CORP.
