Thermostat Housing Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat housing.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the thermostat housing bolts.

    Tighten

    Tighten the thermostat housing bolts to 10 N.m (89 lb in).

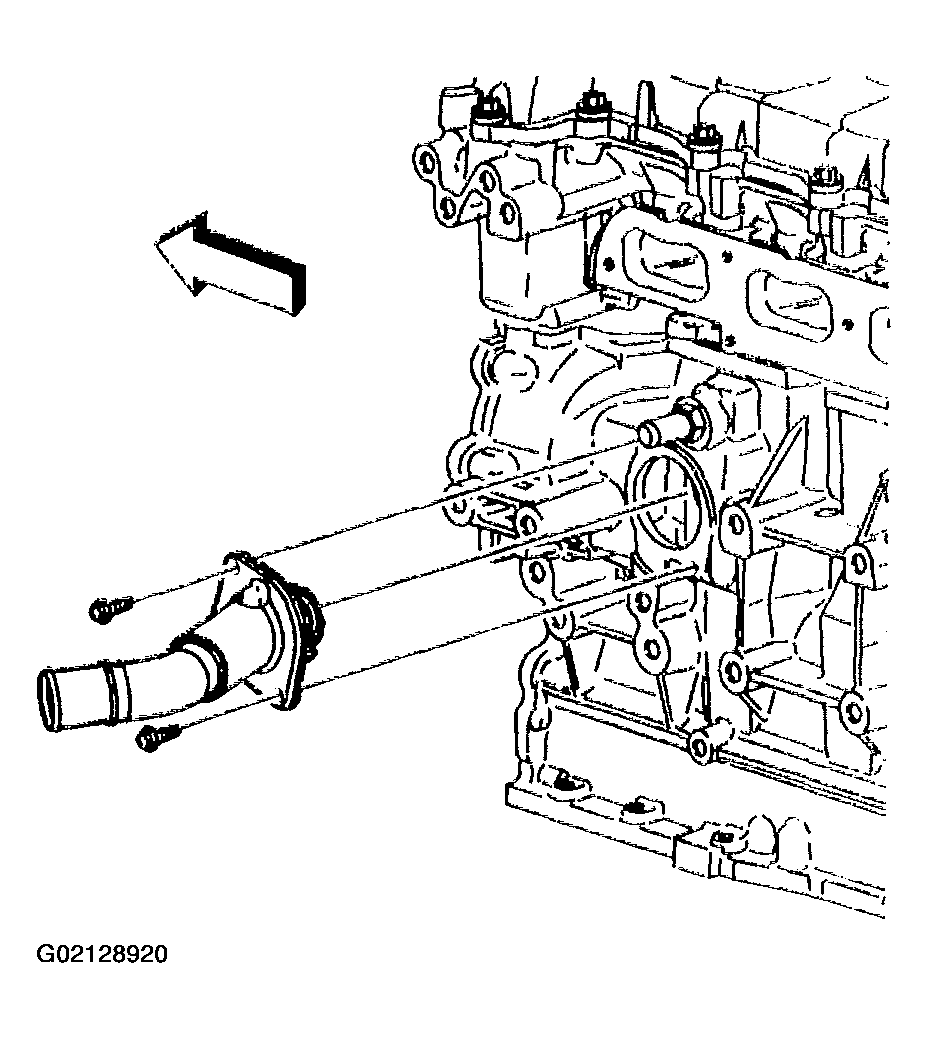

    Fig 1: Installing Thermostat Housing
    G02128920Courtesy of GENERAL MOTORS CORP.
