Power Steering Pump Bracket Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump bracket bolts.
  2. Remove the power steering pump bracket.

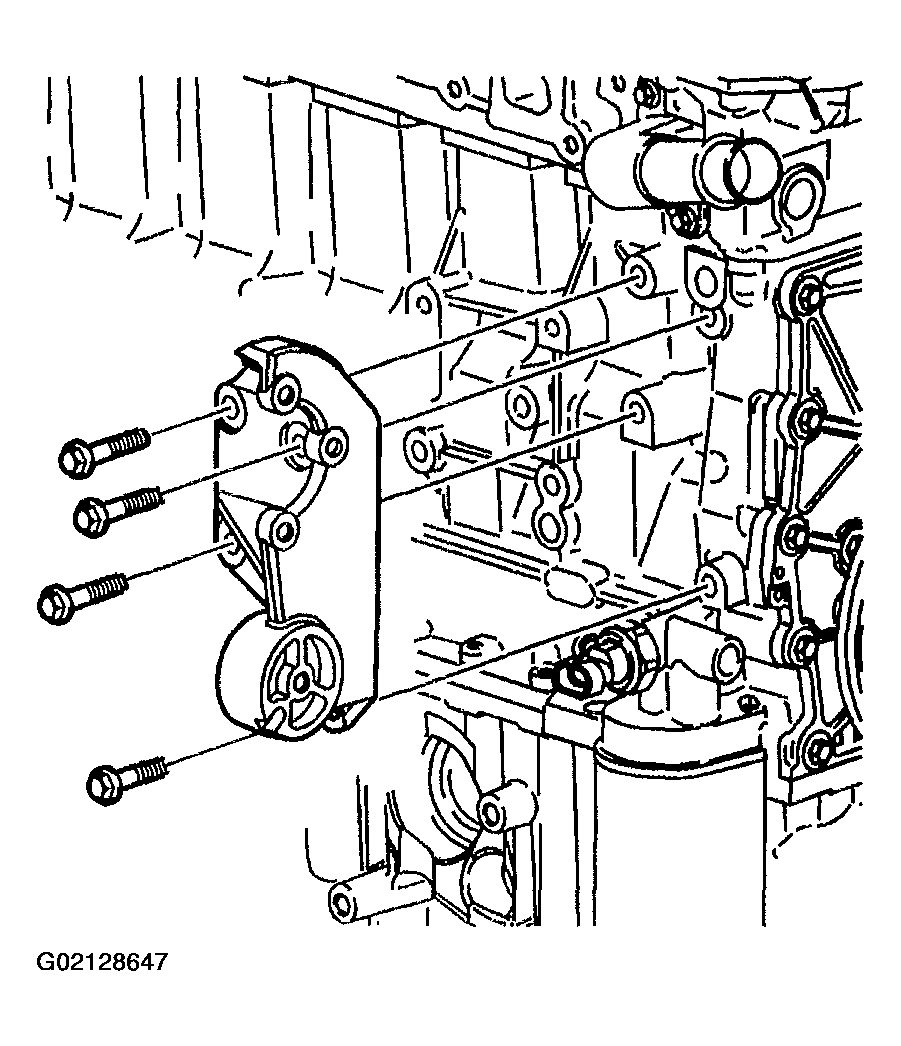

    Fig 1: Removing Power Steering Pump Bracket
    G02128647Courtesy of GENERAL MOTORS CORP.
