Power Steering Pump Bracket Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering pump bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering pump bracket bolts.

    Tighten

    Tighten the power steering pump bracket bolts to 50 N.m (37 lb ft).

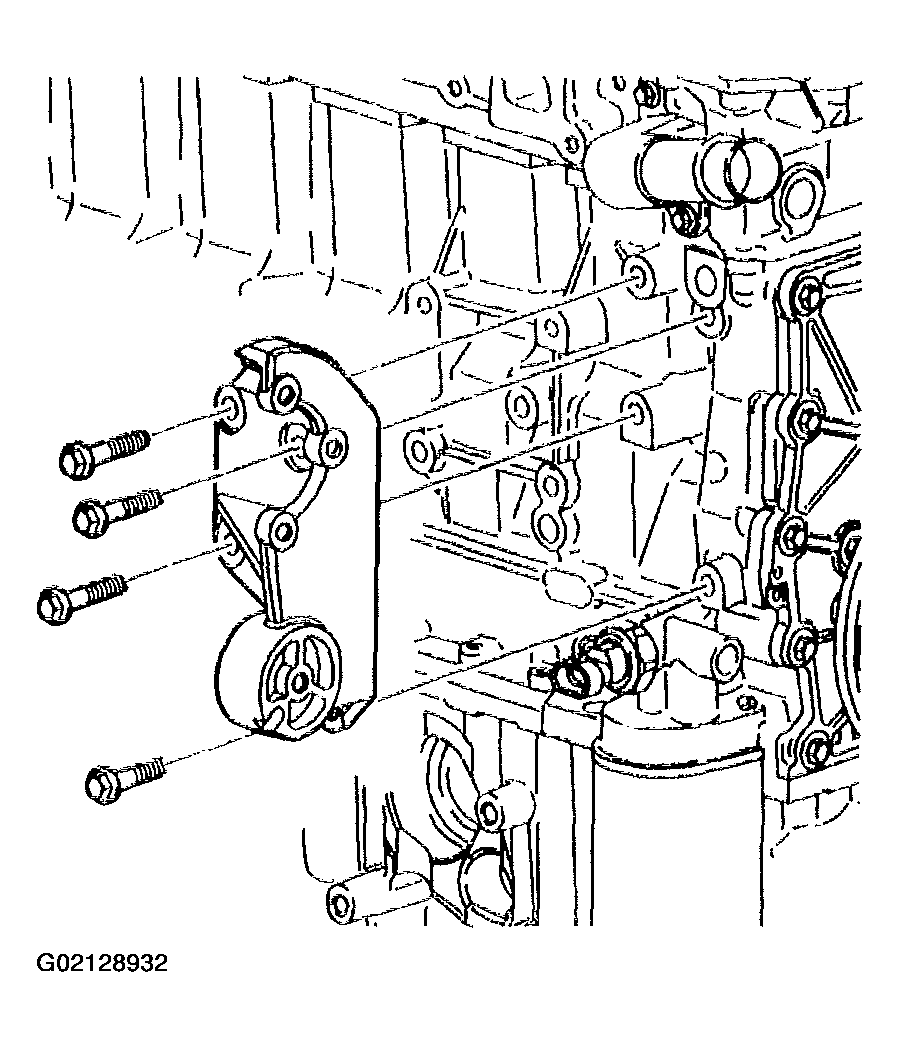

    Fig 1: Installing Power Steering Pump Bracket & Bolts
    G02128932Courtesy of GENERAL MOTORS CORP.
