Oil Pump Pipe and Screen Assembly Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump pipe bolts.
  2. Remove the oil pump pipe.

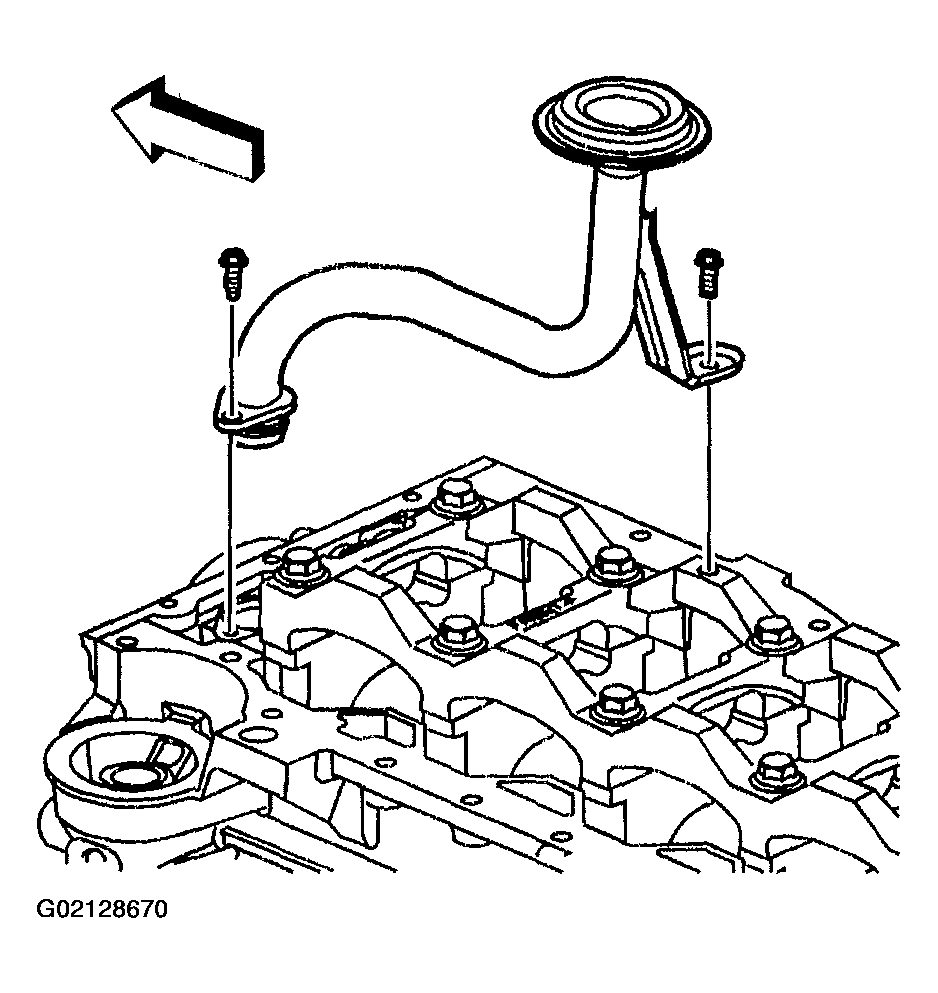

    Fig 1: Removing Oil Pump Pipe
    G02128670Courtesy of GENERAL MOTORS CORP.
