Oil Pump Pipe and Screen Assembly Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new oil pump pipe O-ring.
  2. Install the oil pump pipe and screen assembly.
  3. Add sealant GM P/N United States 12346004, GM P/N Canada 10953480 to the oil pump pipe bolt threads.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the oil pump pipe and screen assembly bolts.

    Tighten

    Tighten the oil pump pipe and screen assembly bolts to 10 N.m (89 lb in).

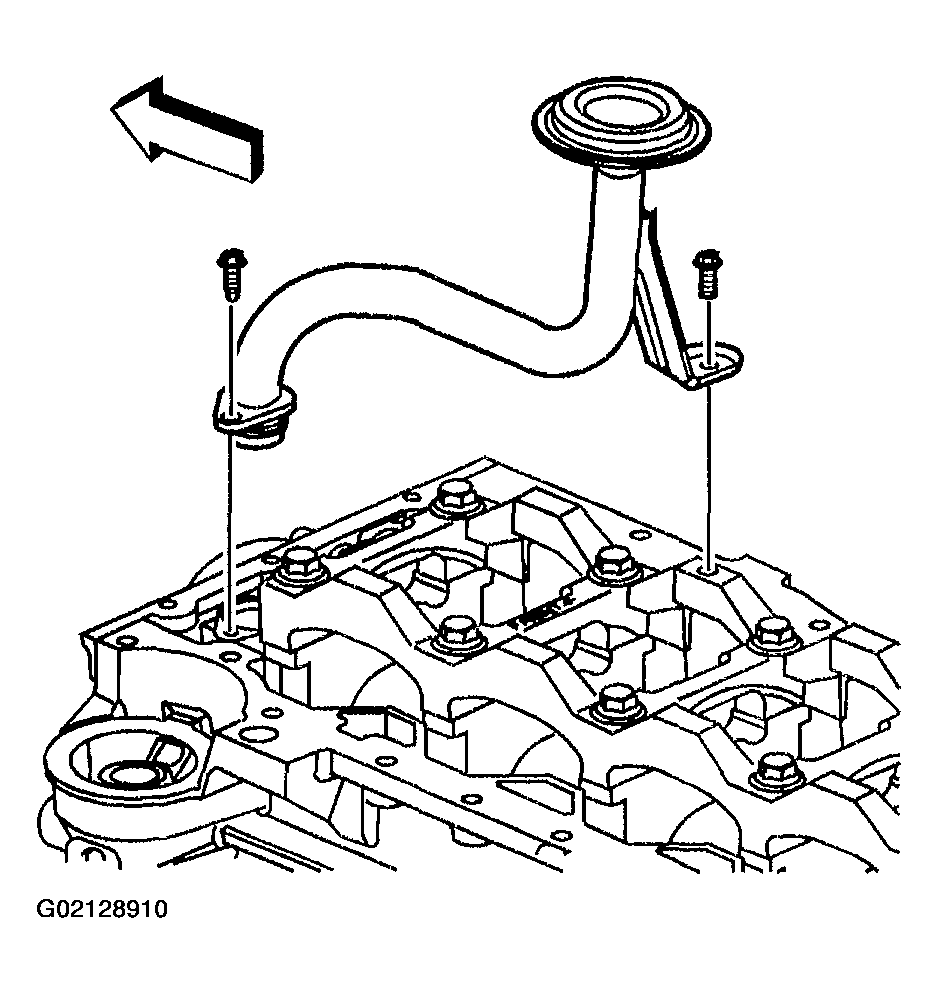

    Fig 1: Installing New Oil Pump Pipe & Screen
    G02128910Courtesy of GENERAL MOTORS CORP.
