Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Remove the oil level indicator tube stud.
  3. Remove the oil level indicator tube.

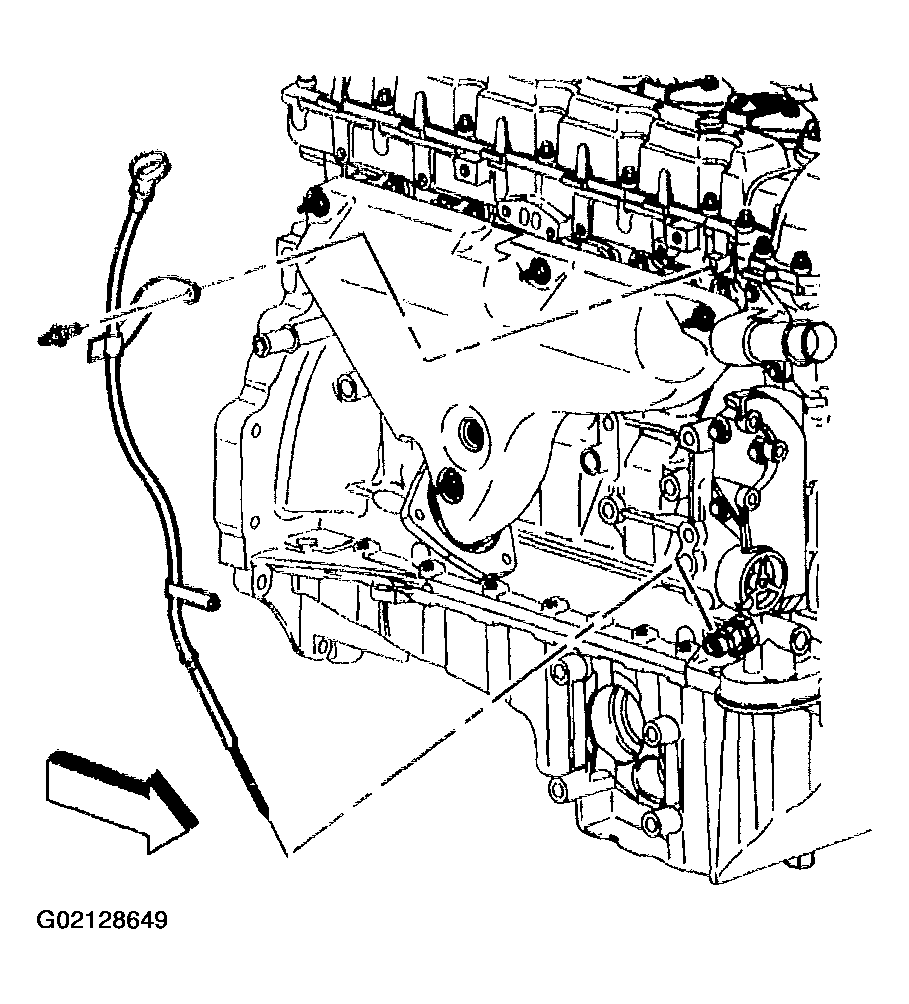

    Fig 1: Removing Oil Level Indicator & Tube
    G02128649Courtesy of GENERAL MOTORS CORP.
