Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level indicator tube.
  2. Add sealant GM P/N United States 12346004, GM P/N Canada 10953480 to the oil level indicator tube stud threads.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the oil level indicator tube stud.

    Tighten

    Tighten the oil level indicator tube stud to 10 N.m (89 lb in).

  4. Install the oil level indicator.

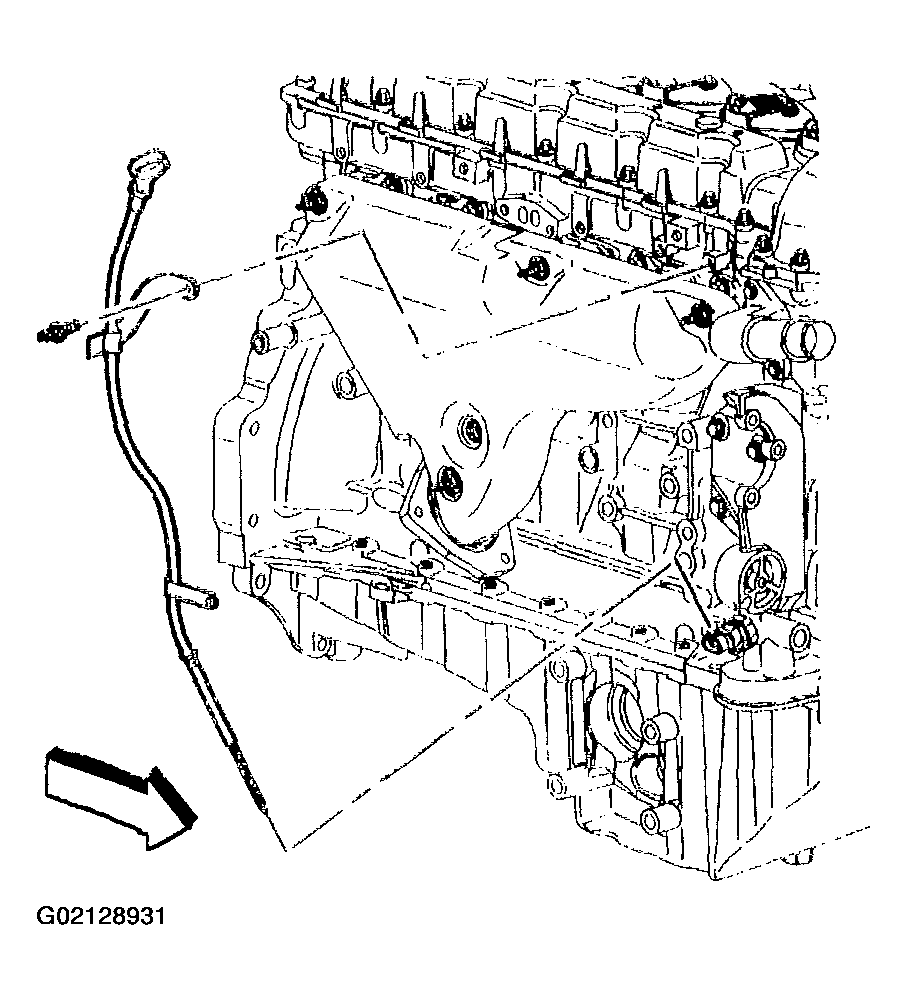

    Fig 1: Installing Oil Level Indicator & Tube
    G02128931Courtesy of GENERAL MOTORS CORP.
