Intake Manifold Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the throttle control module bolts.
Remove the throttle control module.
Remove the throttle control module gasket.

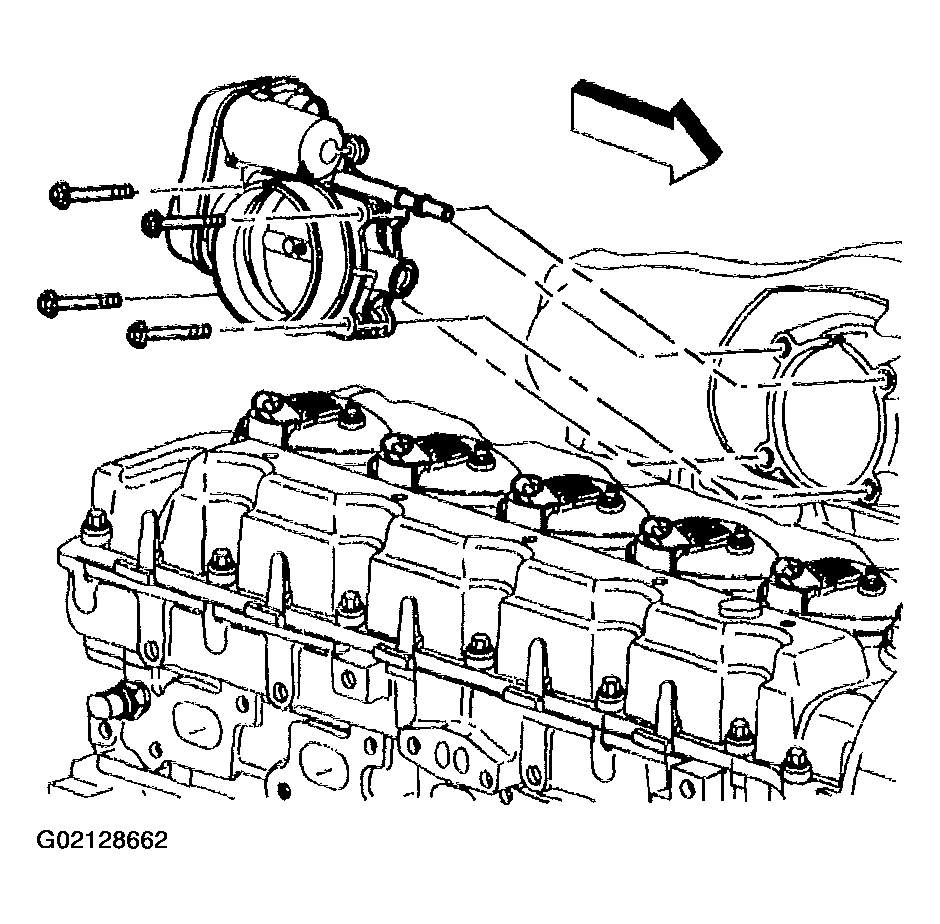

Fig 1: Removing Throttle Control Module
Courtesy of GENERAL MOTORS CORP.
Remove the crankcase ventilation hose.

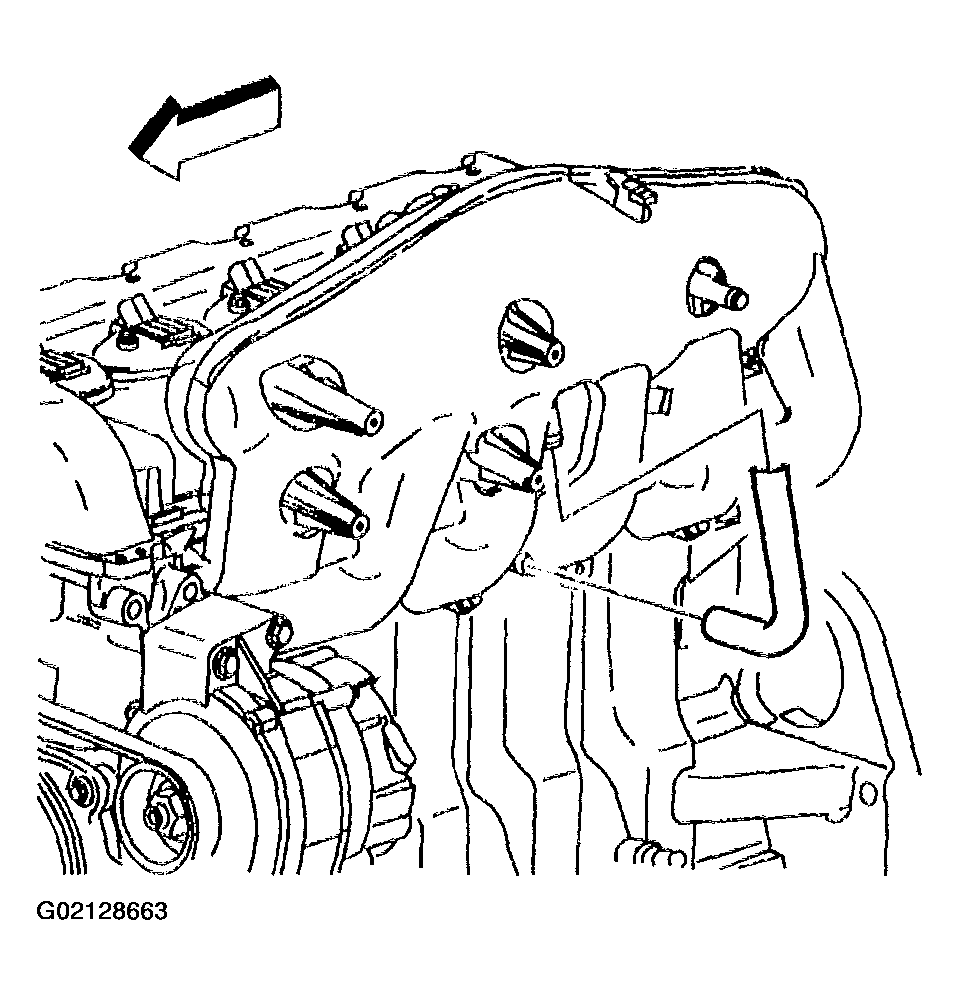

Fig 2: Removing Crankcase Ventilation Hose
Courtesy of GENERAL MOTORS CORP.
Remove the intake manifold and bolts.

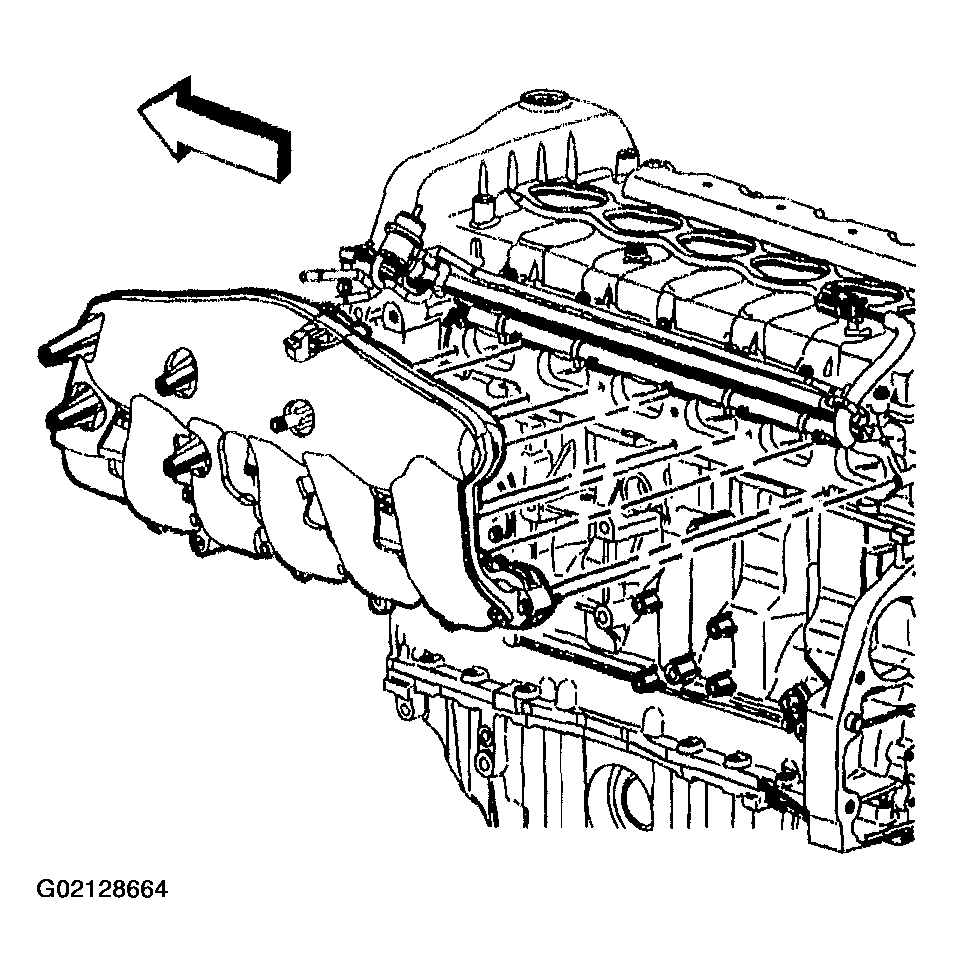

Fig 3: Removing Intake Manifold
Courtesy of GENERAL MOTORS CORP.
