Heater Outlet Hose Fitting Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480 or equivalent to the heater outlet hose fitting threads.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the heater outlet hose fitting.

    Tighten

    Tighten the heater outlet hose fitting to 45 N.m (33 lb ft).

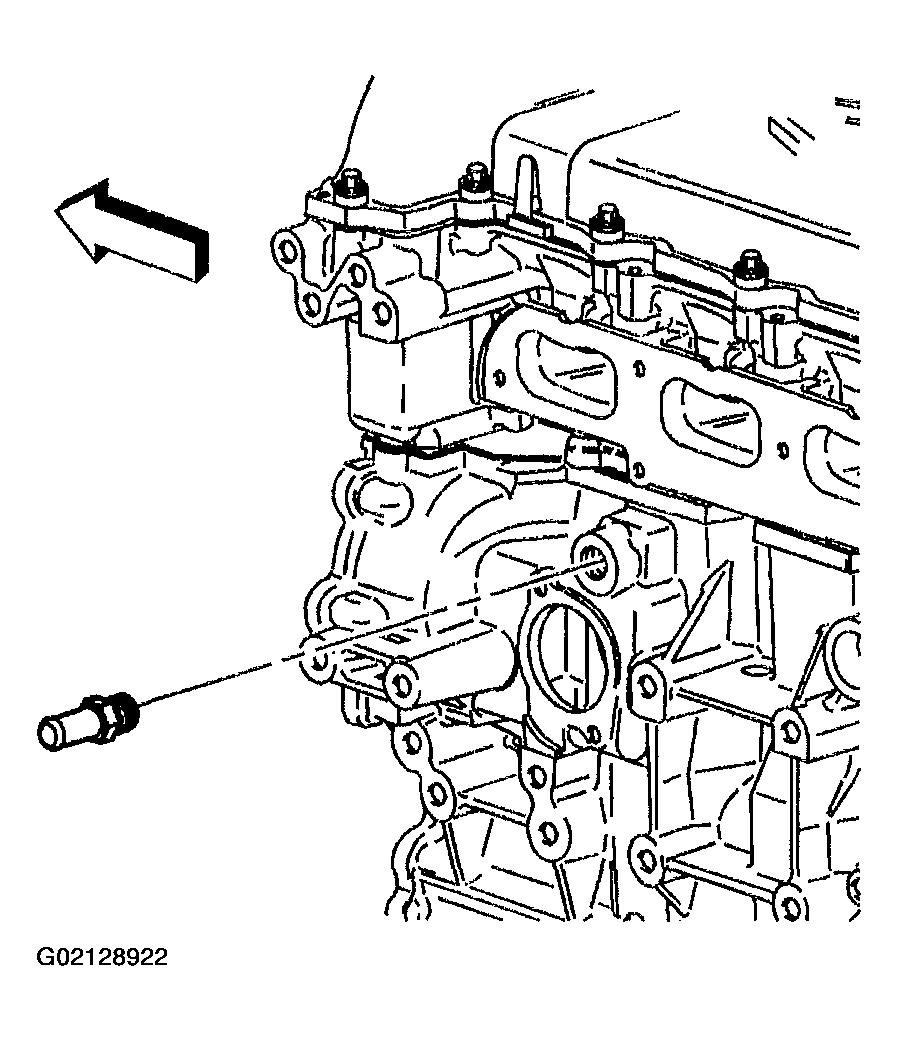

    Fig 1: Installing Heater Outlet Hose Fitting
    G02128922Courtesy of GENERAL MOTORS CORP.
