Exhaust Manifold Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield nuts.
  2. Remove the exhaust manifold heat shield.

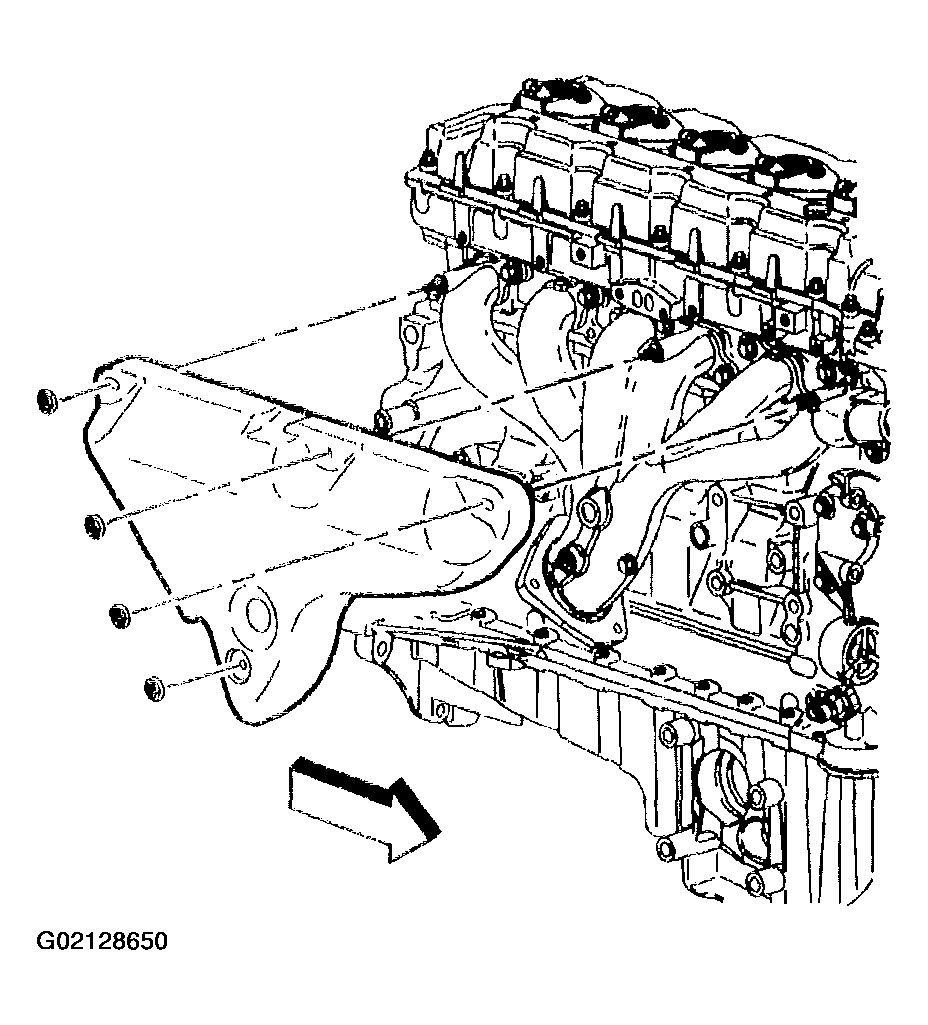

    Fig 1: Removing Exhaust Manifold Heat Shield
    G02128650Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust manifold studs. (if needed)

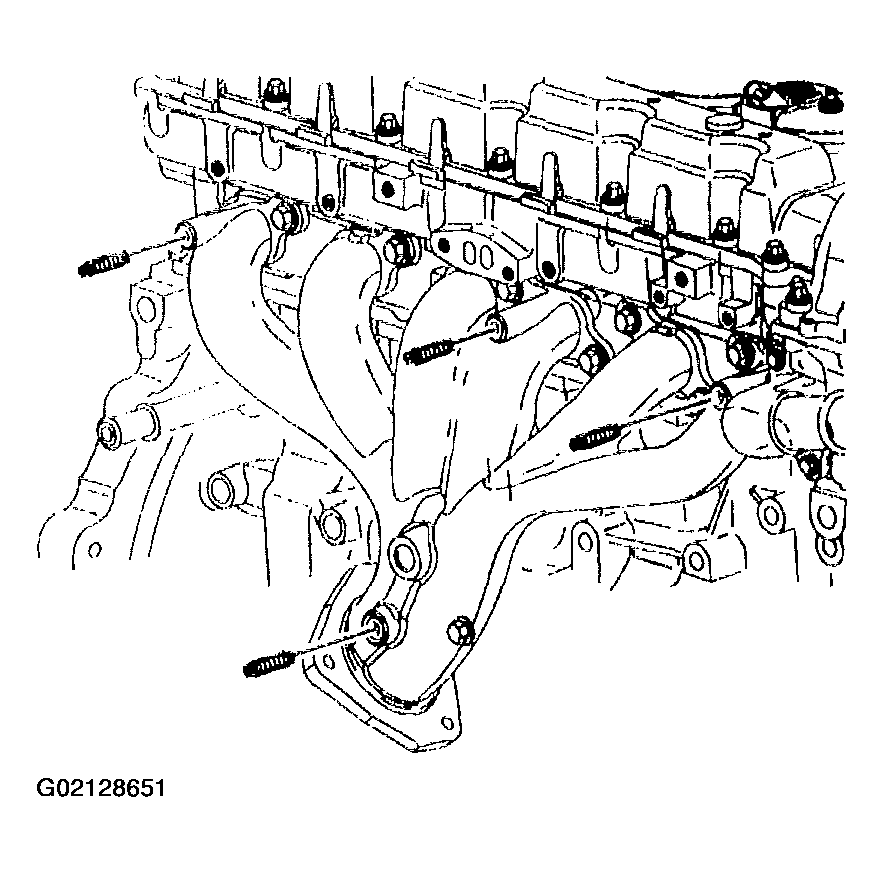

    Fig 2: Removing Exhaust Manifold Studs
    G02128651Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold bolts.
  5. Remove the exhaust manifold.

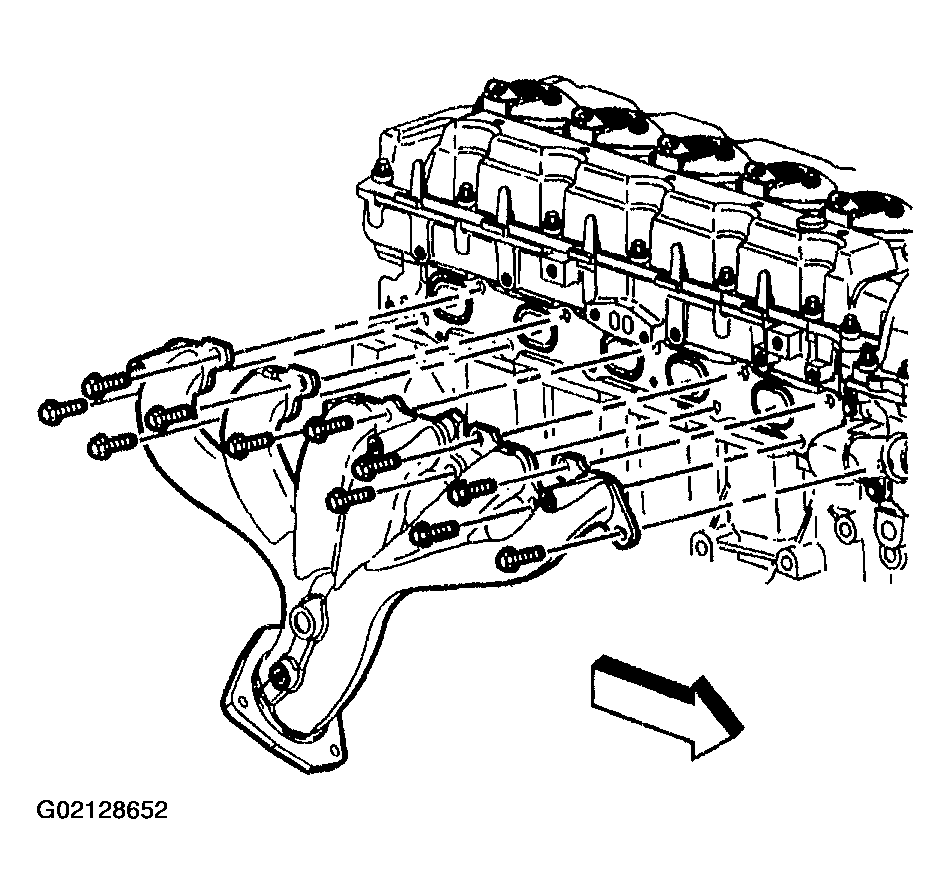

    Fig 3: Removing Exhaust Manifold
    G02128652Courtesy of GENERAL MOTORS CORP.
  6. Remove the exhaust manifold gasket.

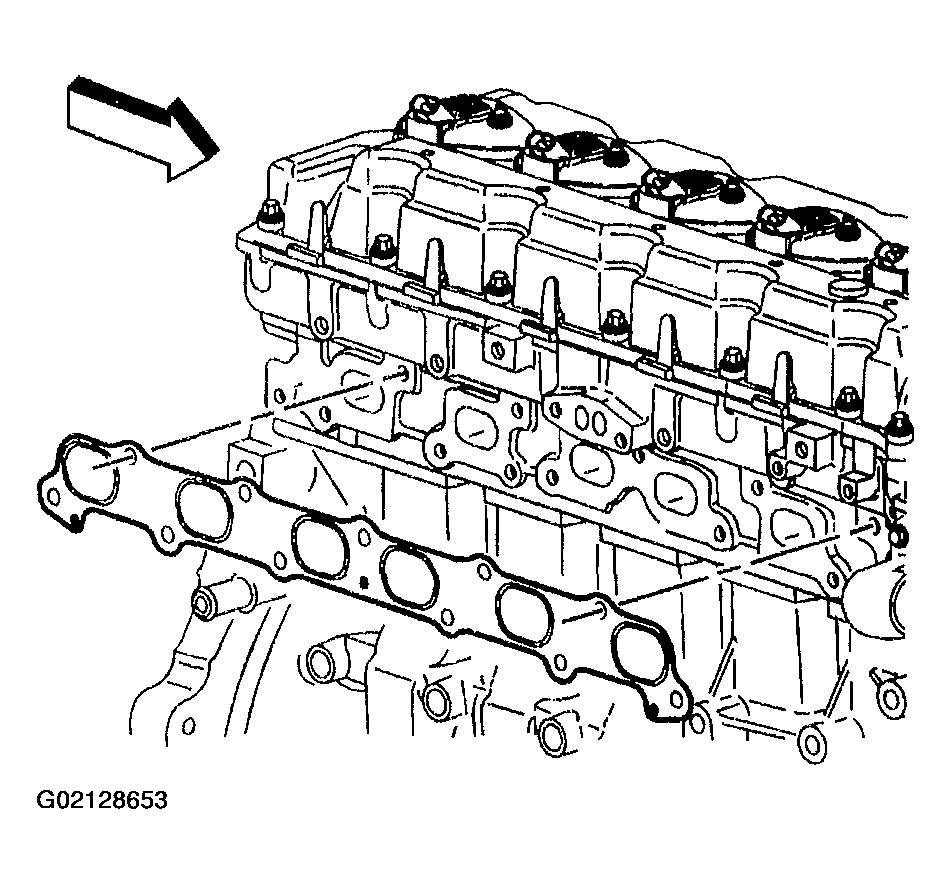

    Fig 4: Removing Exhaust Manifold Gasket
    G02128653Courtesy of GENERAL MOTORS CORP.
