Exhaust Manifold Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the exhaust manifold gasket.

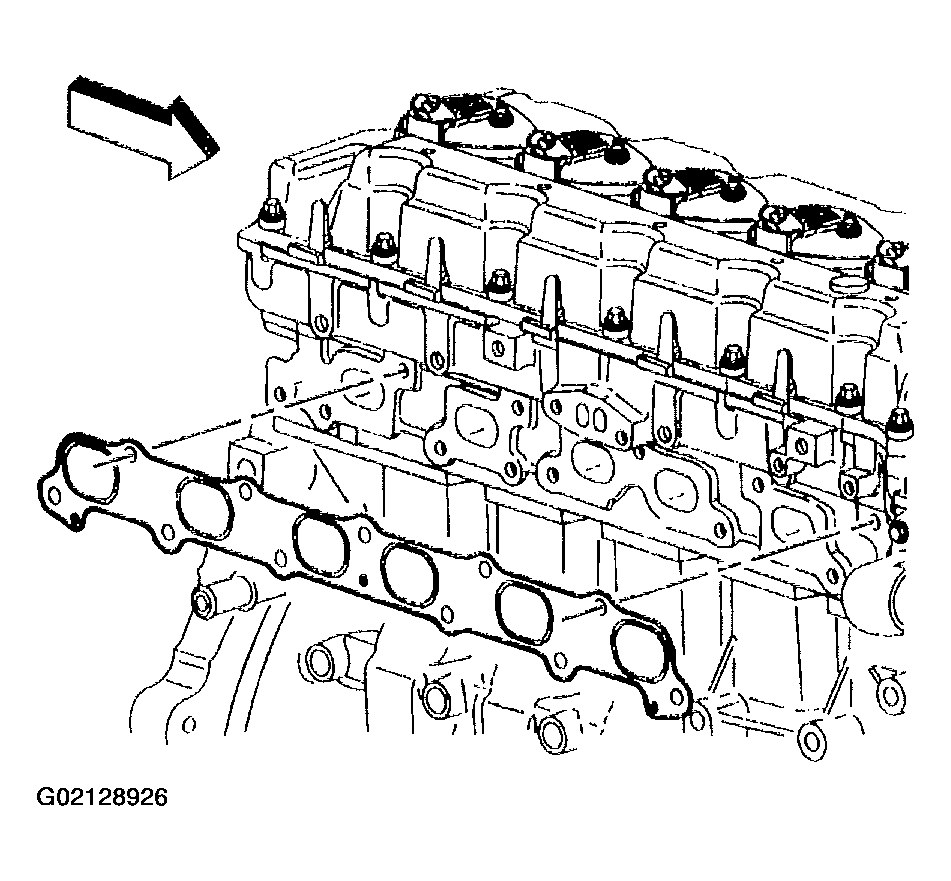

Fig 1: Installing Exhaust Manifold Gasket
Courtesy of GENERAL MOTORS CORP.
Install the exhaust manifold.
Add threadlock GM P/N United States 12345493, GM P/N Canada 10953488 to the exhaust manifold bolt threads.
Install the exhaust manifold bolts.

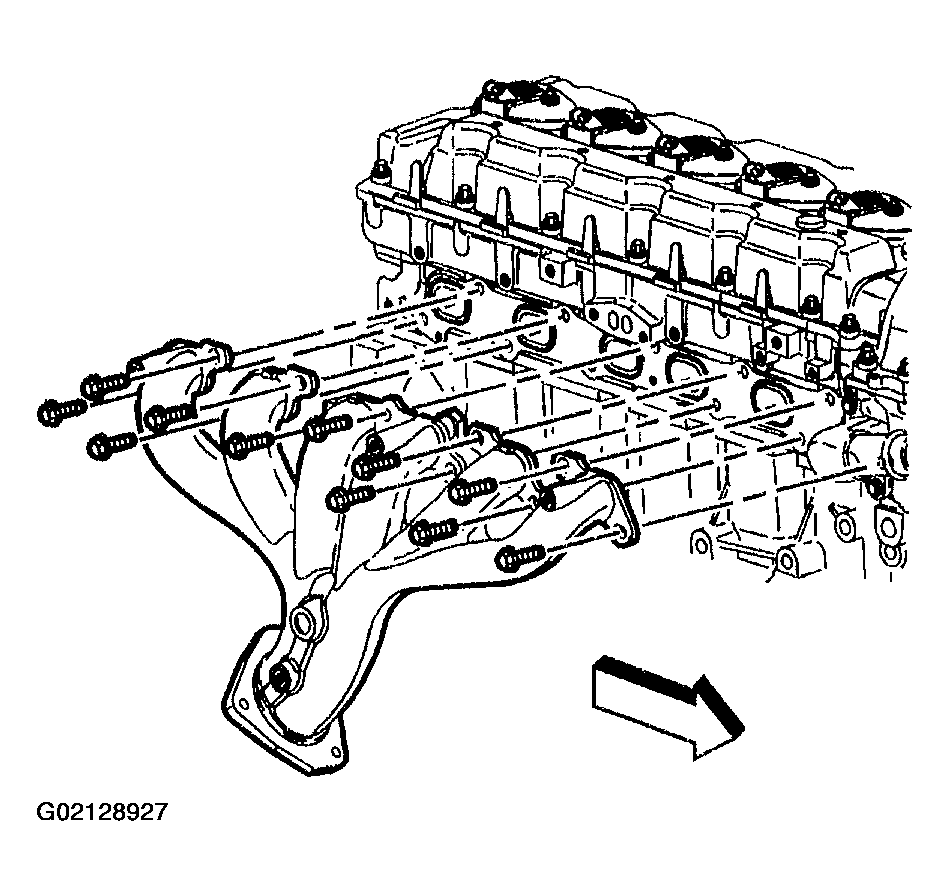

Fig 2: Installing Exhaust Manifold And Bolts
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Tighten the exhaust manifold bolts.
Tighten
1. 5.1. Tighten the exhaust manifold bolts a first pass in sequence to 20 N.m (15 lb ft).
2. 5.2. Tighten the exhaust manifold bolts a second pass in sequence to 20 N.m (15 lb ft).
3. 5.3. Tighten the exhaust manifold bolts a final pass in sequence to 20 N.m (15 lb ft).

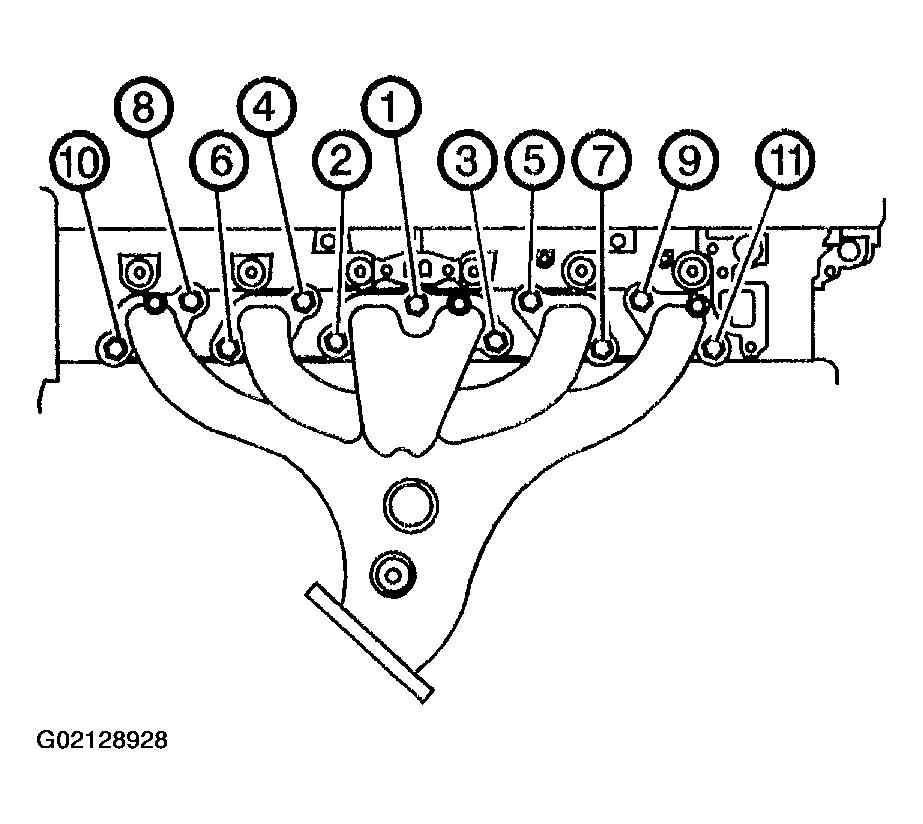

  Fig 3: Tightening Sequence Of Exhaust Manifold Bolts
  Courtesy of GENERAL MOTORS CORP.
Install the exhaust manifold heat shield studs (if required).
Tighten

Tighten the exhaust manifold heat shield studs to 10 N.m (89 lb in).

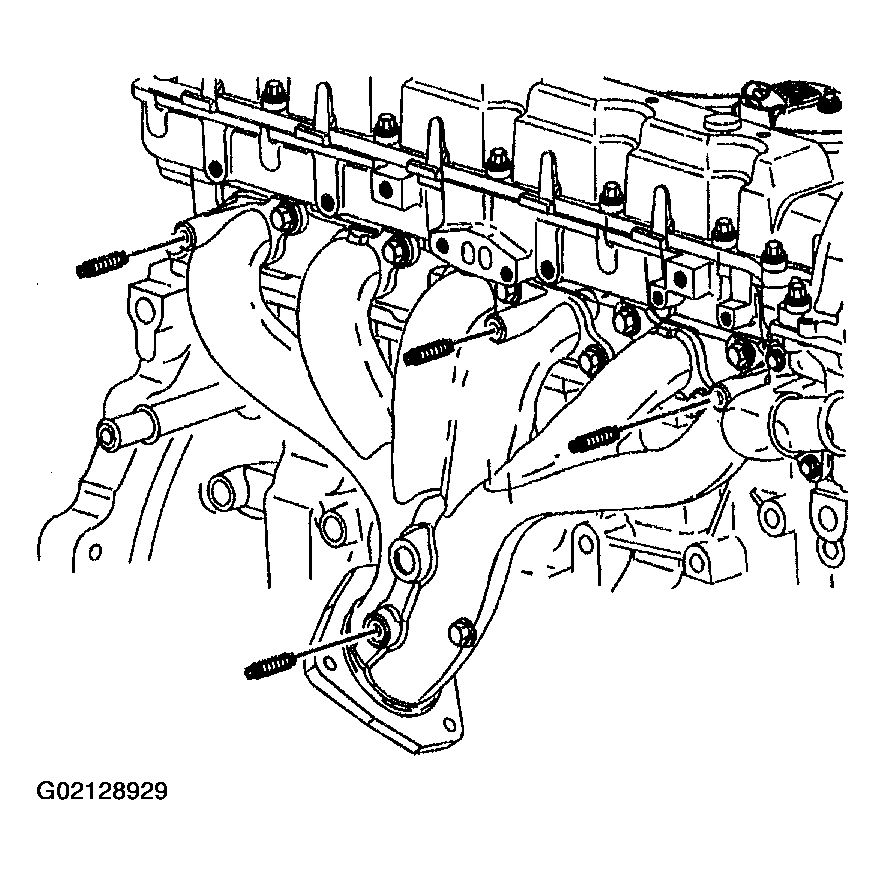

Fig 4: Installing Exhaust Manifold Heat Shield Studs
Courtesy of GENERAL MOTORS CORP.
Install the exhaust manifold heat shield.
Add anti-seize GM P/N United States 12371386, GM P/N Canada 993128 to the exhaust manifold heat shield nuts.
Install the exhaust manifold heat shield nuts.
Tighten

Tighten the exhaust manifold heat shield nuts to 10 N.m (89 lb in).

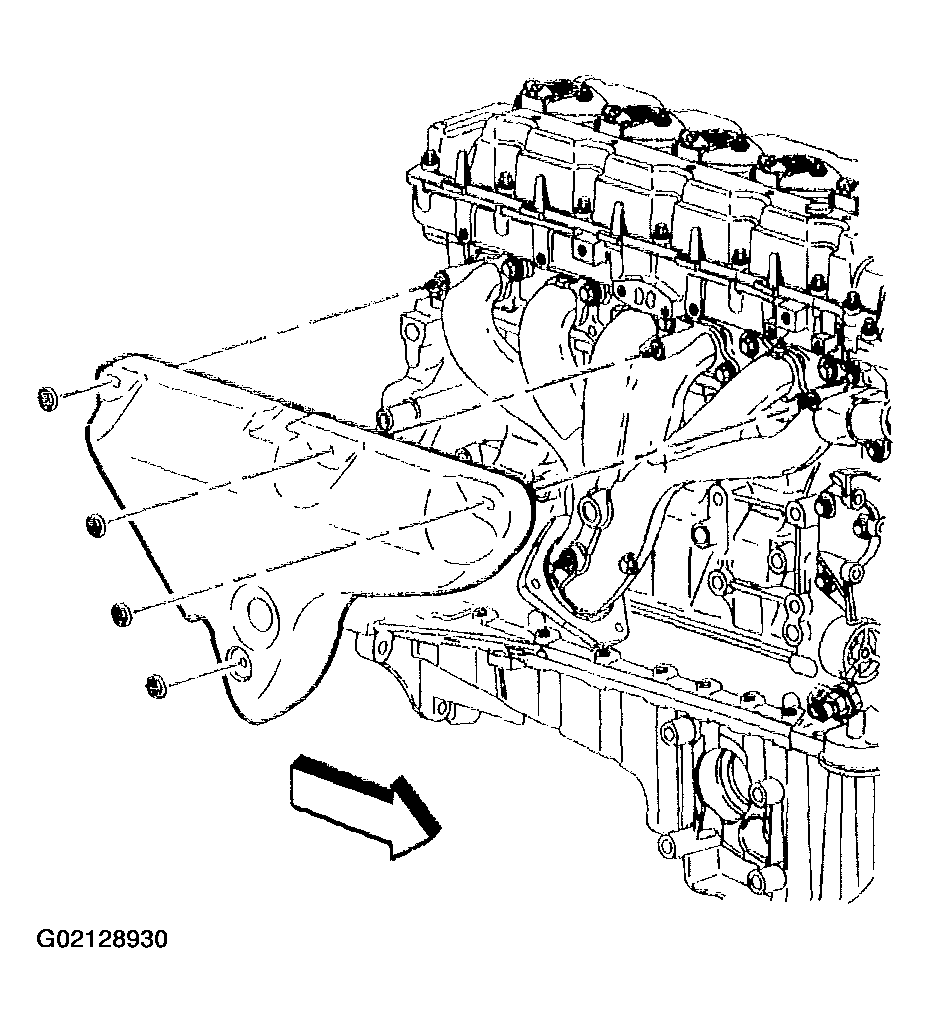

Fig 5: Installing Exhaust Manifold Heat Shield & Nuts
Courtesy of GENERAL MOTORS CORP.
