Exhaust Manifold Cleaning and Inspection

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Clean the exhaust manifold.
Inspect the exhaust manifold for cracks or damage.
Inspect the exhaust manifold threads and studs (if necessary).

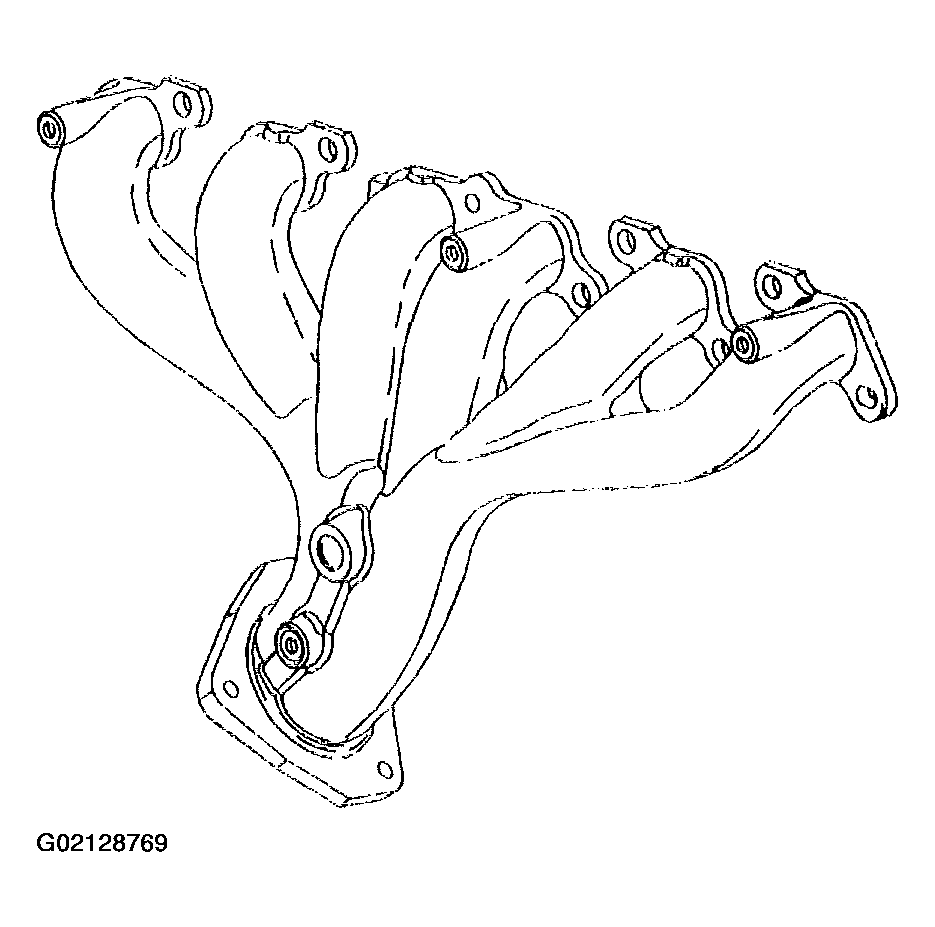

Fig 1: Inspecting Exhaust Manifold
Courtesy of GENERAL MOTORS CORP.
Check the exhaust manifold mating surface for flatness. Use a straight edge and a feeler gauge.
Replace the exhaust manifold if necessary.

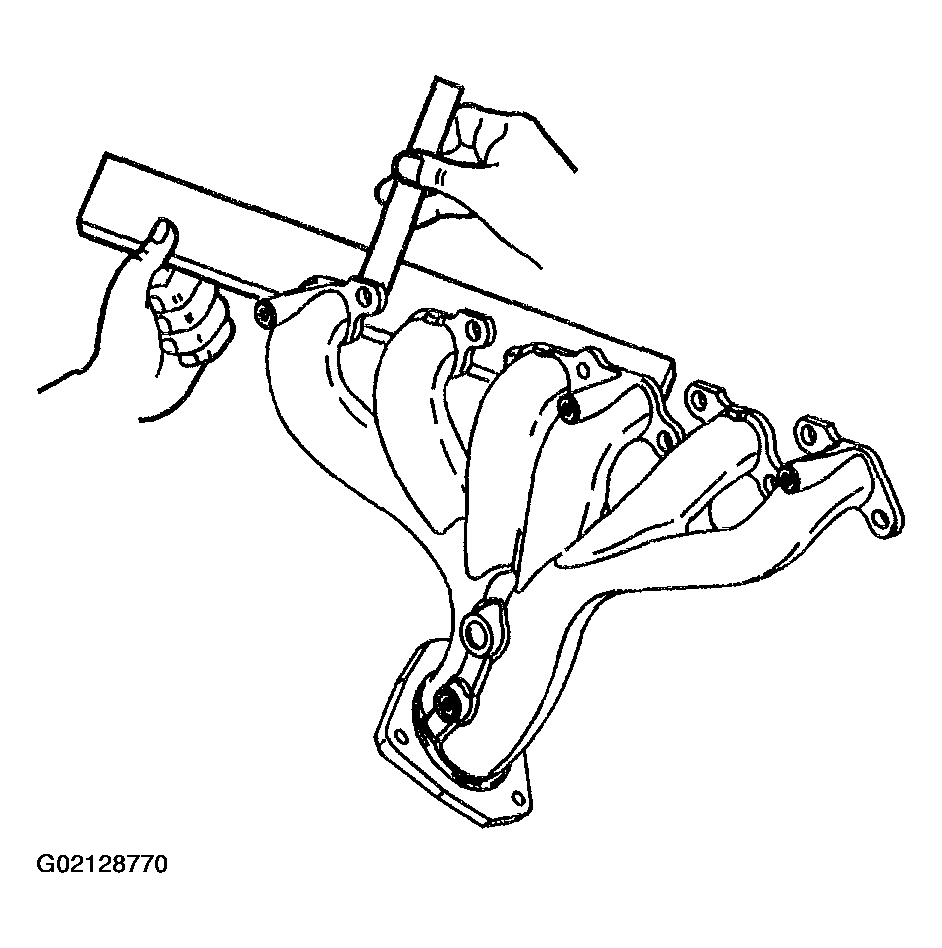

Fig 2: Checking Exhaust Manifold Mating Surface For Flatness
Courtesy of GENERAL MOTORS CORP.
