Engine Lift Bracket Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine lift bracket bolts.
  2. Remove the engine lift bracket.

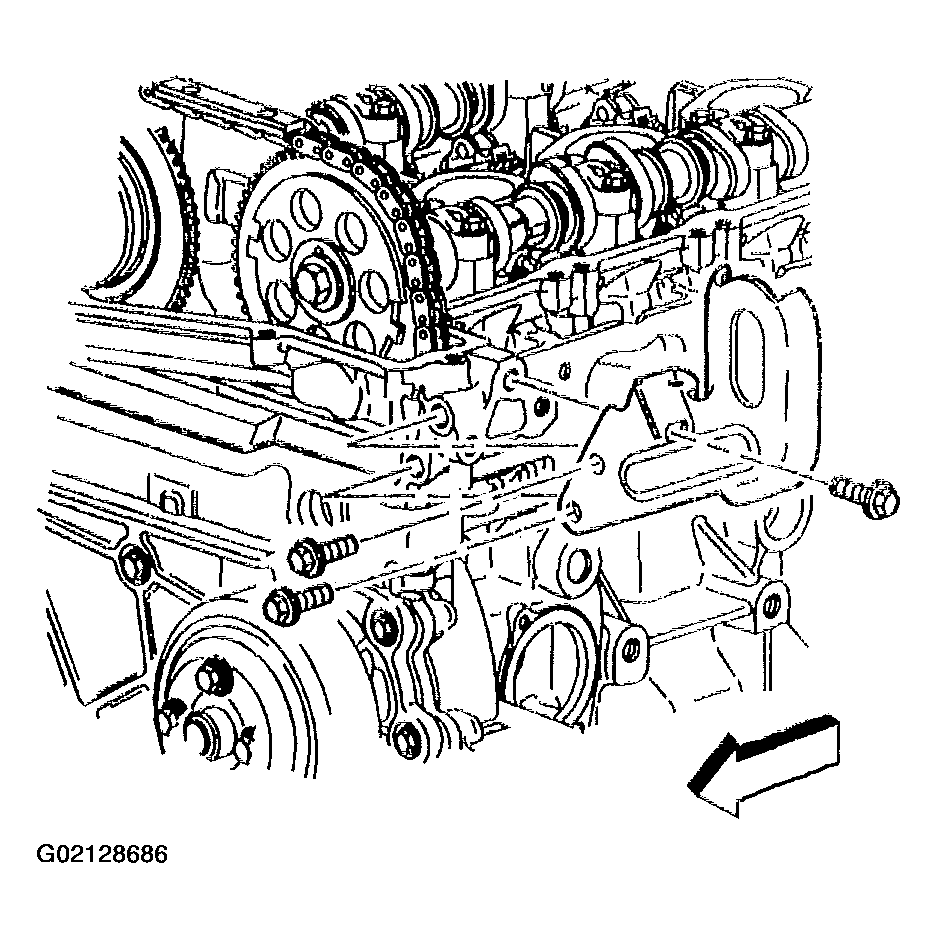

    Fig 1: Removing Engine Lift Bracket & Bolts
    G02128686Courtesy of GENERAL MOTORS CORP.
