Engine Lift Bracket Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine lift bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine lift bracket bolts in sequence.

    Tighten

    Tighten the engine lift bracket bolts in sequence to 50 N.m (37 lb ft)

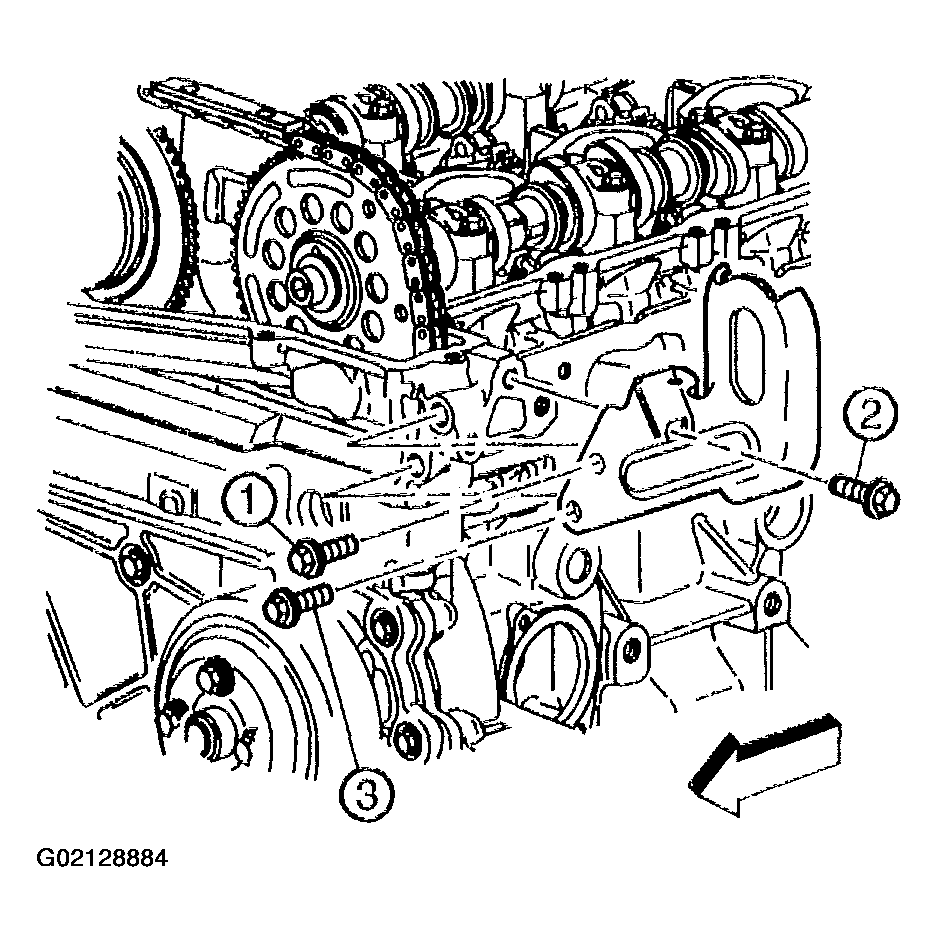

    Fig 1: Tightening Sequence Of Engine Lift Bracket Bolts
    G02128884Courtesy of GENERAL MOTORS CORP.
