Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 7 mm center bolt (1) first.
  2. Remove the engine front cover bolts.
  3. Remove the engine front cover.

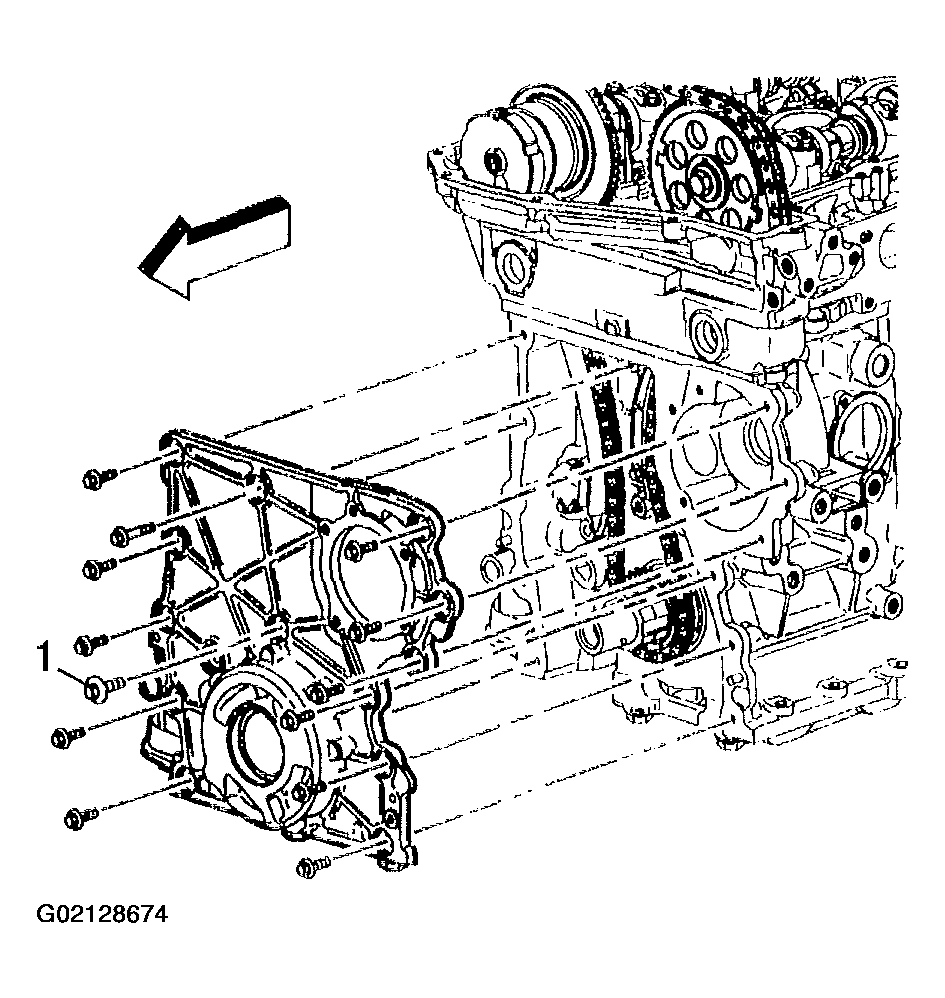

    Fig 1: Removing Engine Front Cover
    G02128674Courtesy of GENERAL MOTORS CORP.
  4. Remove the spacer bolt.
  5. Remove the crankshaft balancer friction washer from the crankshaft snout.

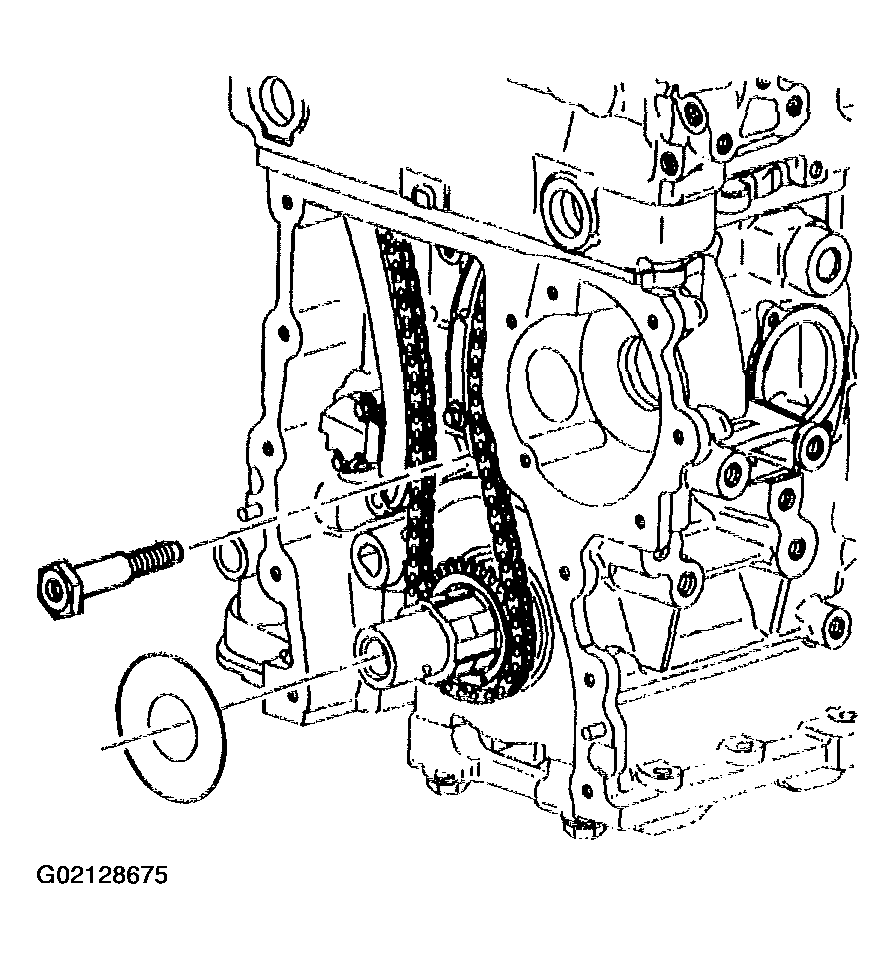

    Fig 2: Removing Spacer Bolt And Crankshaft Balancer Friction Washer
    G02128675Courtesy of GENERAL MOTORS CORP.
