Engine Block Plug Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine block oil gallery plugs.

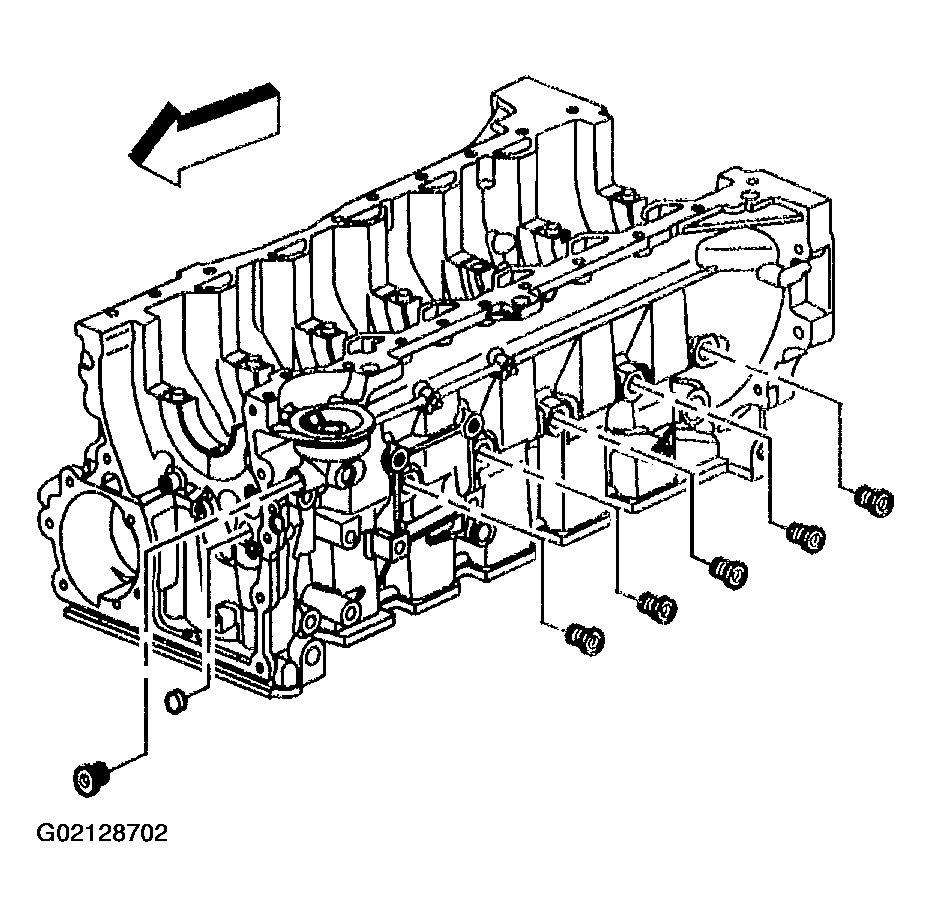

Fig 1: Removing Engine Block Oil Gallery Plugs
Courtesy of GENERAL MOTORS CORP.
Remove the engine block oil gallery plug from rear of block.

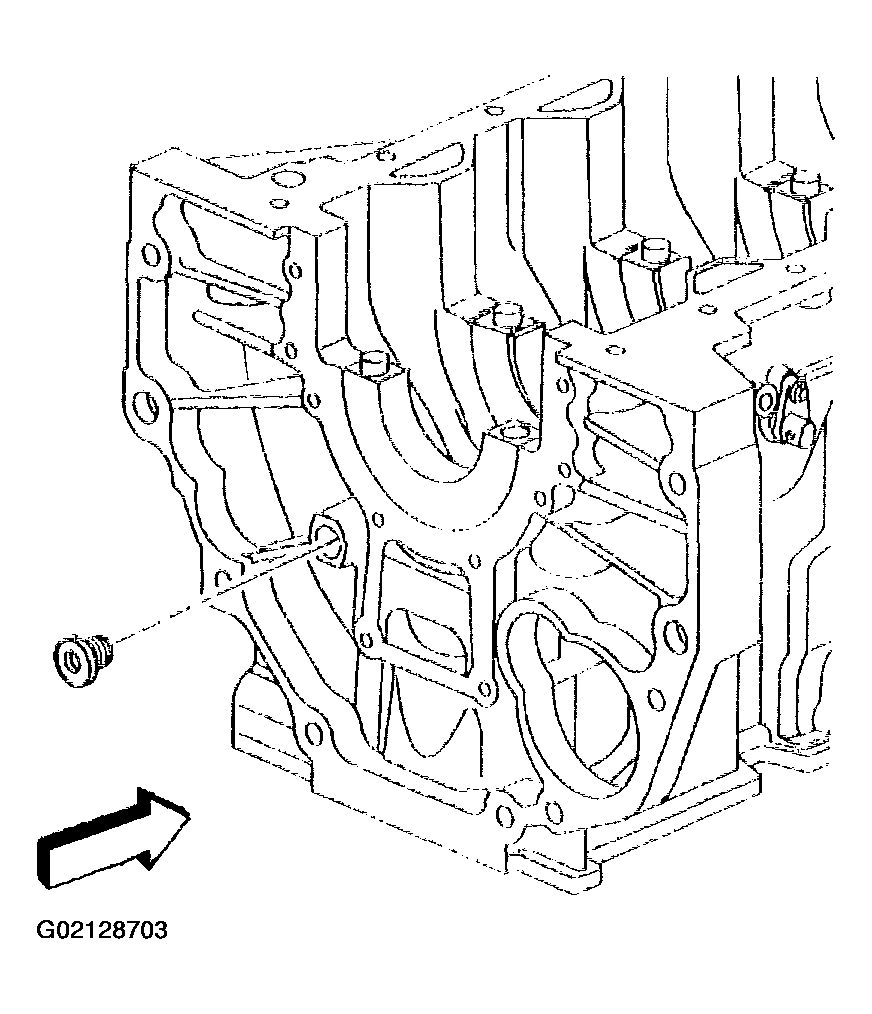

Fig 2: Removing Engine Block Oil Gallery Plug From Rear Of Block
Courtesy of GENERAL MOTORS CORP.
Remove the crankshaft position sensor.

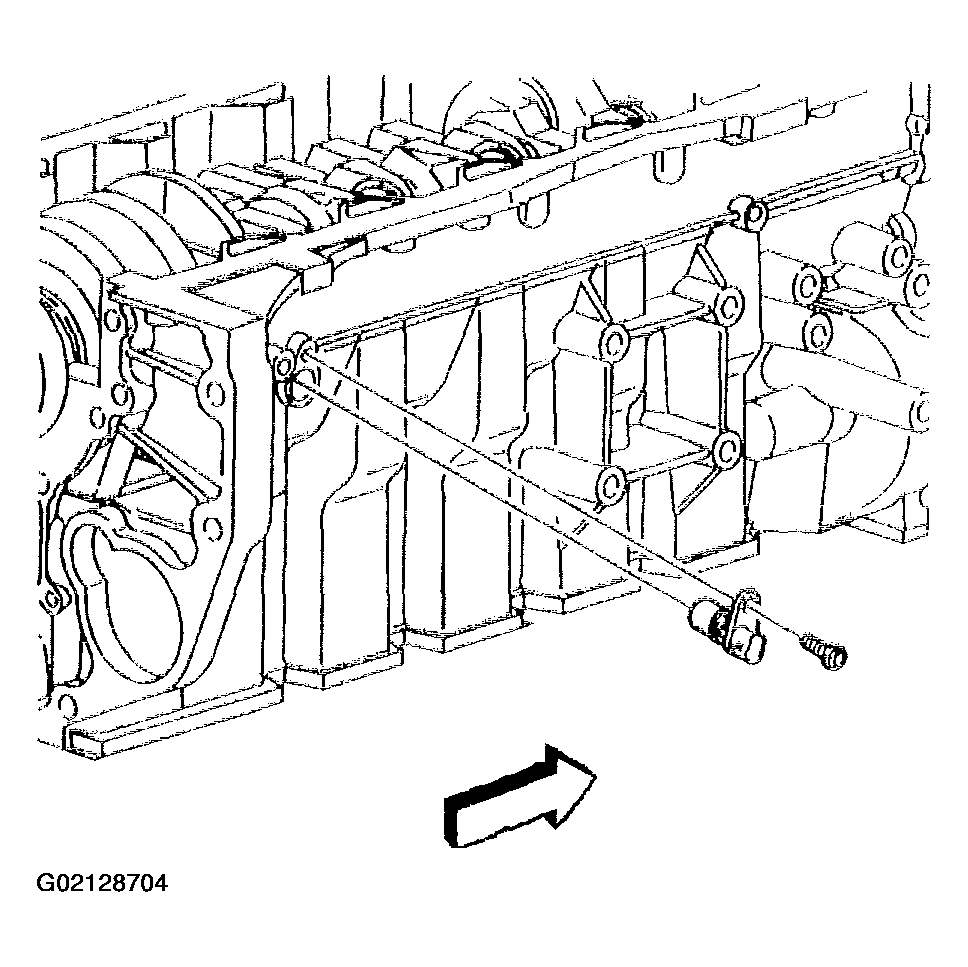

Fig 3: Removing Crankshaft Position Sensor
Courtesy of GENERAL MOTORS CORP.
Remove the knock sensors.

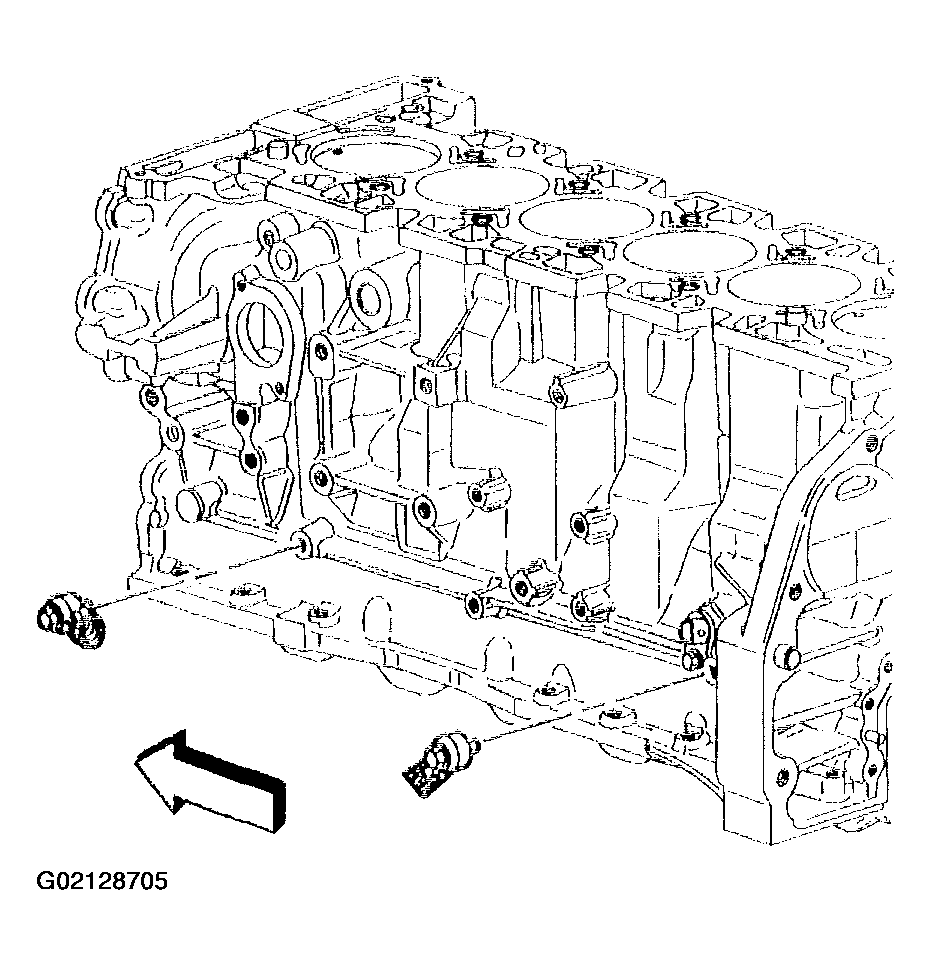

Fig 4: Removing Knock Sensors
Courtesy of GENERAL MOTORS CORP.
Remove the EVAP solenoid.

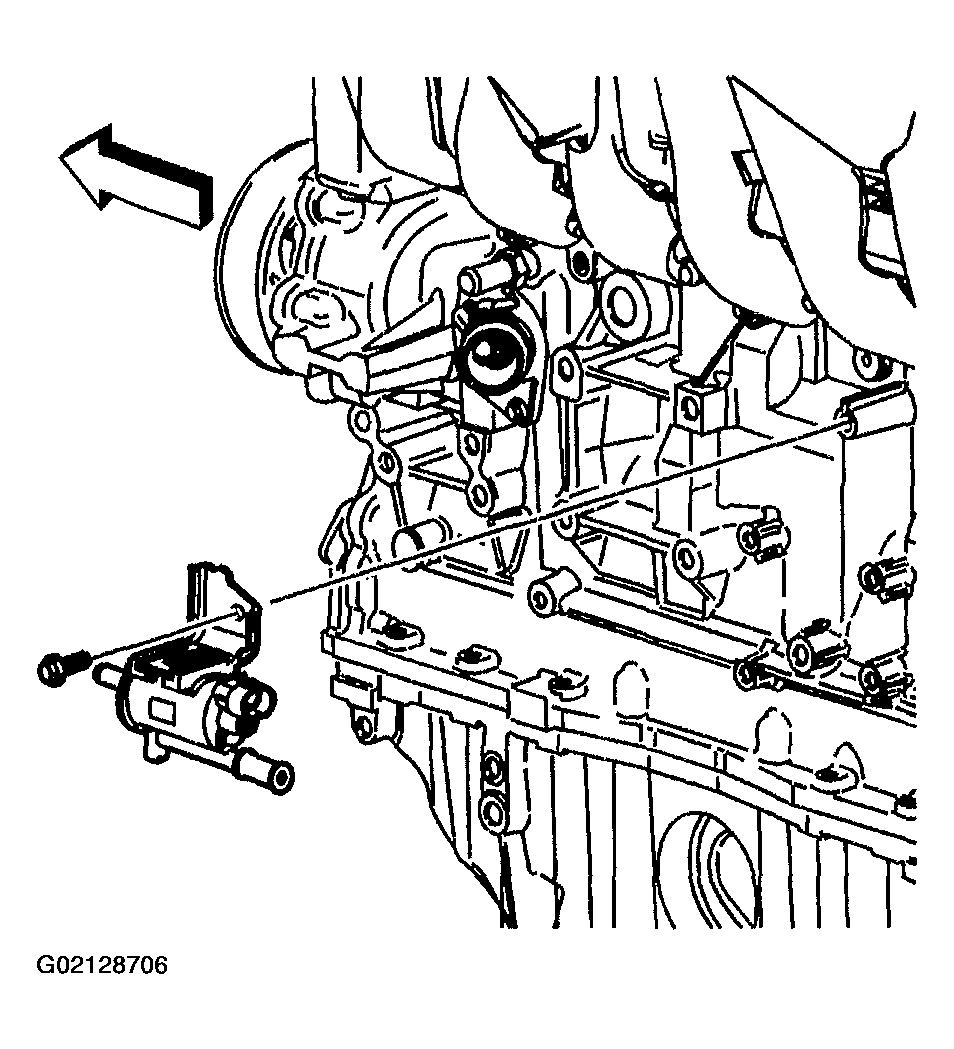

Fig 5: Removing EVAP Solenoid
Courtesy of GENERAL MOTORS CORP.
Remove the coolant temperature sensor.

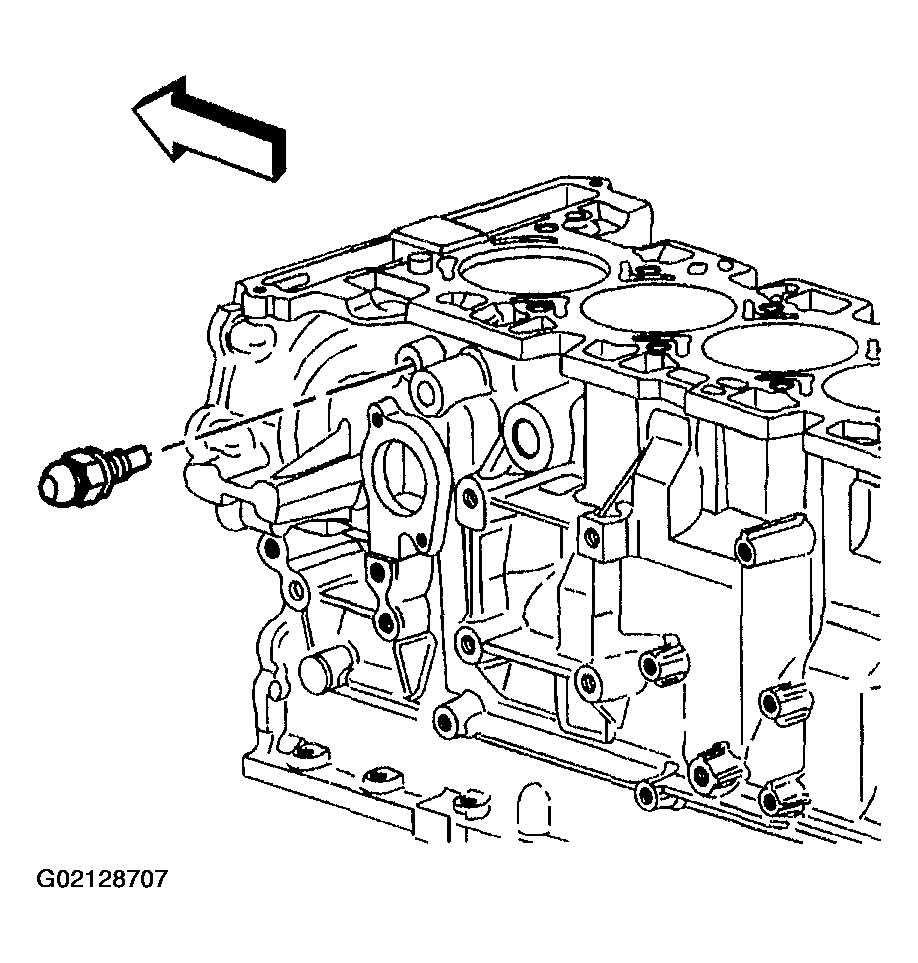

Fig 6: Removing Coolant Temperature Sensor
Courtesy of GENERAL MOTORS CORP.
