Drive Belt Tensioner Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the drive belt tensioner bolt.

    Tighten

    Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).

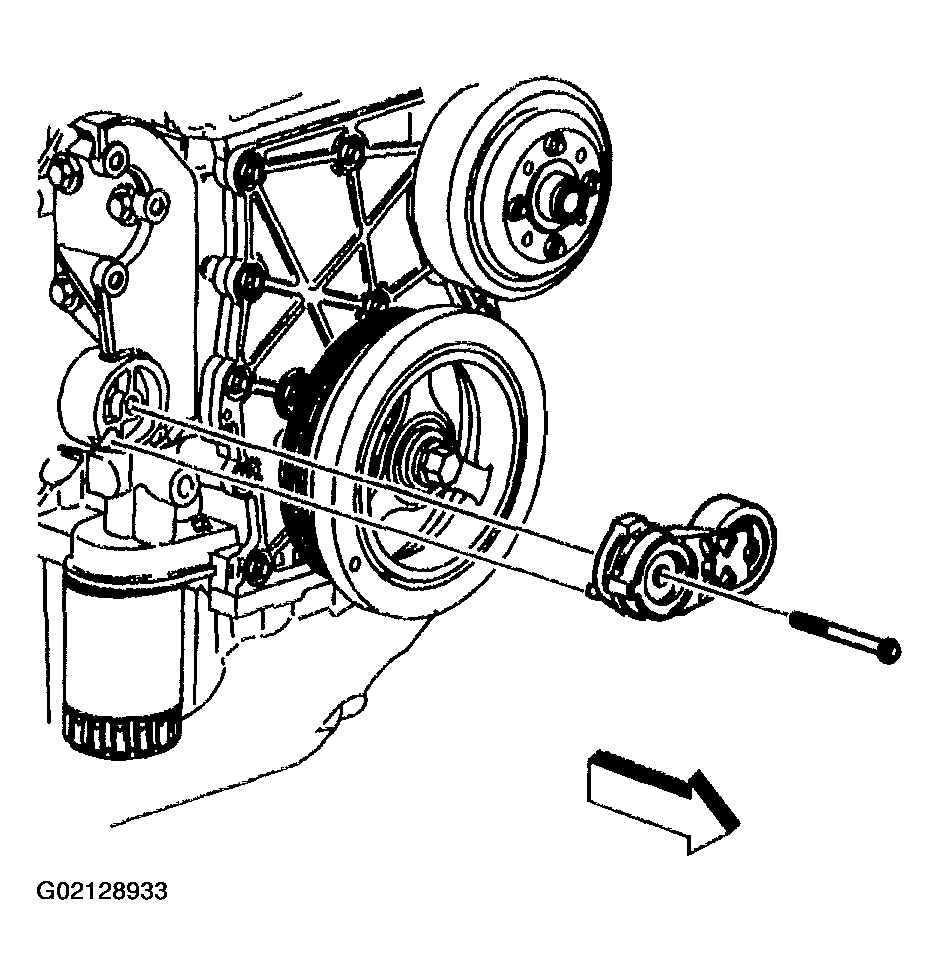

    Fig 1: Installing Drive Belt Tensioner And Bolt
    G02128933Courtesy of GENERAL MOTORS CORP.
