Drive Belt Idler Pulley Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the drive belt idler pulley bolts.

    Tighten

    Tighten the drive belt idler pulley bolts to 50 N.m (37 lb ft).

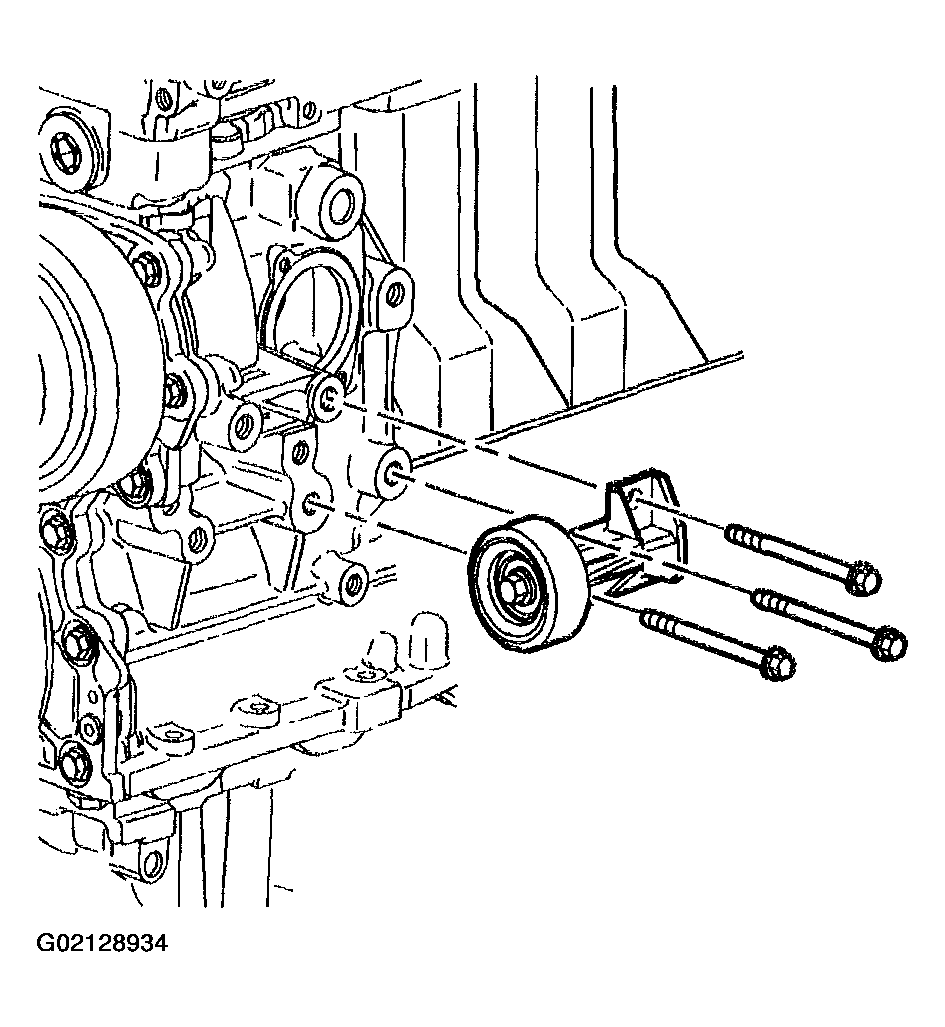

    Fig 1: Installing Drive Belt Idler Pulley And Bolts
    G02128934Courtesy of GENERAL MOTORS CORP.
