Crankshaft Balancer Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required:

J 41816-2 Crankshaft End Protector

Remove the crankshaft balancer bolt.

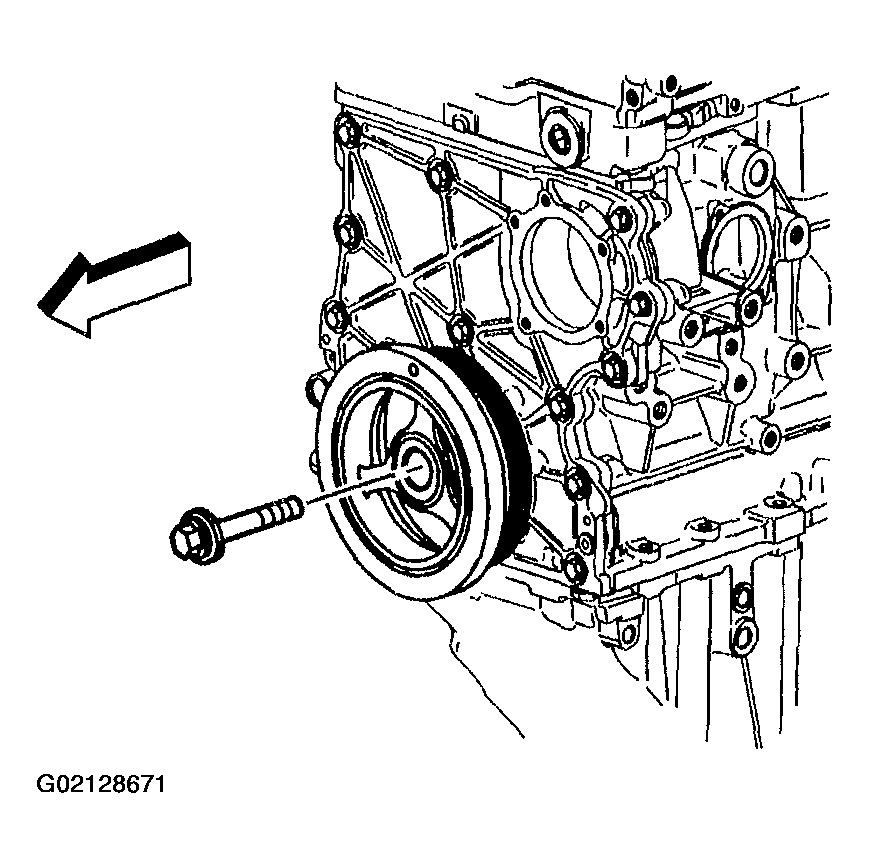

Fig 1: Removing Crankshaft Balancer Bolt
Courtesy of GENERAL MOTORS CORP.
Install J 41816-2 into the end of the crankshaft.
IMPORTANT: Do not pull on outer edge of the crankshaft balancer.
Use a three jaw puller to remove the crankshaft balancer.
Remove J 41816-2.

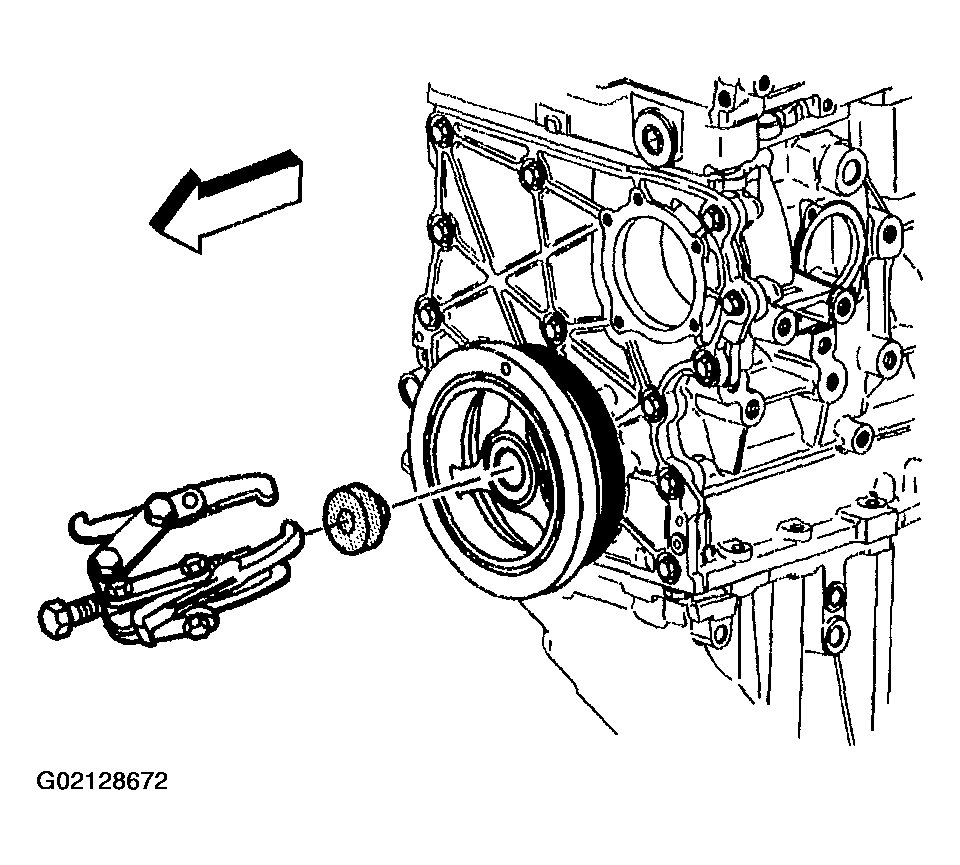

Fig 2: Removing Crankshaft Balancer
Courtesy of GENERAL MOTORS CORP.
