Camshaft Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft cap bolts.
    IMPORTANT: Place the camshaft caps in a rack to ensure the caps are installed in the same location from which they were removed.
  2. Remove the camshaft caps.

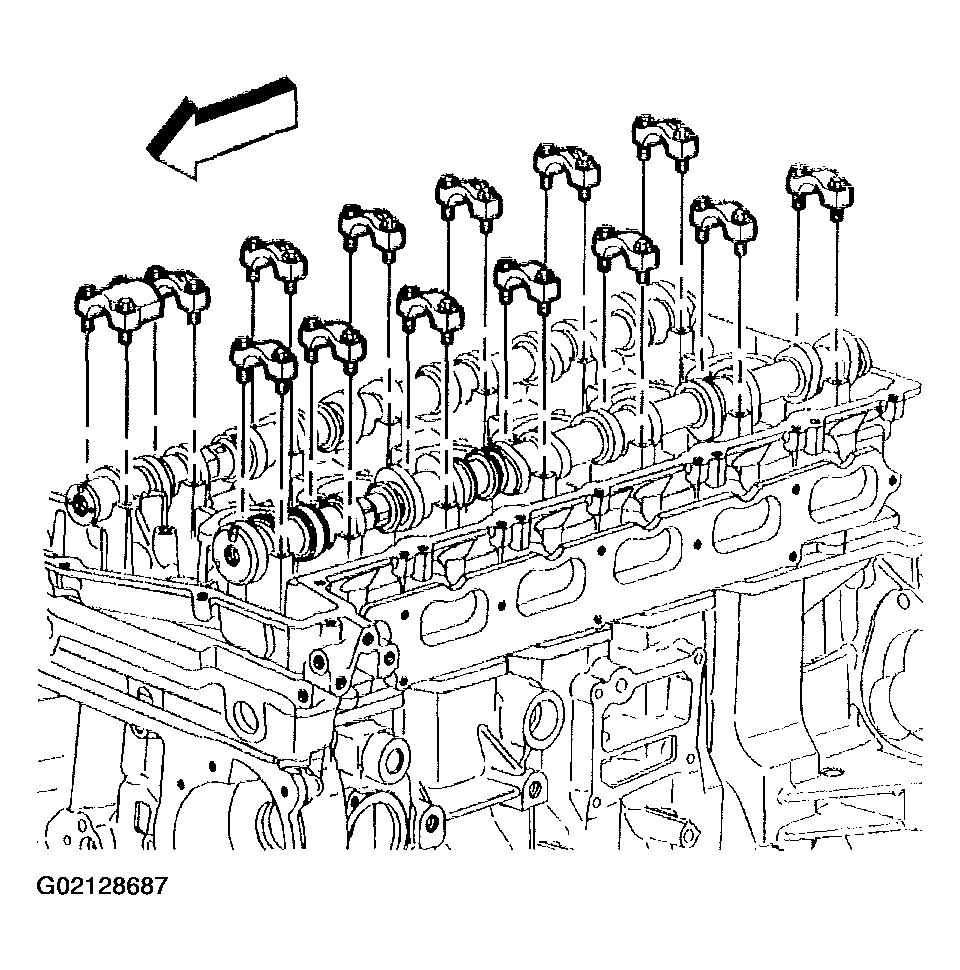

    Fig 1: Removing Camshaft Caps
    G02128687Courtesy of GENERAL MOTORS CORP.
  3. Remove the camshafts.

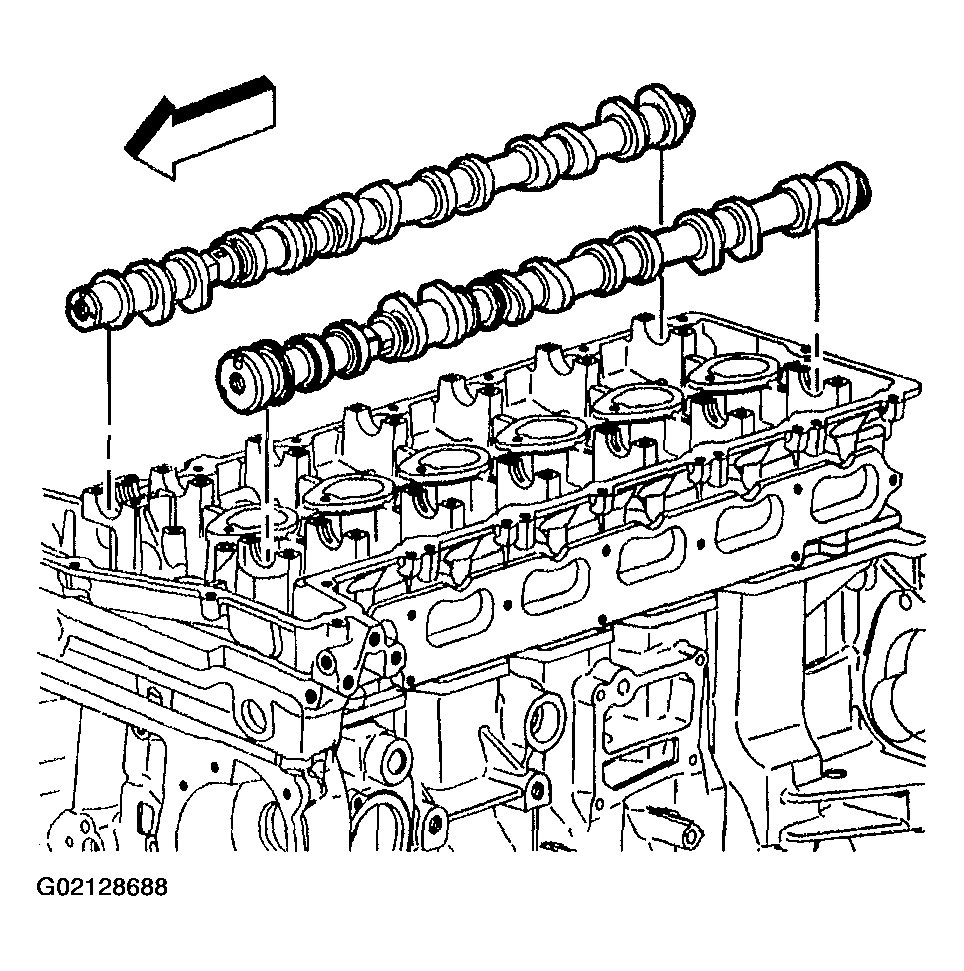

    Fig 2: Removing Camshafts
    G02128688Courtesy of GENERAL MOTORS CORP.
