Camshaft Position Actuator Valve Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft position actuator valve bolt.
  2. Remove the camshaft position actuator valve.

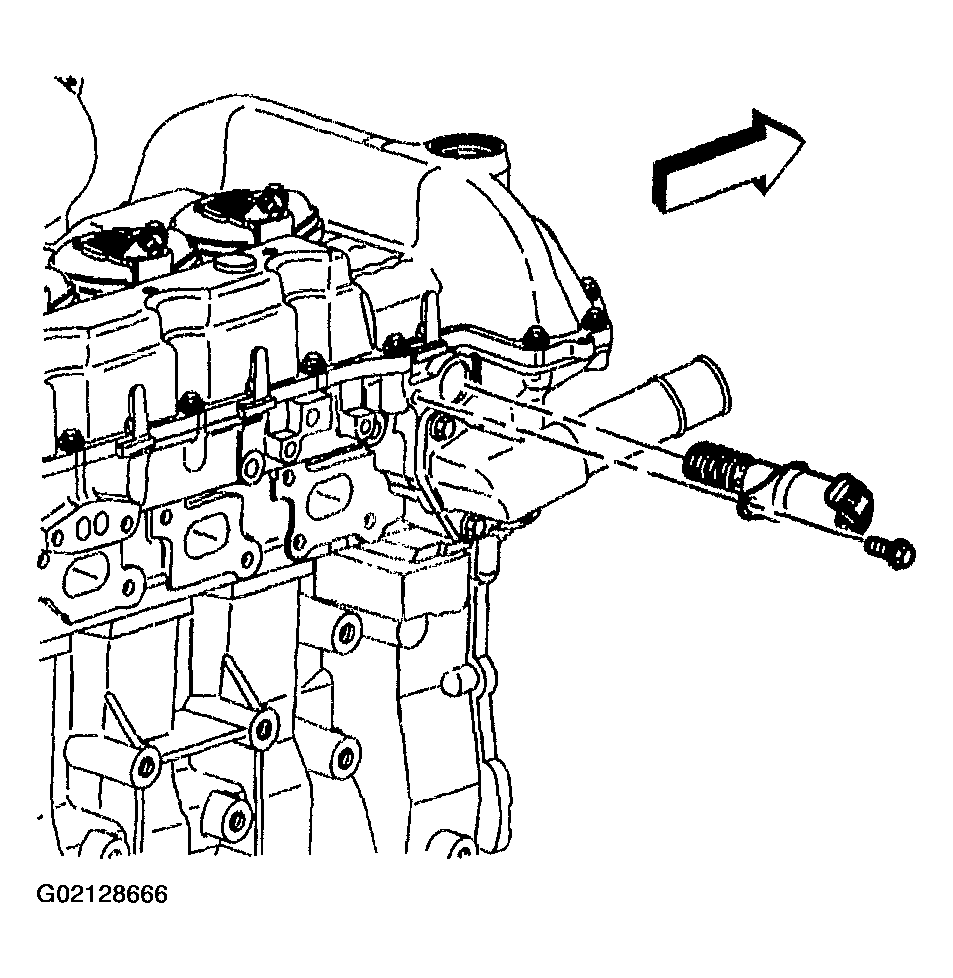

    Fig 1: Removing Camshaft Position Actuator Valve
    G02128666Courtesy of GENERAL MOTORS CORP.
