Camshaft Position Actuator Valve Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply clean engine oil to the camshaft position actuator valve hole.
  2. Install the camshaft position actuator valve.
  3. Add sealant GM P/N United States 12346004, GM P/N Canada 10953480 to the camshaft position actuator valve bolt threads.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the camshaft position actuator valve bolt.

    Tighten

    Tighten the camshaft position actuator valve bolt to 10 N.m (89 lb in).

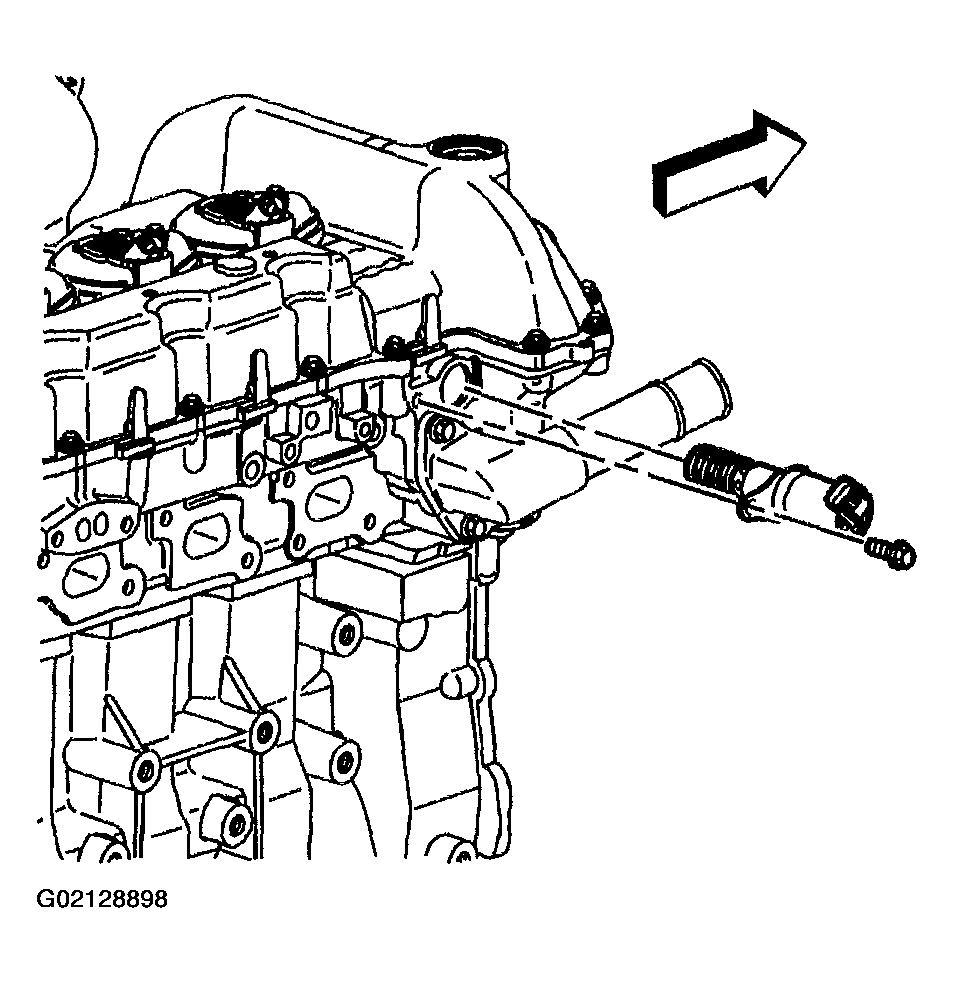

    Fig 1: Installing Camshaft Position Actuator Valve Bolt
    G02128898Courtesy of GENERAL MOTORS CORP.
